Timing Components

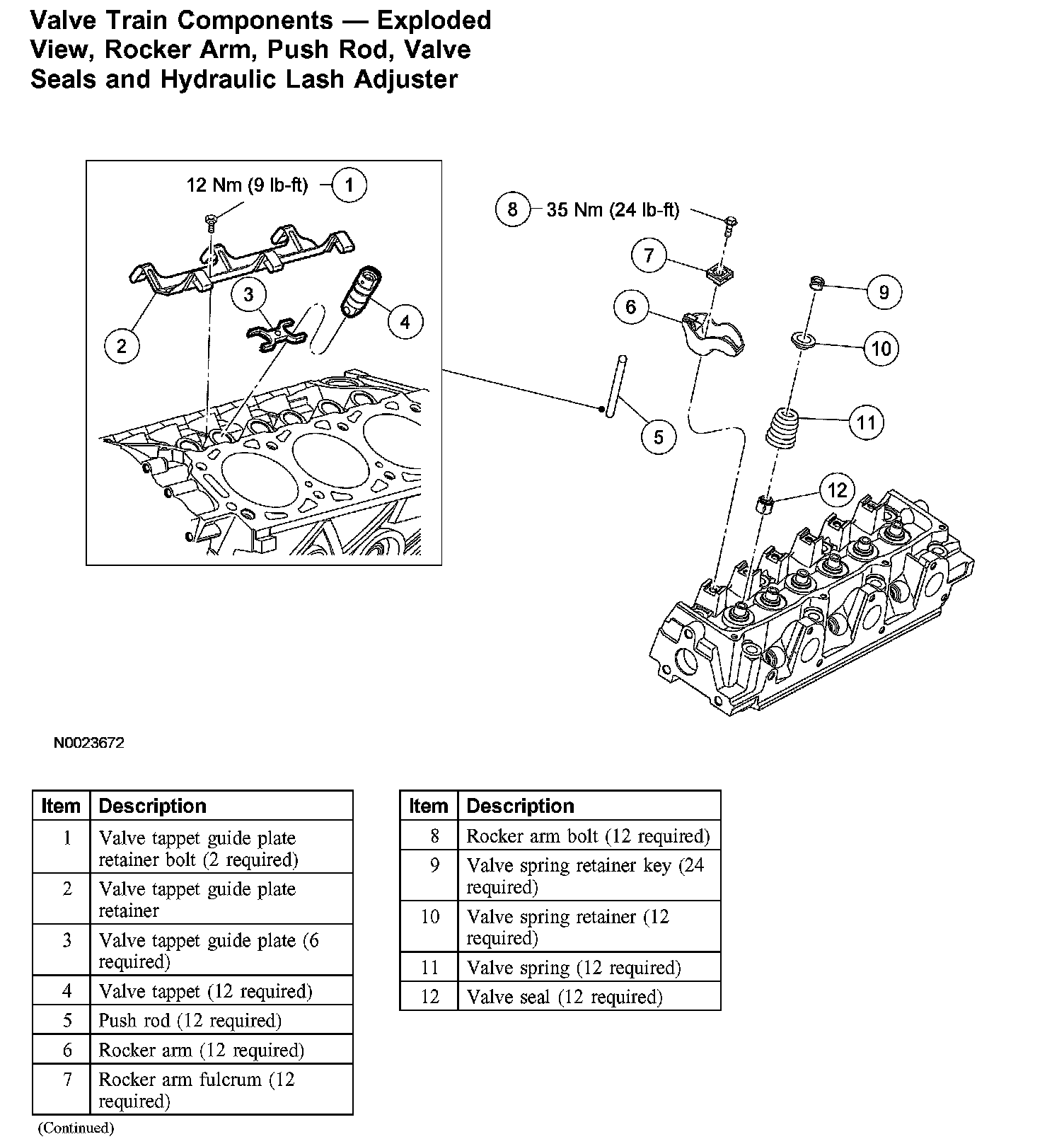

Valve Train Components - Exploded View, Rocker Arm, Push Rod, Valve Seals and Hydraulic Lash Adjuster

Valve Train Components - Exploded View, Rocker Arm, Push Rod, Valve Seals and Hydraulic Lash Adjuster:
