Engine Lubrication

Engine Lubrication Components - Exploded View, Oil Pan, Oil Pan Baffle and Oil Pump

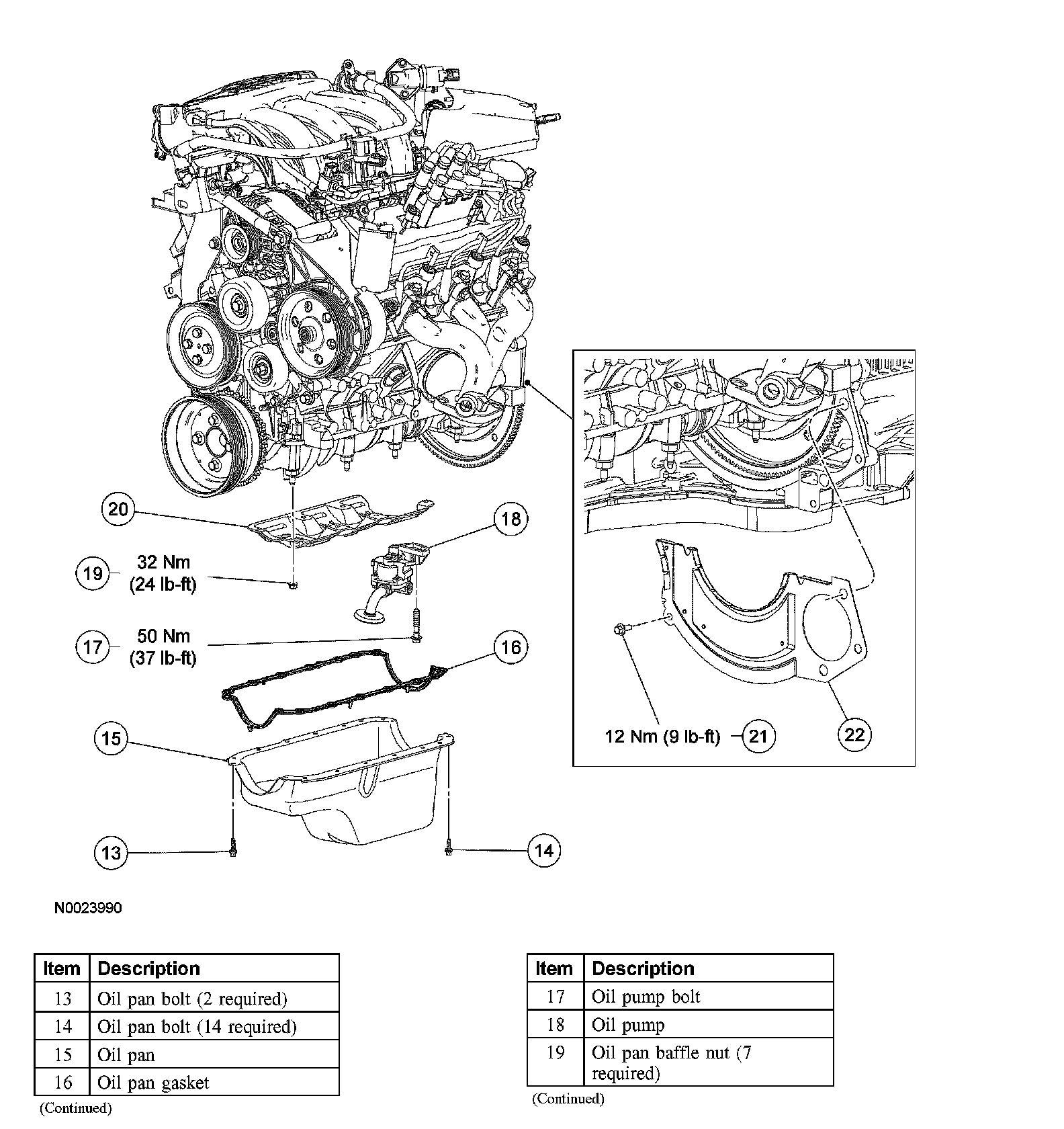

Engine Lubrication Components - Exploded View, Oil Pan, Oil Pan Baffle and Oil Pump:

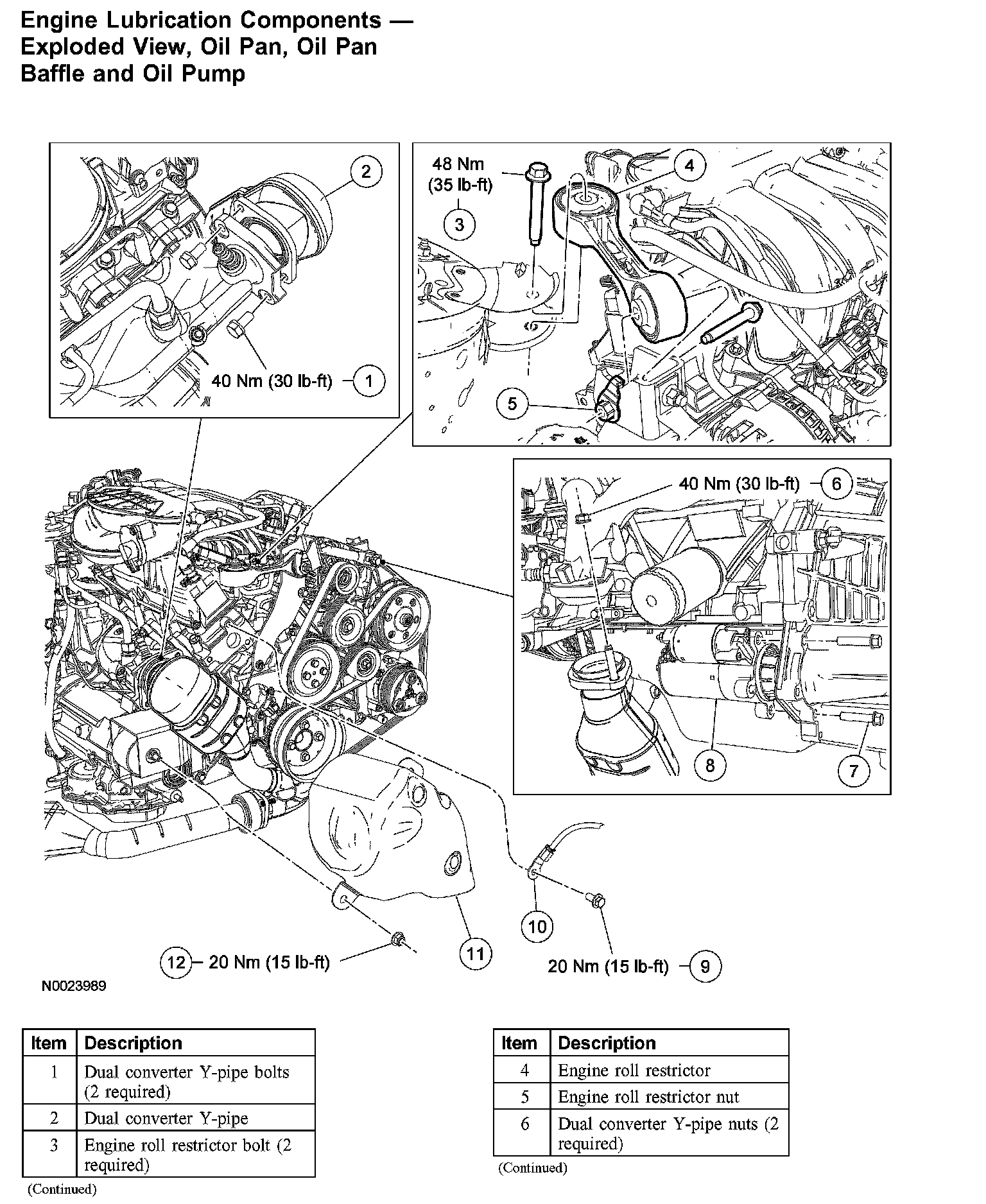

Engine Lubrication Components - Exploded View, Oil Pan, Oil Pan Baffle and Oil Pump:

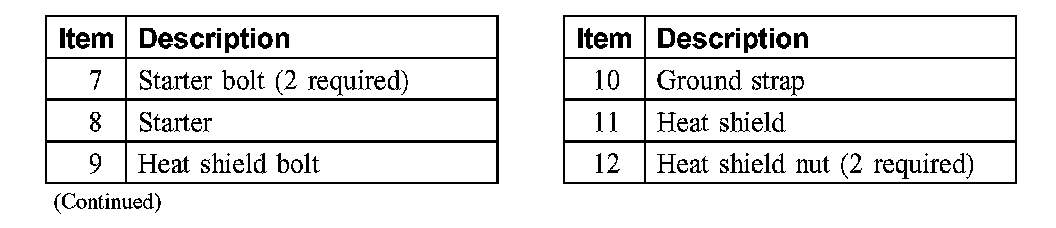

Engine Lubrication Components - Exploded View, Oil Pan, Oil Pan Baffle and Oil Pump:

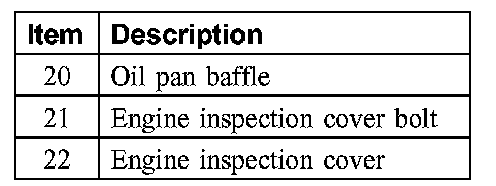

Engine Lubrication Components - Exploded View, Oil Pan, Oil Pan Baffle and Oil Pump:
