Home >> Ford >> 2006 >> Taurus V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> Rear Control Unit (RCU)

Rear Control Unit (RCU)

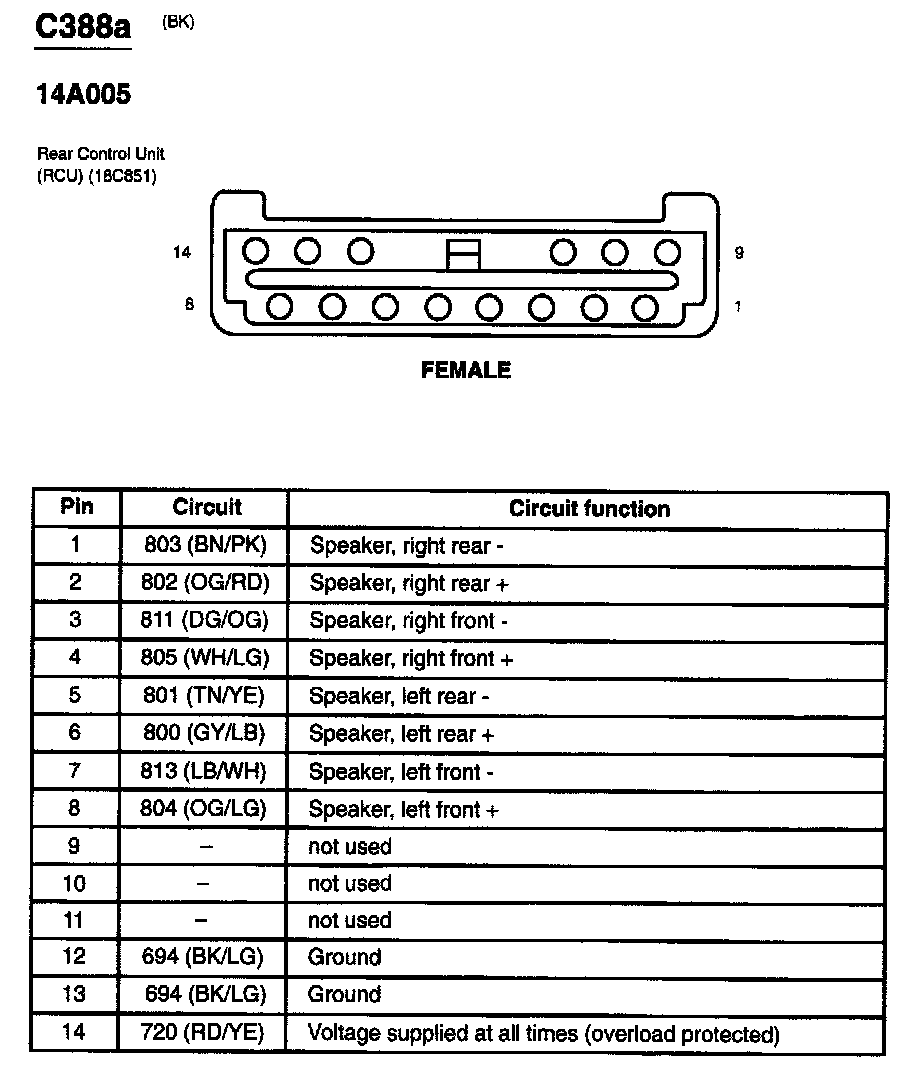

C388a:

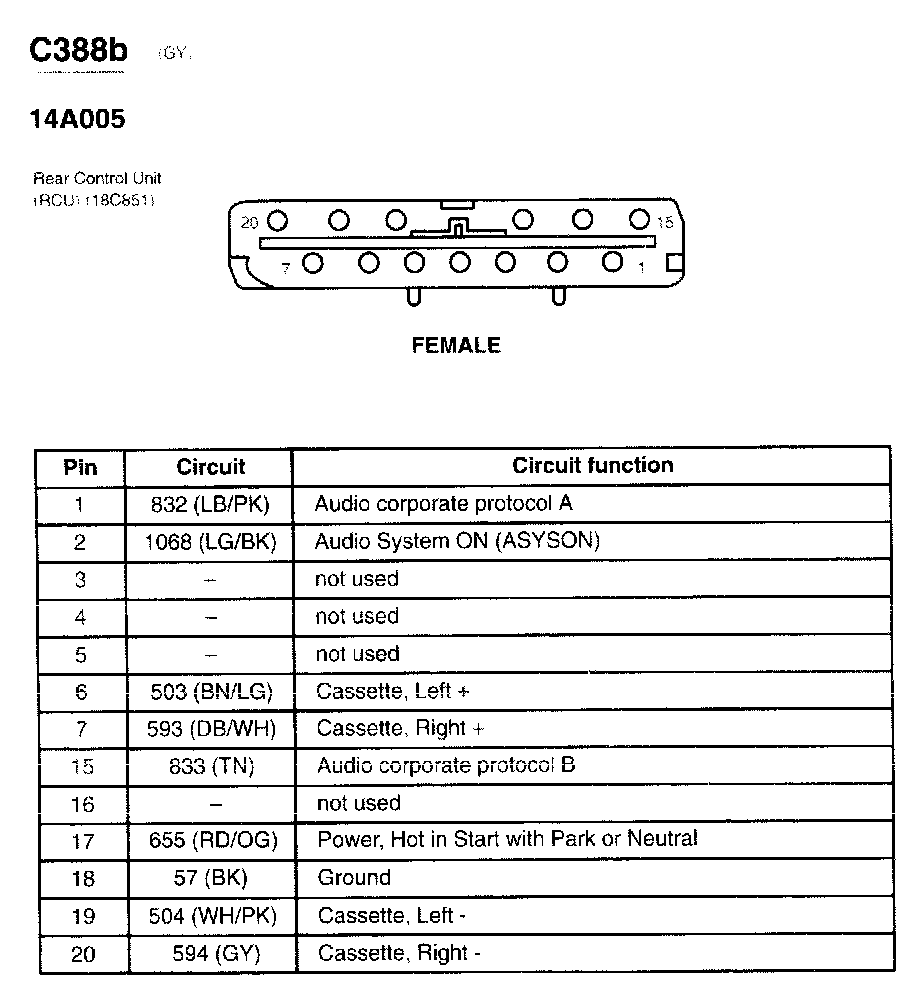

C388b:

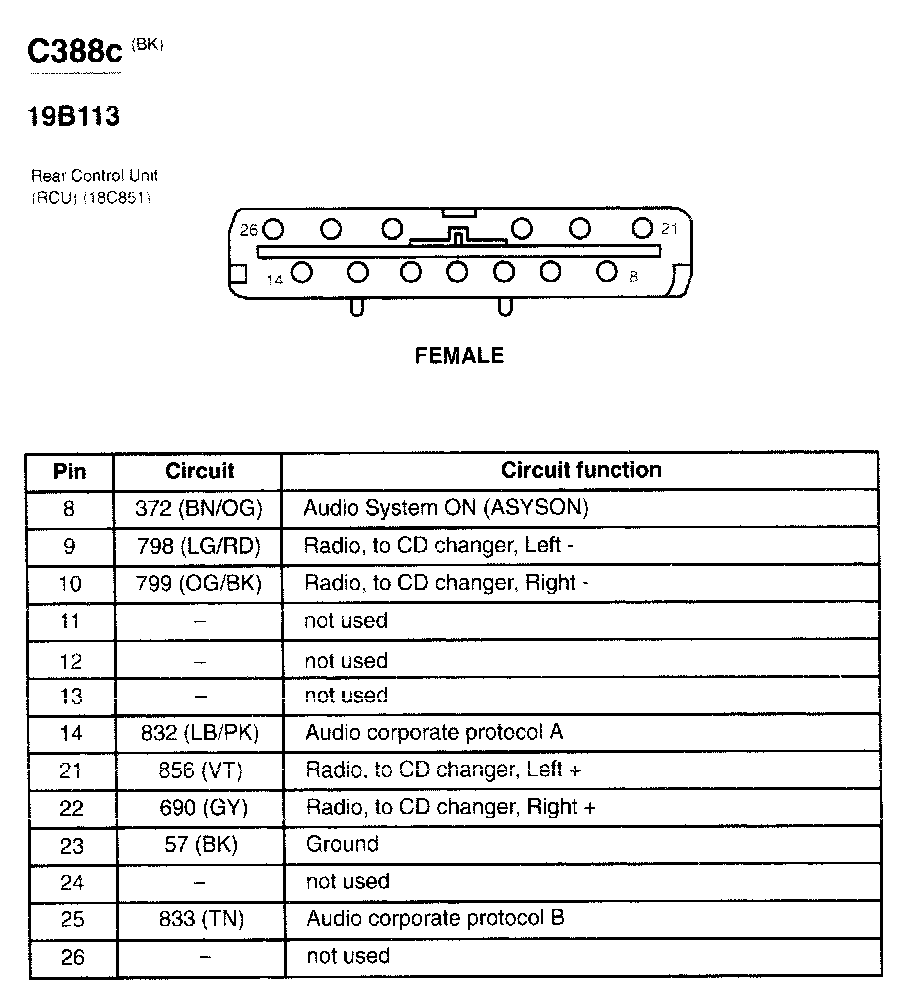

C388c:
