Taurus V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C184-C260
>>
C218a
C218a

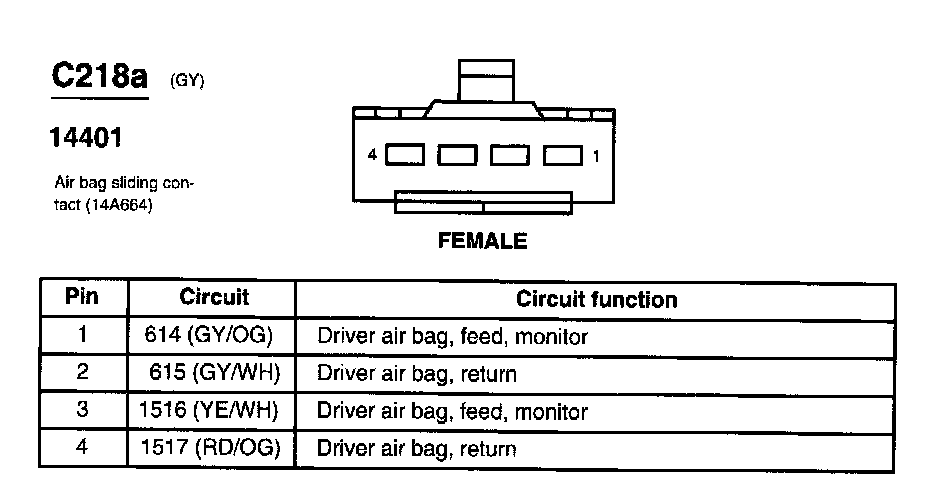

C218a:

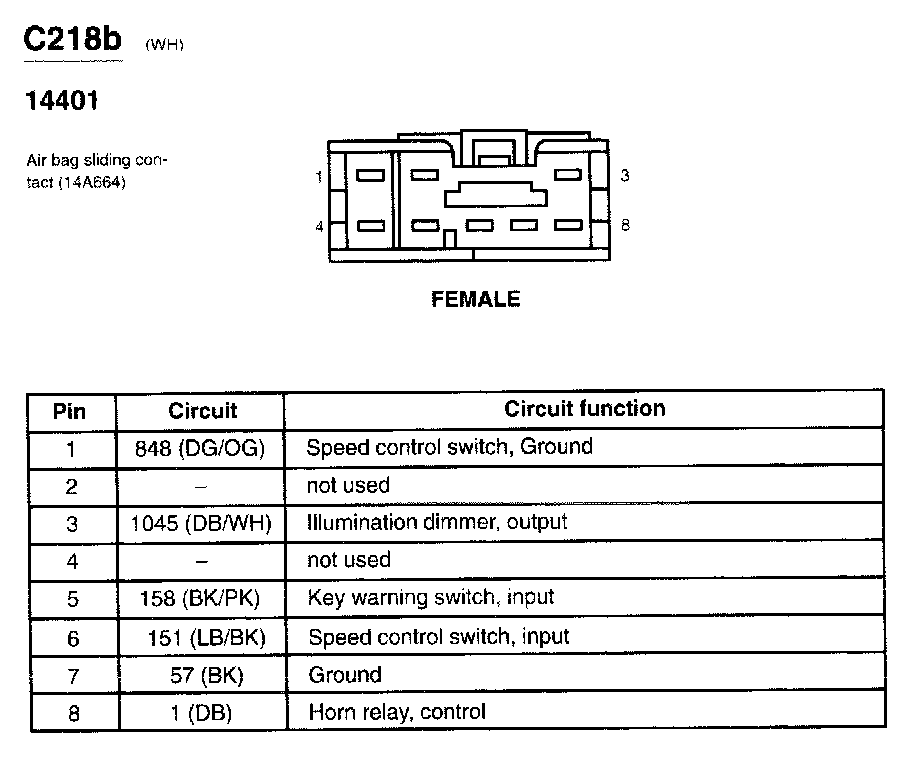

C218b:
