Symptom Related Diagnostic Procedures

SYMPTOM CHART

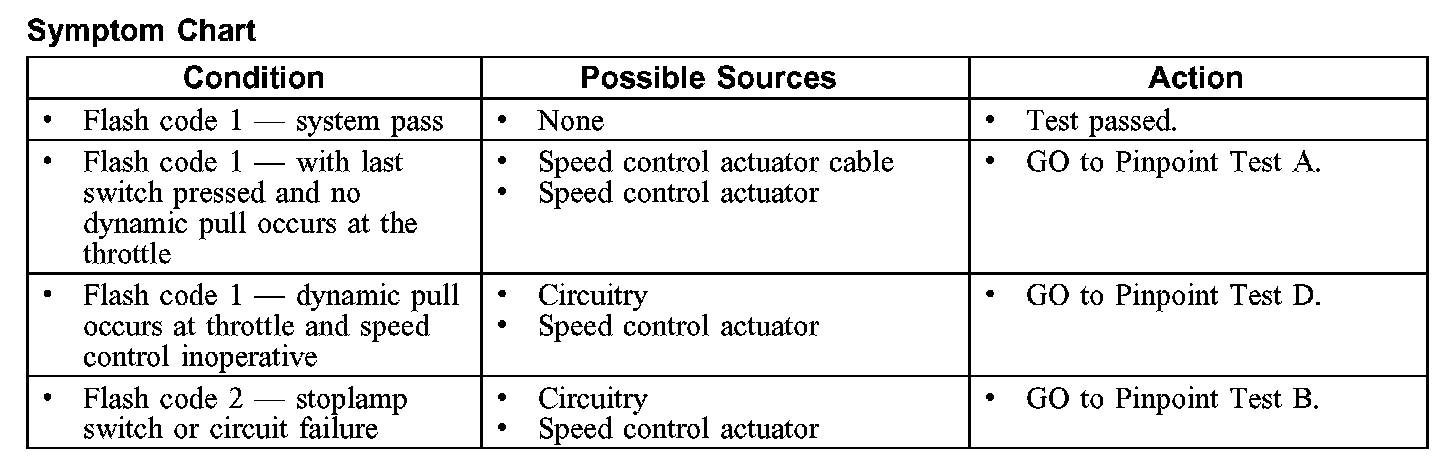

Symptom Chart (Part 1):

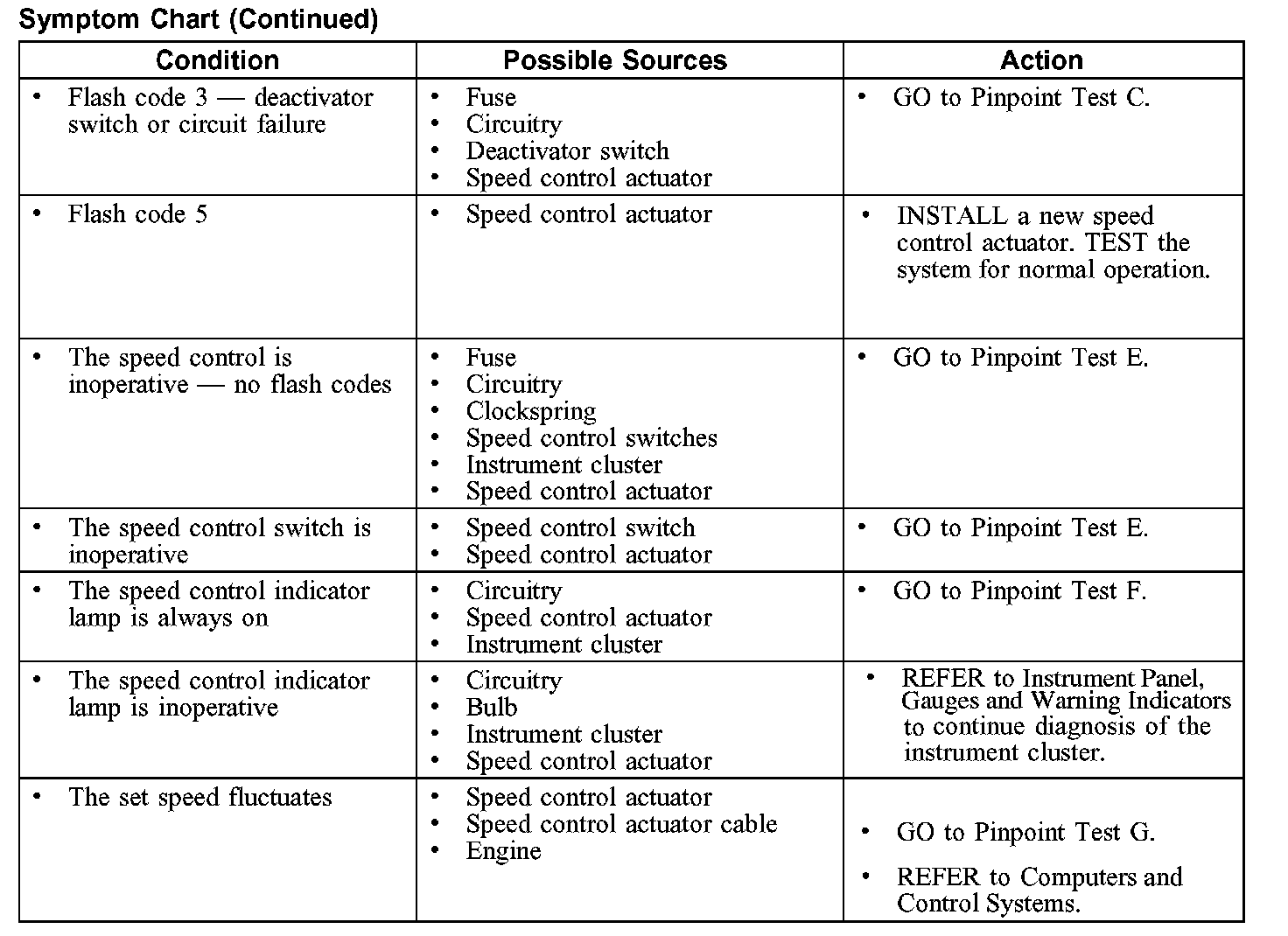

Symptom Chart (Part 2):

NOTE:
- The Self-Test Diagnostics must be carried out before proceeding to the Symptom Chart.
- New speed control diagnostic software is available on some diagnostic tools.
