Test G: The Set Speed Fluctuates

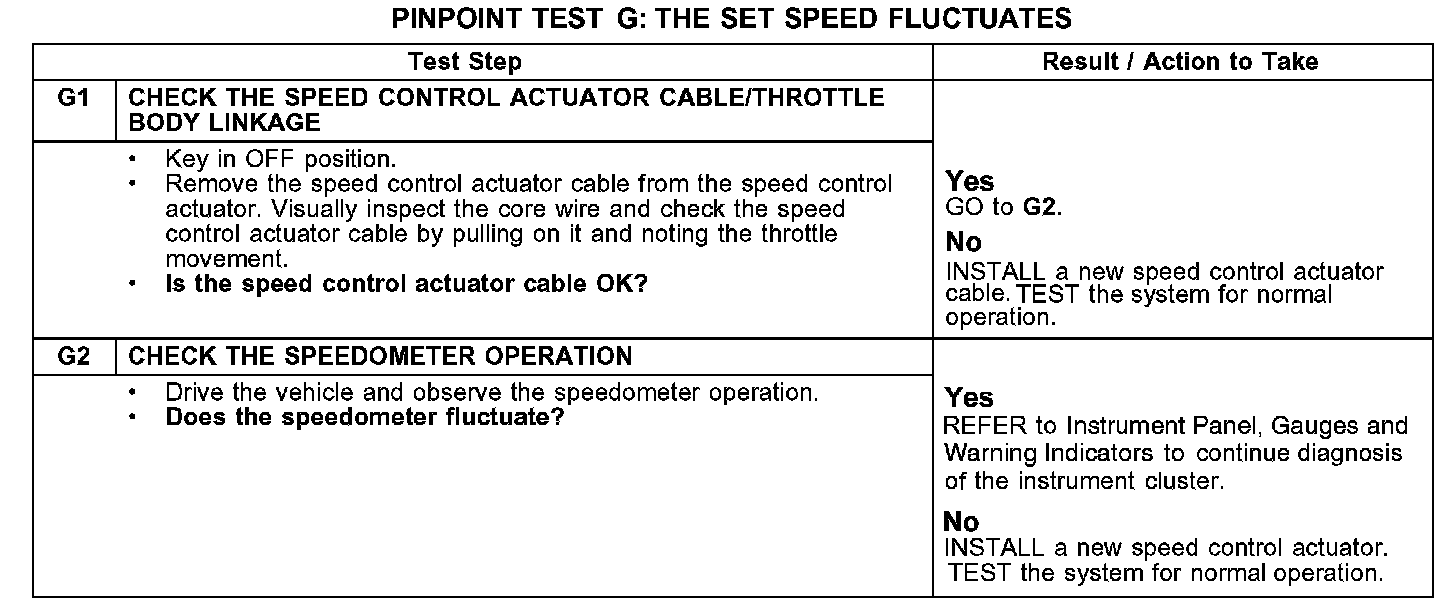

PINPOINT TEST G: THE SET SPEED FLUCTUATES


G1-G2:






Normal Operation
Under normal operation the speed control actuator adjusts the speed control cable, which controls the throttle body.

Possible Causes
- Speed control actuator cable
- Speed control actuator
