Test B: Flash Code 2 - Stoplamp Switch Or Circuit Failure

PINPOINT TEST B: FLASH CODE 2 - STOPLAMP SWITCH OR CIRCUIT FAILURE

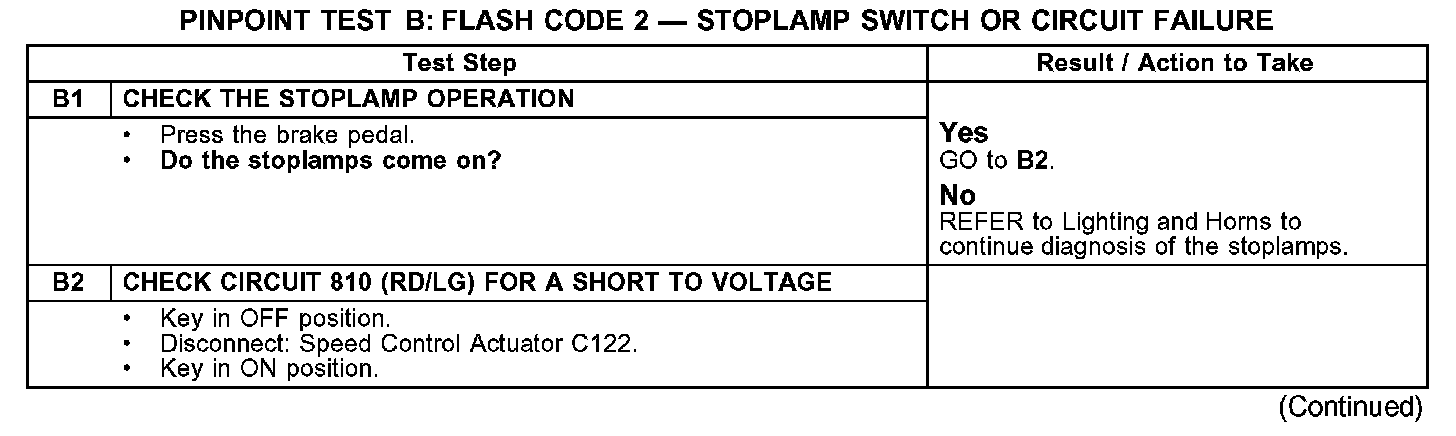

B1-B2:

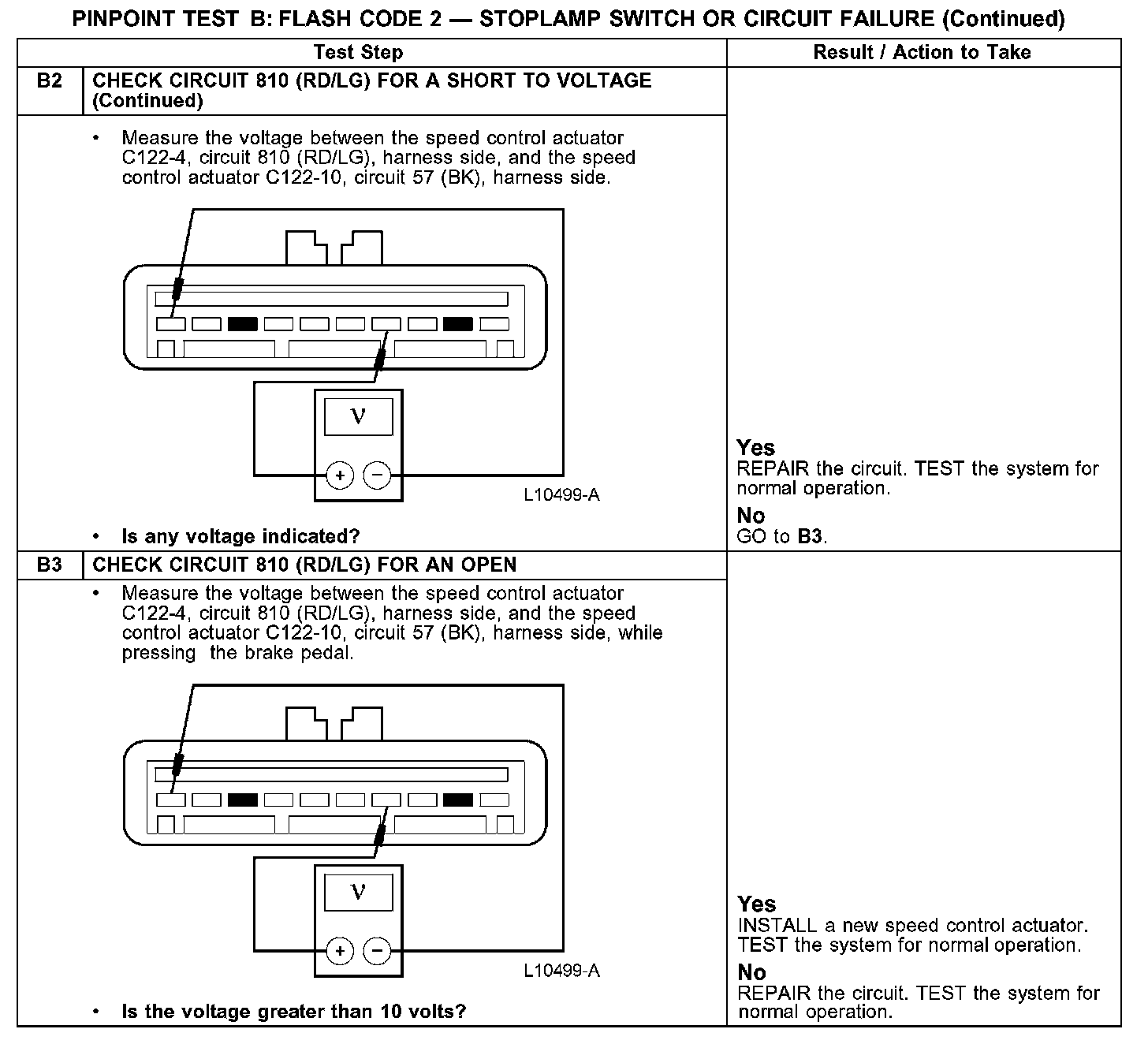

B2-B3:

Normal Operation
The speed control actuator receives voltage from circuit 810 (RD/LG) from the stoplamp switch and is grounded through circuit 57 (BK).

Possible Causes
- Circuit 810 (RD/LG) open, or short to voltage
- Speed control actuator
