Test A: Flash Code 1 - With Last Switch Pressed And No Dynamic Pull Occurs At the Throttle

PINPOINT TEST A: FLASH CODE 1 - WITH LAST SWITCH PRESSED AND NO DYNAMIC PULL OCCURS AT THE THROTTLE

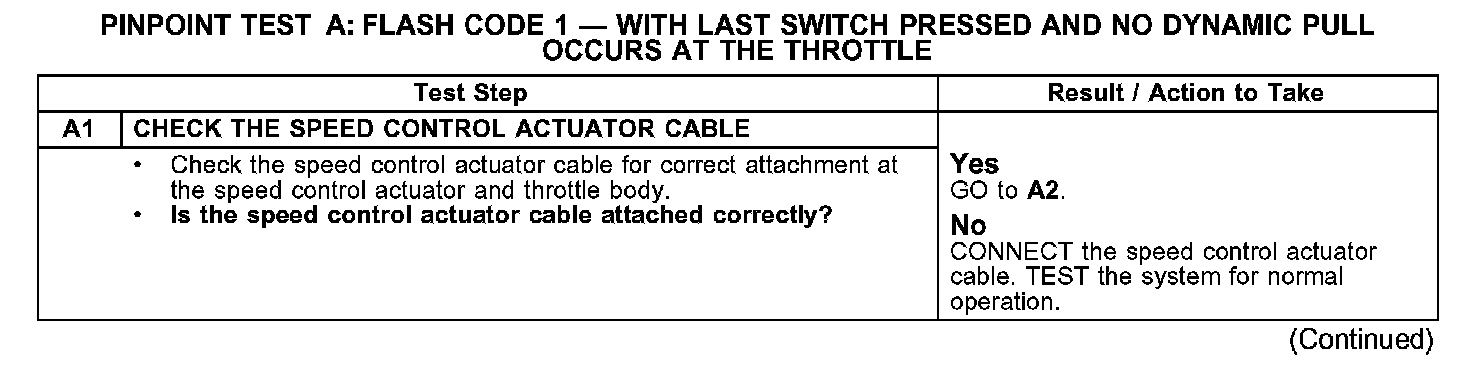

A1:

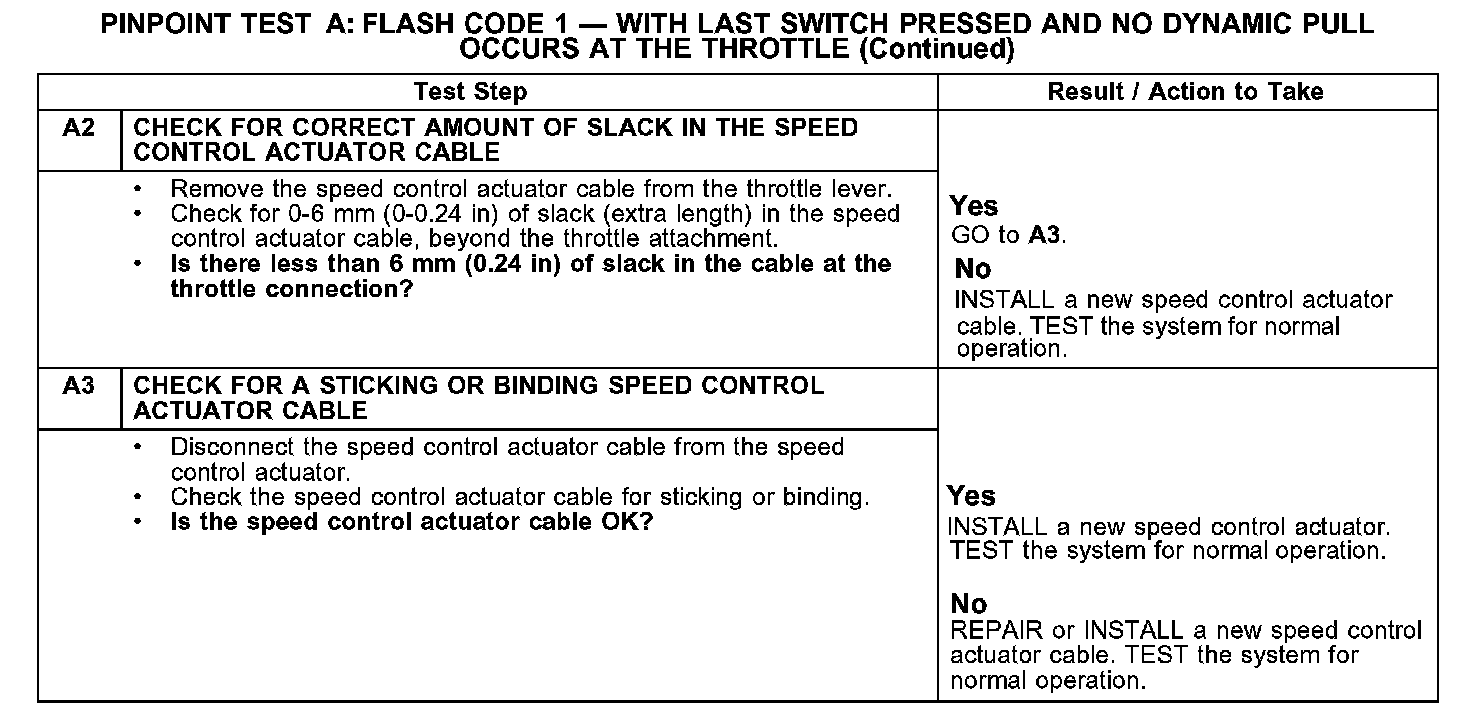

A2-A3:

Normal Operation
During the self-tests the speed control actuator will carry out a dynamic test automatically by actuating the throttle lever from 1.01 mm (0.04 in) to 10 mm (0.39 in) of travel from the idle position immediately after the static test has passed.

Possible Causes
- Speed control actuator cable
- Speed control actuator
