Brake Proportioning/Combination Valve: Adjustments

Brake Load Sensor Proportioning Valve Adjustment

NOTE: This procedure is for vehicles not equipped with ABS.

1. NOTE: Make sure that the fuel tank is at least 3/4 full.

Raise the vehicle on a suitable lift so that the vehicle is at curb height and wheels are on a flat surface.





2. NOTE: Do not change the position of the upper nut on the valve operating rod.

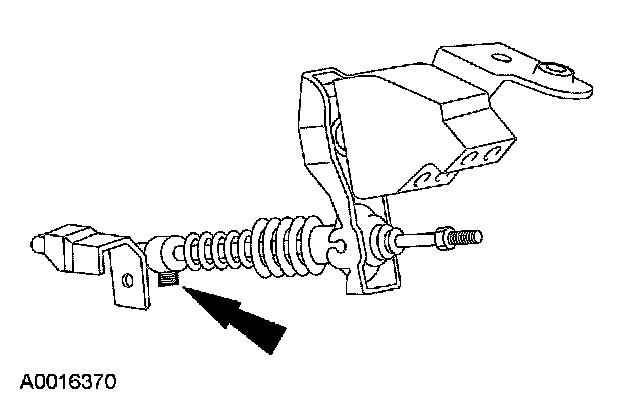

Loosen the valve adjuster sleeve set screw.

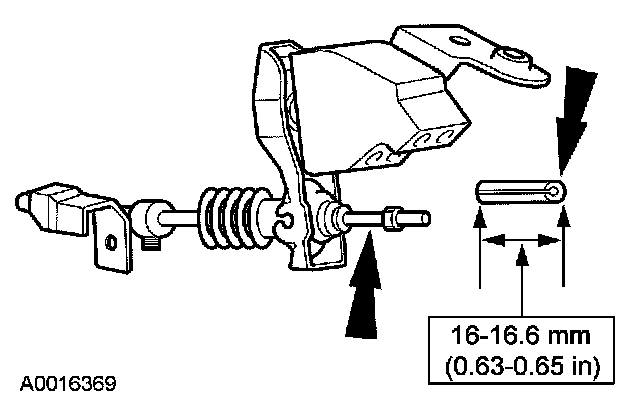

3. Cut a piece of 3/8 inch OD x 1/4 inch ID rubber vacuum hose 16.3 mm (0.65 inch) in length and slice it lengthwise.





4. Install the hose on the valve operating rod.

5. NOTE: Make sure that the valve adjuster sleeve is sliding freely and is resting on the lower mounting bracket.

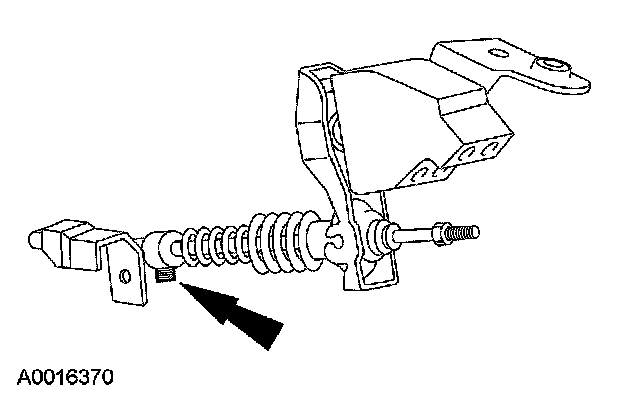

Tighten the valve adjuster sleeve set screw.

6. Lower the vehicle.
