Disc Removal and Installation, Front

Brake Disc

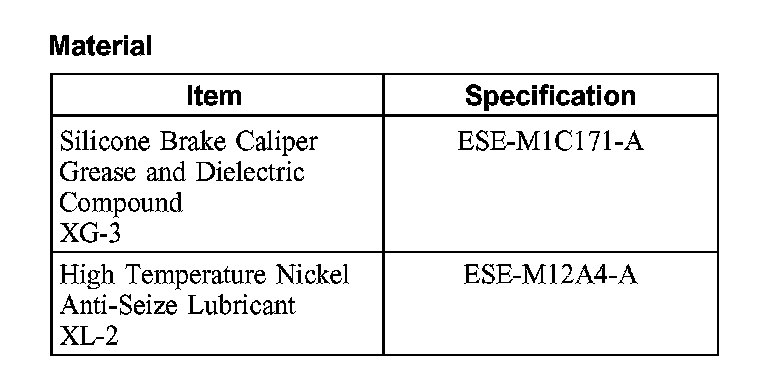

Material:

Disc Brake System - Exploded View:

Removal and Installation

1. Remove the brake caliper anchor plate.

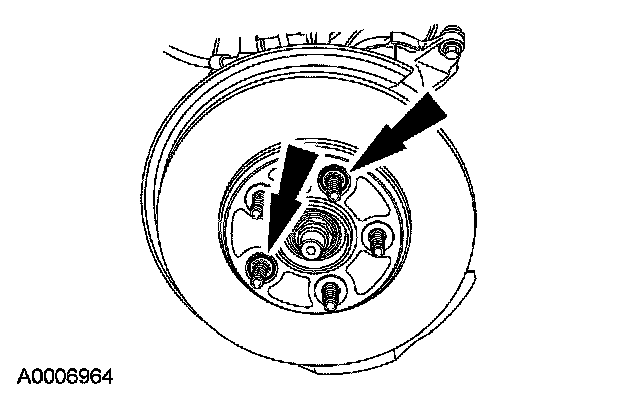

2. Remove and discard the brake disc retainers.

3. NOTE: If the brake disc will not come off, lubricate the brake disc where it contacts the hub assembly using silicone brake caliper grease and dielectric compound. Strike the disc between the wheel bolts with a plastic hammer. If this does not work, attach 2-3 jaw puller 205-DO27 (D80L-1013-A) or equivalent and remove the brake disc.

NOTE: If excessive force must be used during disc removal, the disc must be checked for runout.

Remove the brake disc.
4. To install, reverse the removal procedure.
^ Clean the hub and disc mating surfaces and apply a light coat of high temperature nickel anti-seize lubricant to the pilot diameter of the disc.
