Disassembly and Assembly

FRONT SEAT BACKREST

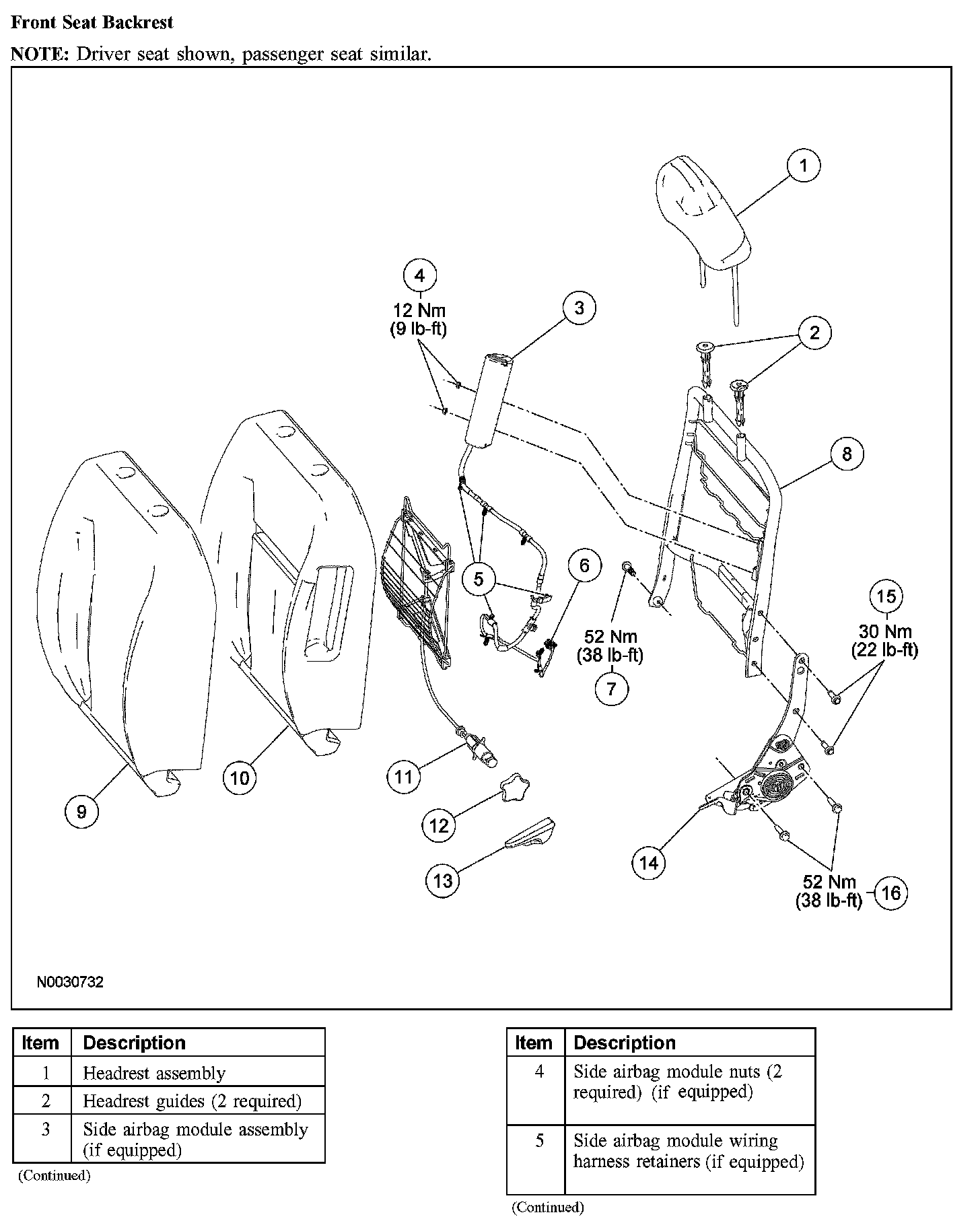

Front Seat Backrest (Part 1):

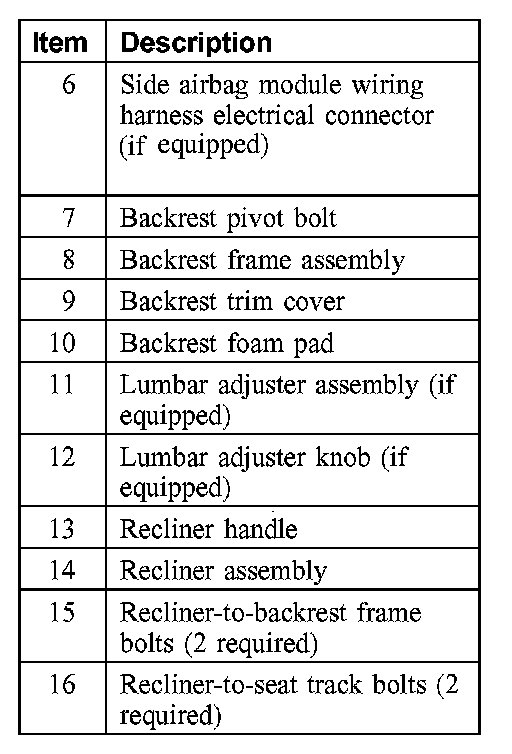

Front Seat Backrest (Part 2):

Disassembly

WARNING:
- Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
- Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.
- The safety belt pretensioner is a pyrotechnic device. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner. Never probe a pretensioner electrical connector. Doing so could result in pretensioner or air bag deployment and could result in personal injury.
- After deployment, the air bag surface can contain deposits of sodium hydroxide, a product of the gas generant combustion that is irritating to the skin. Wash your hands with soap and water afterwards.
- To reduce the risk of personal injury, do not use any memory saver devices.

NOTE:
- If a seat equipped with a supplemental restraint system (SRS) component is being serviced, the SRS must be depowered.
- The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

1. Remove the affected seat and depower the SRS.
2. Remove the seat backrest.
3. Remove the headrest.
4. Unfasten the backrest trim cover J-clip.







5. CAUTION: Use care when separating the seat backrest trim cover from the hook and loop strip, or the hook and loop strip can be torn from the seat backrest foam.

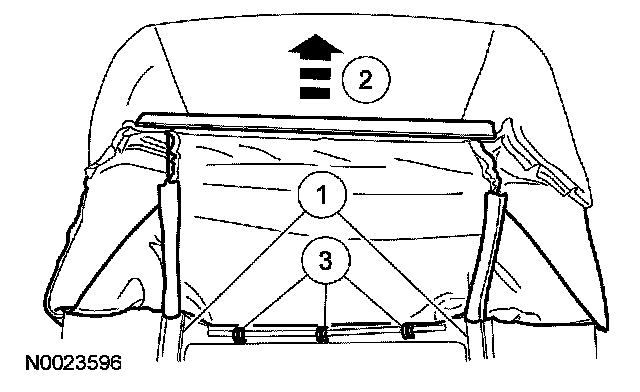

Remove the lower row of hog rings.
1 Reach a hand under the trim cover and separate the hook and loop strips.
2 Partially invert the backrest trim cover in an inside out fashion to access the lower row of hog rings.
3 Remove the lower row of hog rings.

6. CAUTION: Use care when separating the seat backrest trim cover from the hook and loop strip, or the hook and loop strip can be torn from the seat back foam.

Invert the seat backrest trim cover in an inside out fashion.
- Reach a hand under the trim cover and continue separating the hook and loop strips. Continue to invert the backrest trim cover in an inside out fashion.

7. Detach the trim cover J-clip.
8. Remove the headrest guide retaining pins.
9. Remove the backrest trim cover from the foam pad.

10. NOTE: If the pin-type retainers are damaged, install new retainers. This will keep the wiring harness routed correctly.

Remove the side air bag wiring harness pin-type retainer from the side of the seat backrest frame.

11. Remove the seat backrest frame from the foam pad.

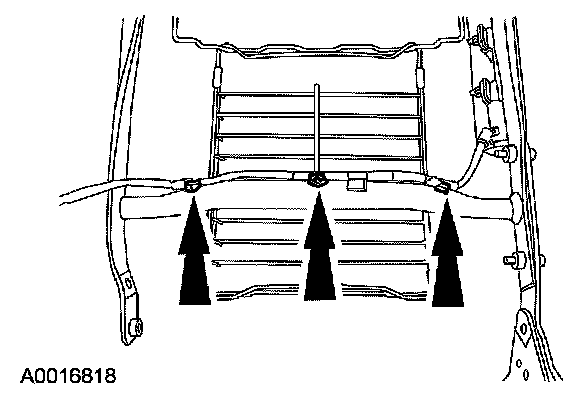

12. Remove the air bag wiring harness pushpin retainers.

13. WARNING:
- Carry a live side air bag module with the air bag and tear seam pointed away from your body. This will reduce the risk of injury in the event of an accidental deployment.
- Do not set a live side air bag module down on the cover tear seam. This will reduce the risk of injury in the event of an accidental deployment.

Remove the 2 nuts and the side air bag module.

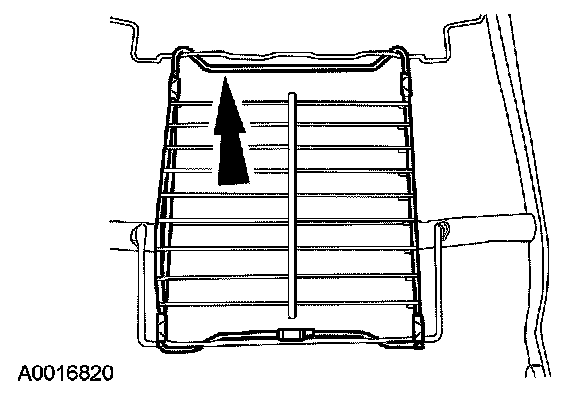

14. Remove the seat backrest lumbar support.

Assembly







1. Install the seat backrest lumbar support.

2. WARNING:
- Inspect the mounting surfaces of the side air bag module and the seat backrest frame mounting bracket for any foreign objects before installing the side air bag module. If any foreign objects are found, remove them. Failure to do so may result in personal injury in the event of an air bag deployment.
- Inspect the side air bag cavity in the seat back pad for any foreign objects. If any foreign objects are found, remove them. Failure to do so may result in personal injury in the event of an air bag deployment.
- Before installing the side air bag module, check it for damage and foreign objects. If the air bag module is damaged, replace it. If any foreign objects are found, remove them. Failure to do so may result in personal injury in the event of an air bag deployment.
- If the air bag cover has separated or the air bag material has been exposed, install a new side air bag module. Do not attempt to repair the air bag module. Failure to do so may result in personal injury, in the event of an air bag deployment.

Route the side air bag module wiring harness and side air bag module through the outboard opening in the side of the seat backrest frame and onto the mounting bracket.

3. Install the side air bag module retaining nuts.
- Tighten to 12 Nm (9 lb-ft).







4. NOTE: If the pin-type retainers are damaged, install new retainers. This will keep the wire harness routed correctly.

Route the side air bag module wire harness along the seat backrest frame and install the pin-type retainers.

5. Install the foam pad over the seat backrest frame.

6. NOTE: If the pin-type retainers are damaged, install new retainers. This will keep the wiring harness routed correctly.

Route the side air bag wiring harness along the side of the seat and install the pin-type retainer to the outside of the seat backrest frame.

7. Position the trim cover to the seat backrest foam pad, then install the headrest guide pins.
8. Fasten the trim cover J-clip to the backrest frame.







9. WARNING: Front seat backrest trim covers installed on seats equipped with side air bags cannot be repaired. New trim covers are to be installed (cleaning is permissible).

NOTE:
- Check that the foam pad is positioned around the seat backrest frame when repositioning the trim cover.
- Replace the hog rings with stainless steel hog rings.

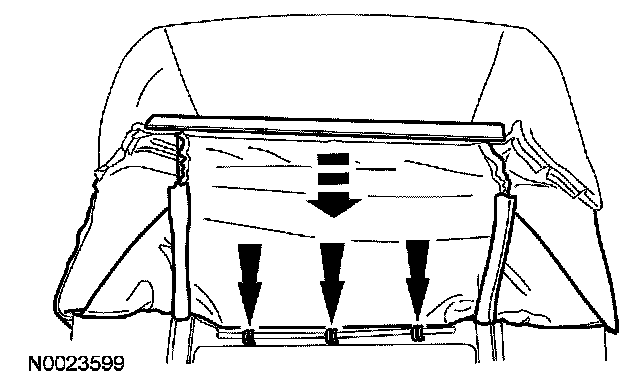

Install the hog rings.
1 Position the seat backrest trim cover to install the hog rings.
2 Install 2 hog rings at each location indicated.

10. WARNING: Front seat backrest trim covers installed on seats equipped with side air bags cannot be repaired. New trim covers are to be installed (cleaning is permissible).

NOTE: Check that the foam pad is positioned around the seat backrest frame when repositioning the trim cover.

Reposition the seat backrest trim cover and fasten the J-clip.

11. Install the headrest to the seat backrest.
12. Install the seat backrest.
13. Install the affected seat and repower the SRS.
