Rear Seat Cushion

REAR SEAT CUSHION







Removal and Installation

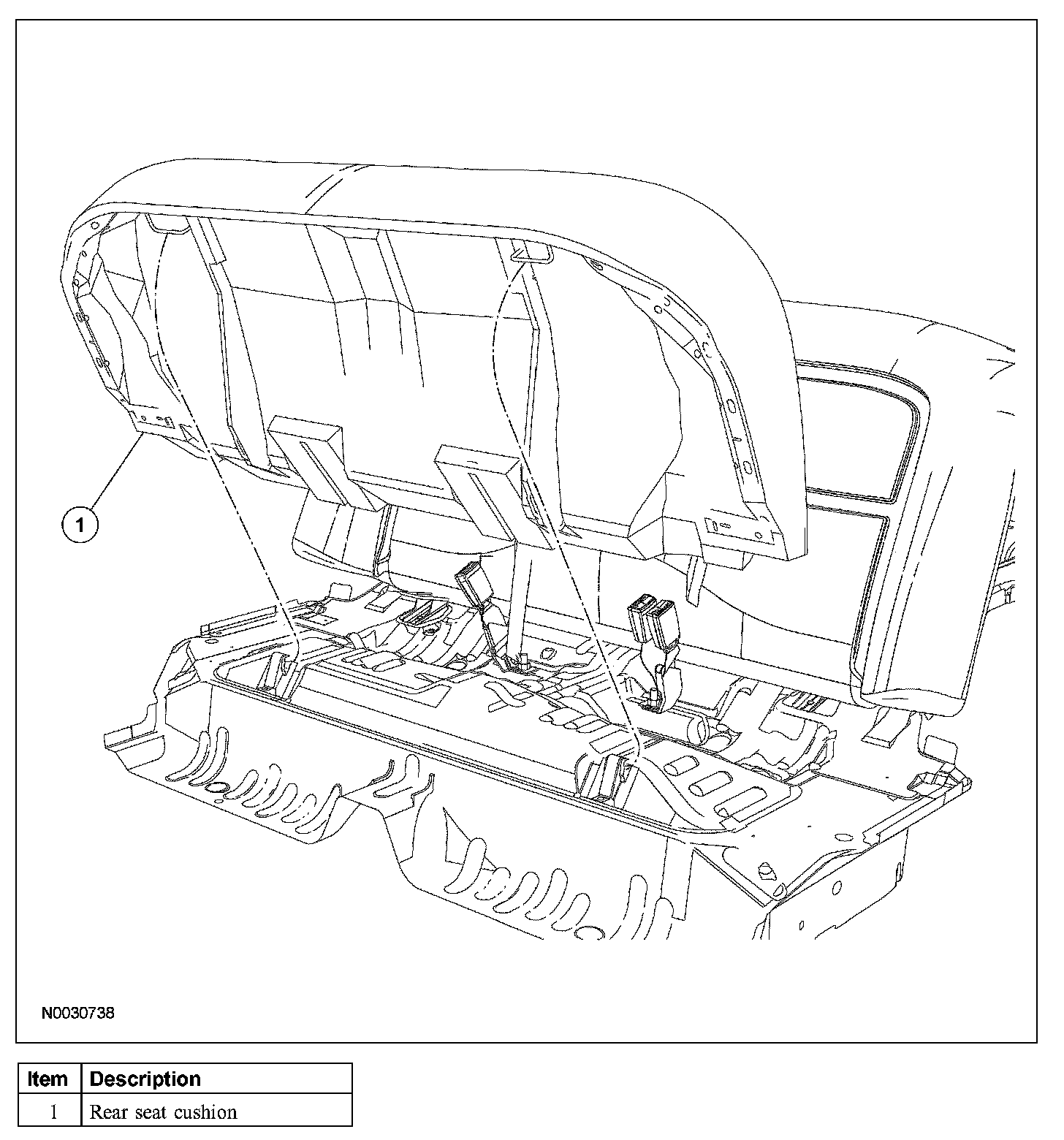

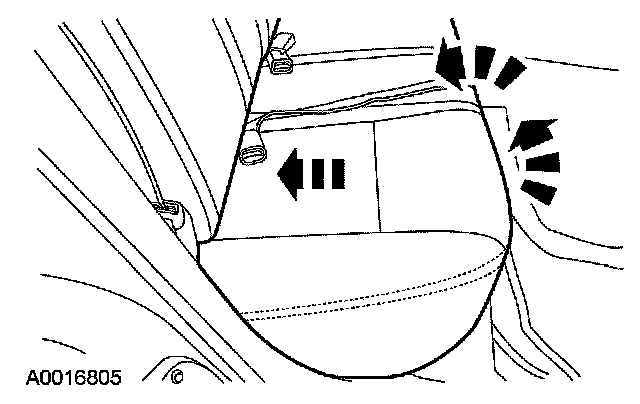

1. Apply pressure to the lower front portion of the rear seat cushion pad and frame. Push the rear seat cushion pad and frame rearward to disengage the rear seat cushion front retainers. Lift upward on the rear seat cushion and remove.

2. NOTE: Make sure the safety belt webbing is not twisted prior to installation.

To install, reverse the removal procedure.
- Make sure the safety belts and buckles are accessible to the occupants after installation.
