Lifter Arms

LIFTER ARMS

Removal and Installation
1. Remove the roof opening panel glass.
2. Release the roof opening panel trough.
3. Slide the trough and the roof opening panel shield assembly rearward.

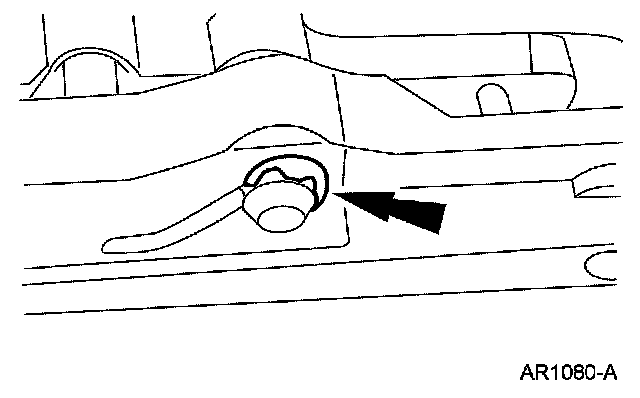

4. Move the guide bracket rearward until the lifter pin is at the top of the curved slot and remove the E-clip.
5. Slide the lifter arm feet forward and remove from the track.

6. CAUTION: The lifter pin can only be removed from the top of the slot on the lifter arm.

Rotate the lifter arm upwards and release the lifter arm from the lifter pin.

7. To install, reverse the removal procedure.
