Roof Opening Panel Shield

ROOF OPENING PANEL SHIELD

Removal and Installation
1. Open the roof opening panel glass halfway.

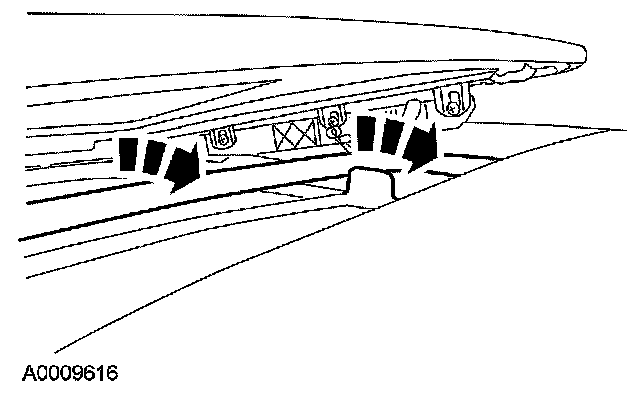

2. Release the roof opening panel trough and position aside.
3. Operate the roof opening panel glass and place in the vent position.

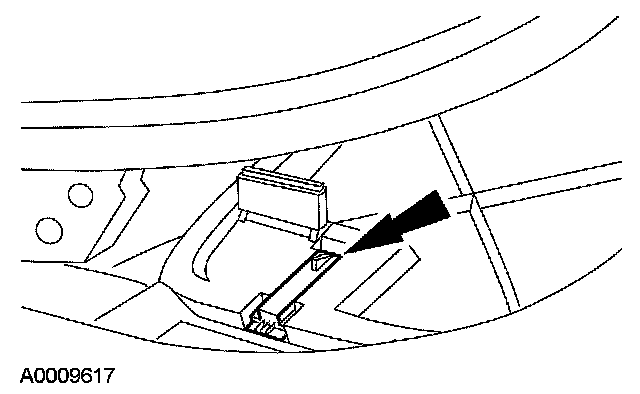

4. Slide the roof opening panel trough over the roof opening panel shield stops.







5. Release the roof opening panel shield track guides on one side.
6. Remove the roof opening panel shield through the open roof opening panel glass.
7. To install, reverse the removal procedure.
