Exterior Mirror Cover

EXTERIOR MIRROR COVER

Removal and Installation
1. Remove the exterior mirror glass.

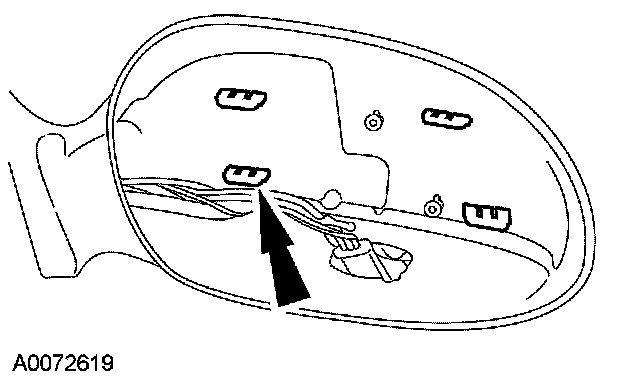

2. NOTE: To access the fourth tab, the wire routing tab has to be snapped off.

Release the 4 tabs and remove the exterior mirror cover.

3. To install, reverse the removal procedure.
