Exterior Mirror

EXTERIOR MIRROR

Removal and Installation

All vehicles
1. Remove the front door trim panel.

Vehicles with sail speaker
2. Remove the sail speaker grille.
3. Remove the 2 bolts and the sail speaker.
- Disconnect the sail speaker electrical connector.

Vehicles with sail speaker delete panel

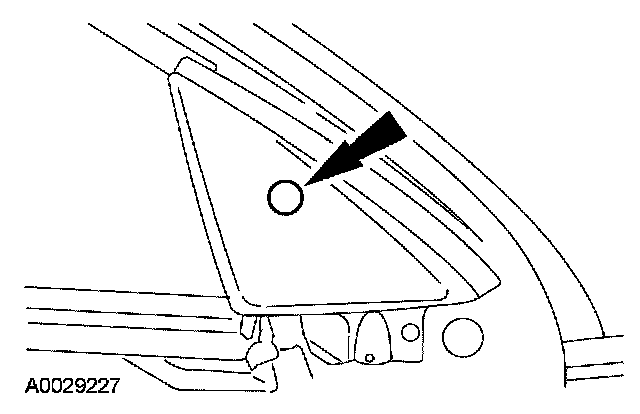

4. Remove the sail speaker delete panel screw cover.
5. Remove the 2 bolts and the speaker delete panel.

All vehicles
6. If equipped, disconnect the exterior mirror electrical connector.
7. Position the water shield aside.
8. Remove the 3 exterior mirror nuts.
- To install, tighten to 8 Nm (71 lb-in).

9. NOTE: To remove the exterior mirror, push down on the mirror assembly to release the mirror flange then roll the mirror assembly down and rearward.

Remove the exterior mirror.

10. To install, reverse the removal procedure.
