Test K: Panic Feature Is Inoperative

PINPOINT TEST K: PANIC FEATURE IS INOPERATIVE

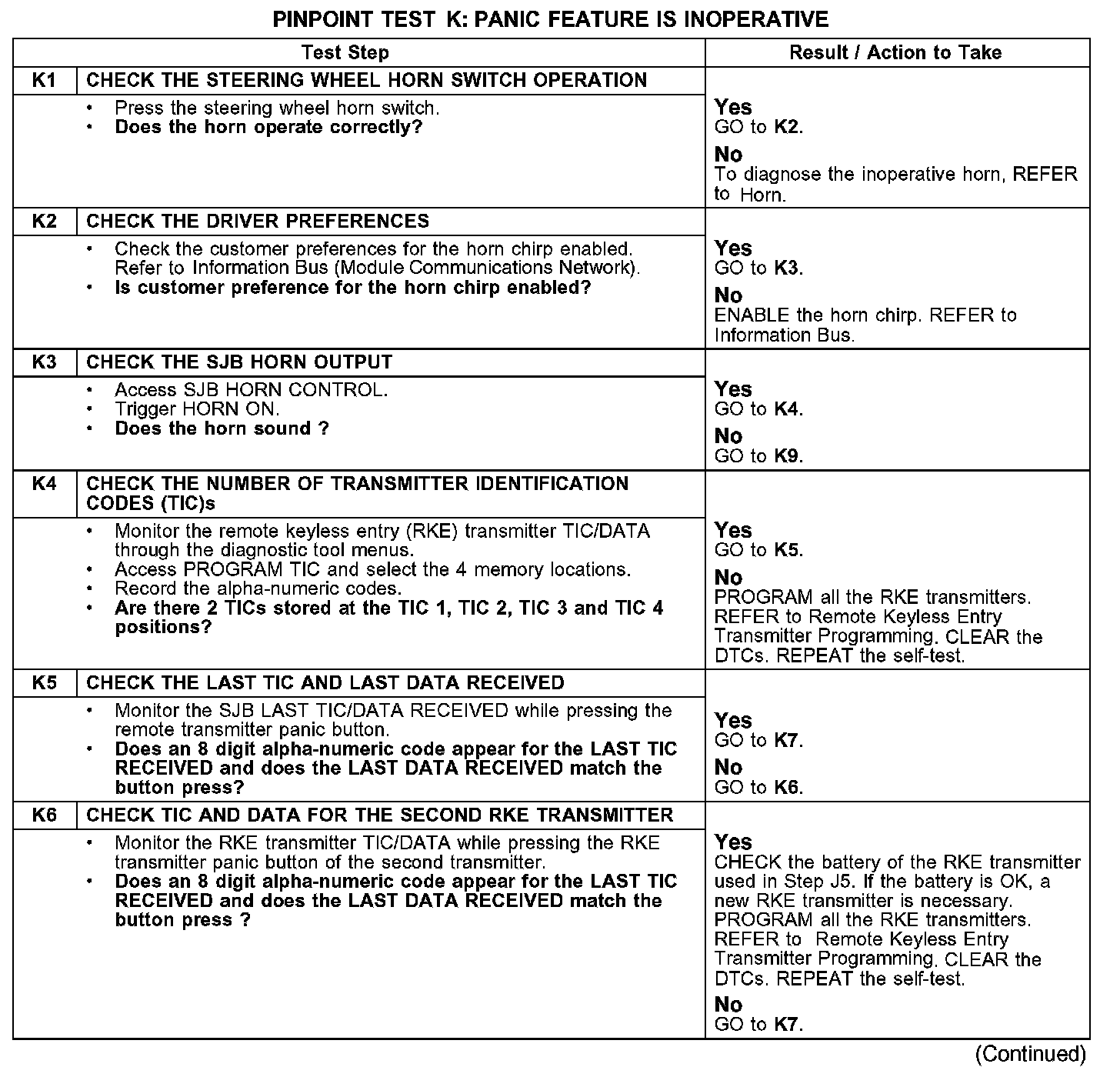

K1-K6:

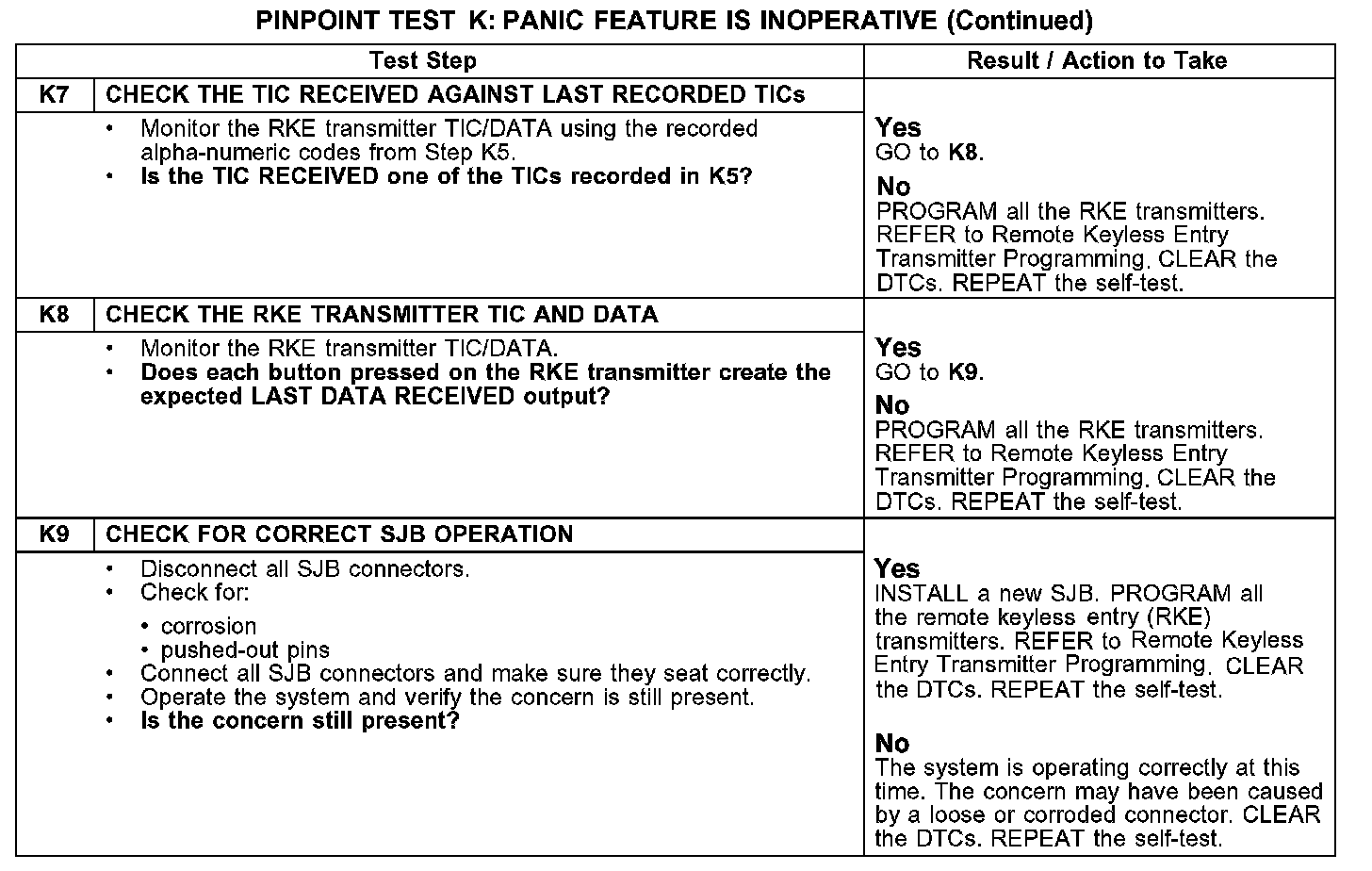

K7-K9:

Normal Operation
The panic function is accomplished by the smart junction box (SJB) receiving a command message from the remote keyless entry (RKE) transmitter through the SJB external antenna. The SJB processes the command and sends a signal activating the horn and parking lamps.

Possible Causes
- RKE transmitter
- SJB
