Test J: The Remote Keyless Entry (RKE) Transmitter Is Out Of Synchronization

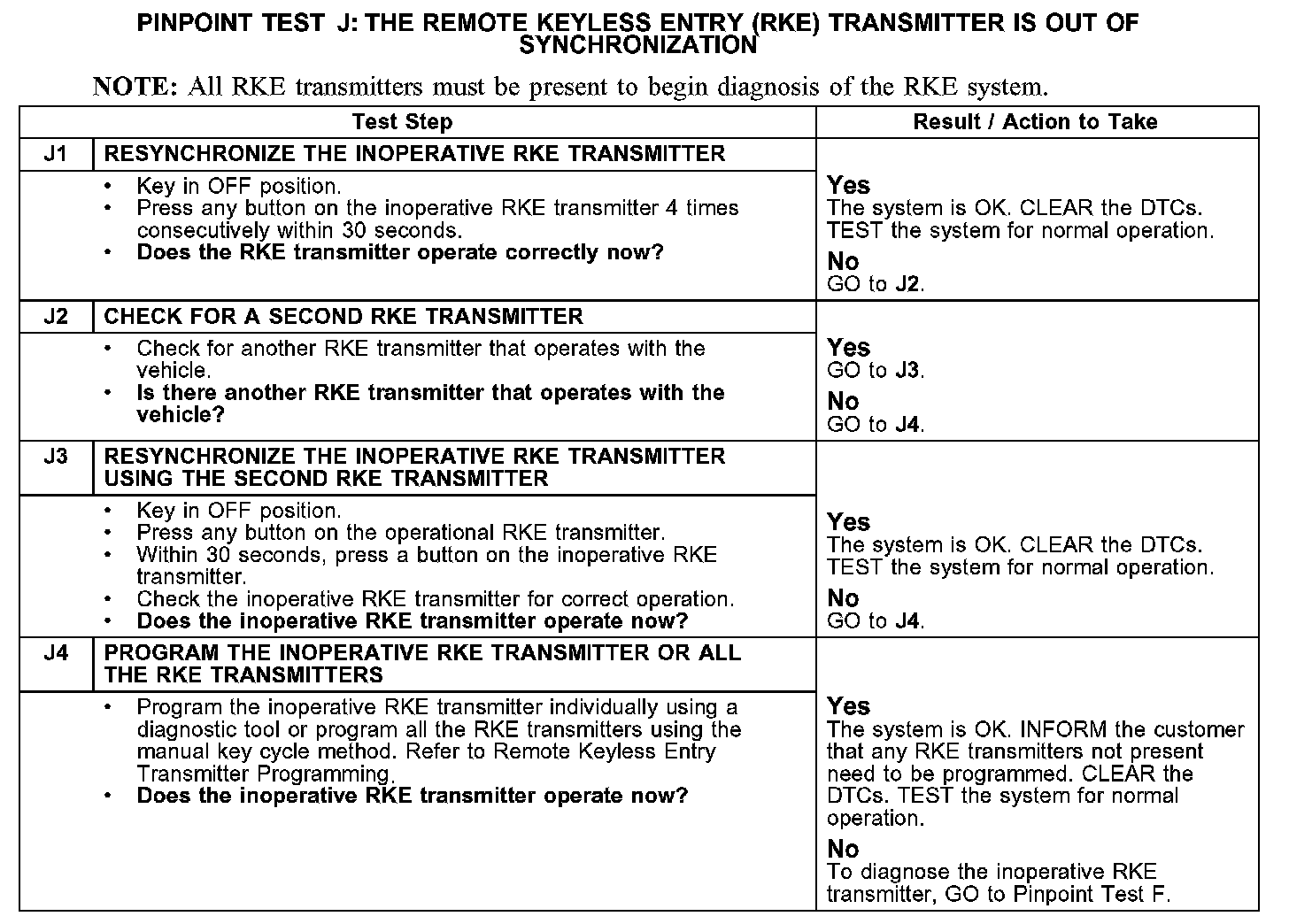

PINPOINT TEST J: THE REMOTE KEYLESS ENTRY (RKE) TRANSMITTER IS OUT OF SYNCHRONIZATION

J1-J4:

Normal Operation
Remote locking and unlocking of the doors is accomplished by the smart junction box (SJB) receiving a command message from the RKE transmitter through the SJB external antenna.

All RKE transmitters must be present to begin diagnosis of the RKE system.

Possible Causes
- RKE transmitter
- RKE transmitter button pressed a substantial amount of times while outside the range of the vehicle
- SJB
