Test G: The Auto-Lock Does Not Operate Correctly

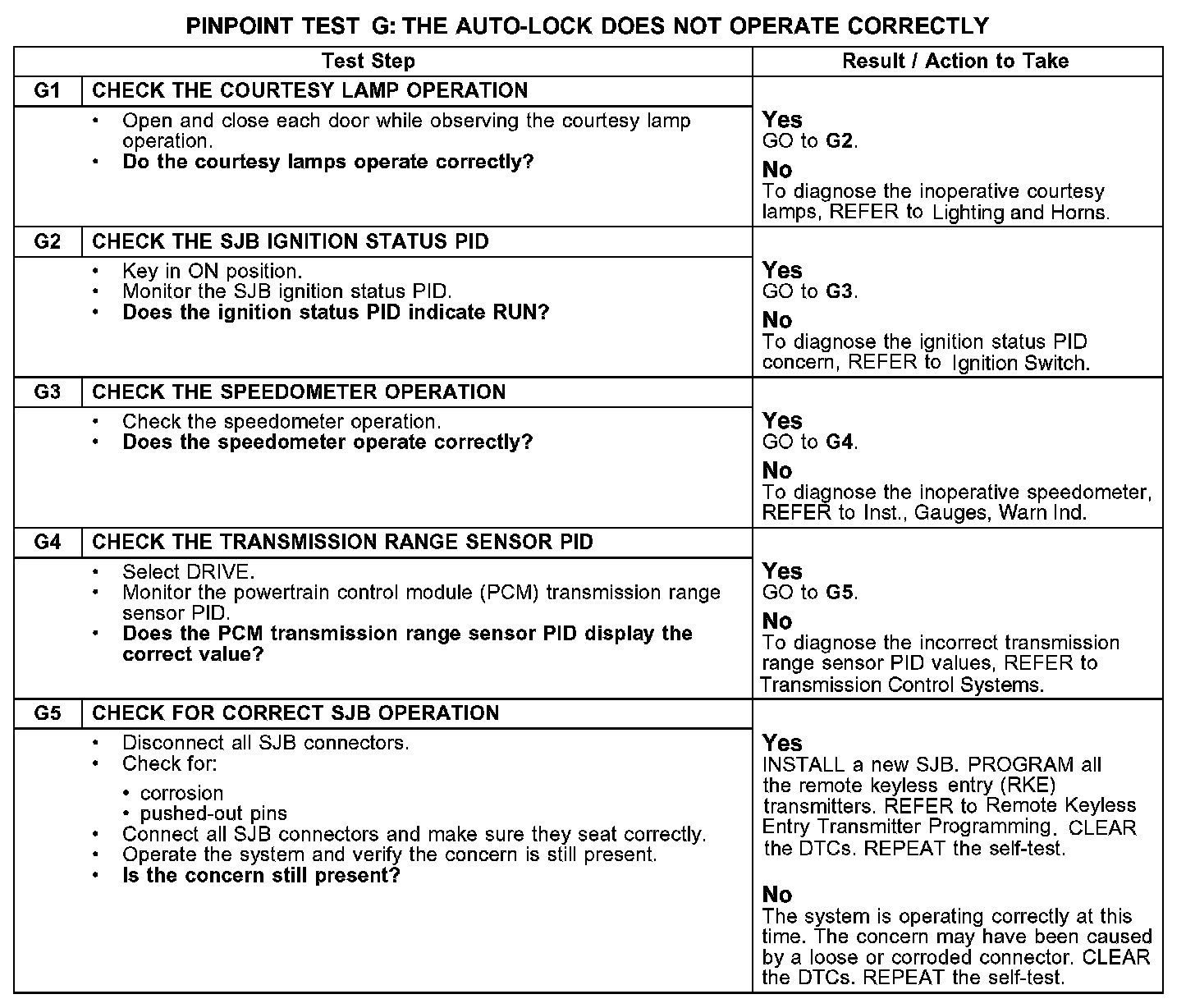

PINPOINT TEST G: THE AUTO-LOCK DOES NOT OPERATE CORRECTLY

G1-G5:

Normal Operation
The autolocking function causes the vehicle to automatically lock all the doors when the following conditions are all concurrently met during the current key cycle:
- all doors are closed
- autolocking function is active
- key in ON position
- transmission in DRIVE or REVERSE position
- vehicle speed exceeds 5 km/h (3 mph)

Possible Causes
- door ajar switch(es)
- smart junction box (SJB)
