Trim Panel: Service and Repair

B-PILLAR TRIM PANEL

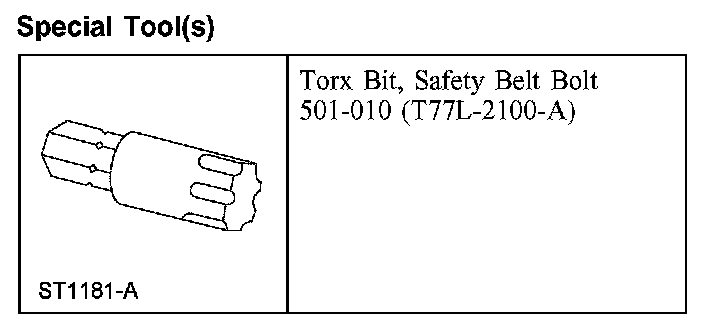

Torx Bit, Safety Belt Bolt:

Special Tool(s)

Removal and Installation

NOTE: If the side air bag has been deployed, inspect the front and back side of the upper and lower B-pillar trim panel and foam for damage and install a new panel if necessary.

1. NOTE: Inspect the D-ring cover for damage. If the cover is damaged or will not remain closed, install a new cover.

Using the special tool, remove the safety belt D-ring cover and the D-ring bolt.
- To install, tighten to 40 Nm (30 lb-ft).

2. Remove the upper B-pillar trim panel.
3. Remove the front scuff plate.
4. Raise the safety belt anchor boot. Using the special tool, remove the bolt and the safety belt anchor bolt.
- To install, tighten to 40 Nm (30 lb-ft).

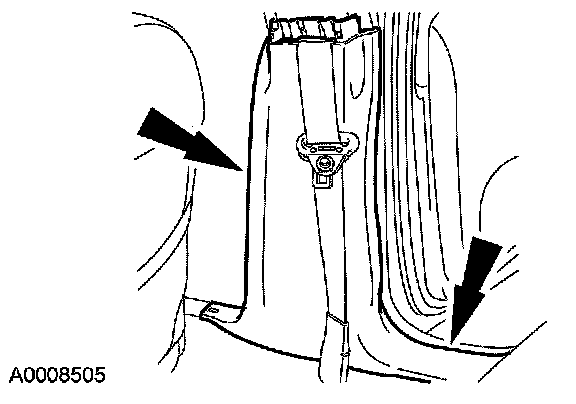

5. NOTE: Pull up and out to release the retaining clips.

Route the safety belt out and remove the lower B-pillar trim panel.

6. To install, reverse the removal procedure.
