Instrument Cluster Finish Panel

INSTRUMENT CLUSTER FINISH PANEL







Removal and Installation
1. Adjust the steering column to the full tilt-down position.
2. Remove the instrument panel center finish panel.
3. Remove the headlamp switch.

4. NOTE: If equipped with a steering column selector lever, position the lever in the 1 position.

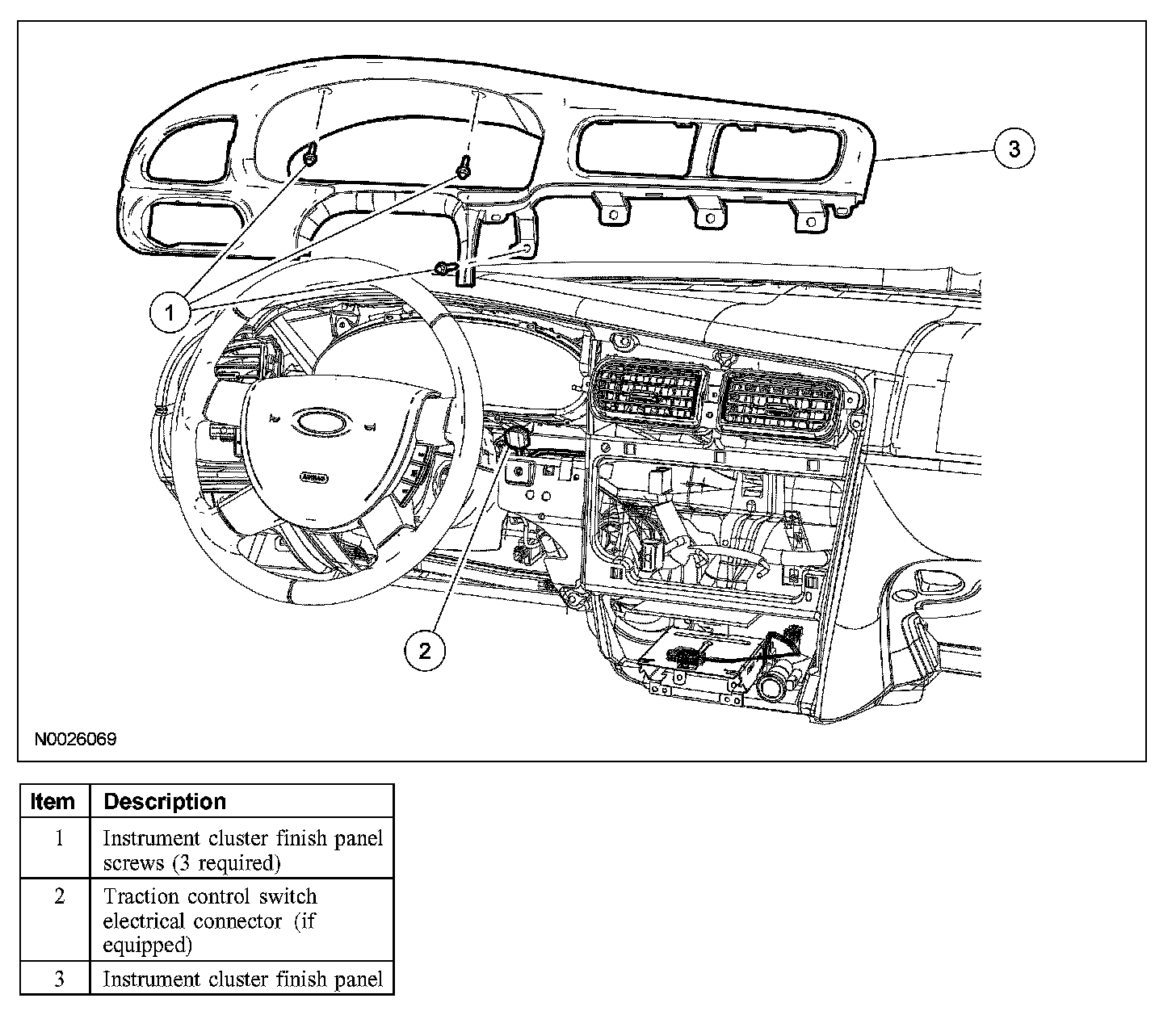

Remove the 3 screws and the instrument cluster finish panel.

5. Disconnect the traction control switch electrical connector.
6. To install, reverse the removal procedure.
