Cowl Moulding / Trim: Service and Repair

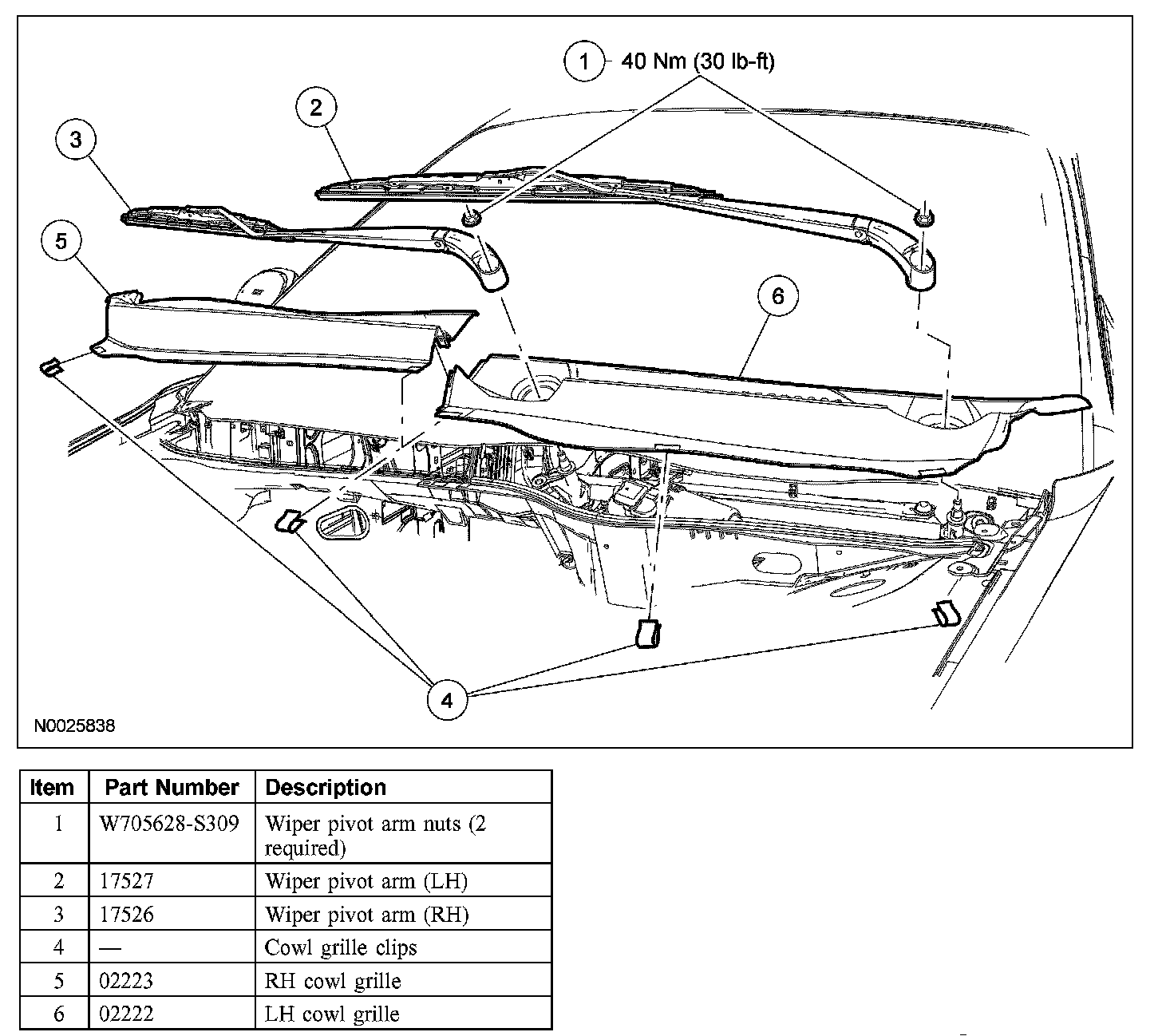

COWL PANEL GRILLE







Removal and Installation
1. Open the covers, remove the nuts and the wiper pivot arms.
- To install, tighten to 40 Nm (30 lb-ft).

2. Remove the cowl grille clips.

3. NOTE: Remove the RH cowl grille first.

Remove the cowl grilles.

4. To install, reverse the removal procedure.
- Adjust the wiper pivot arms.
