Trunk / Liftgate Latch: Service and Repair

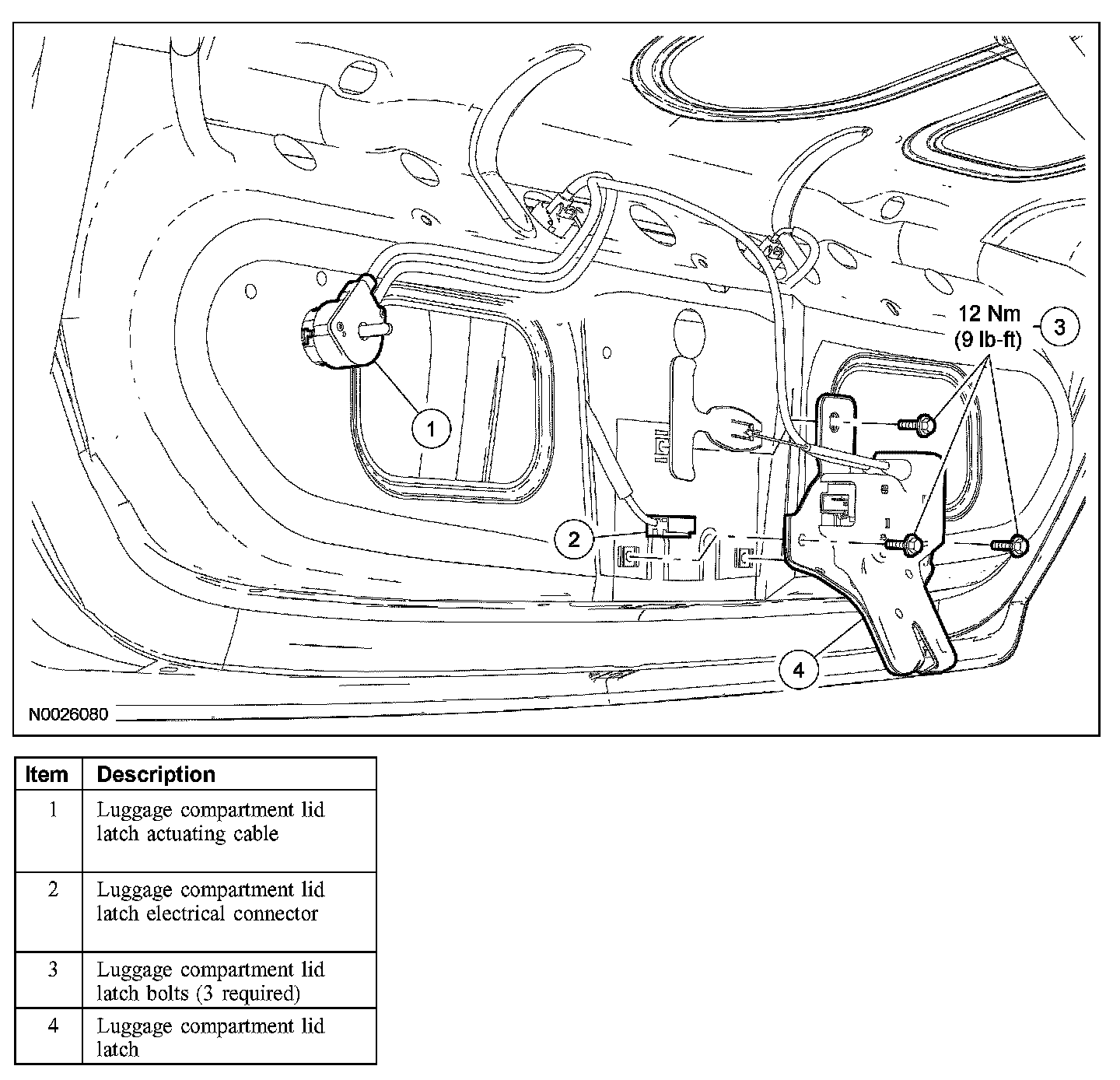

LUGGAGE COMPARTMENT LID LATCH

Luggage Compartment Lid Latch:

Removal and Installation
1. Remove the luggage compartment lid trim cover.
2. Disconnect the luggage compartment lid latch actuating cable from the lock cylinder.
3. Release the luggage compartment lid latch actuating cable cable guide.
4. Disconnect the luggage compartment lid latch electrical connector.
5. Remove the bolts and the luggage compartment lid latch.
- To install tighten to 12 Nm (9 lb-ft).

6. To install, reverse the removal procedure.
