Rear Door: Adjustments

DOOR ADJUSTMENT - REAR

NOTE: The door should be adjusted for an even and parallel fit with the body opening and surrounding panels.

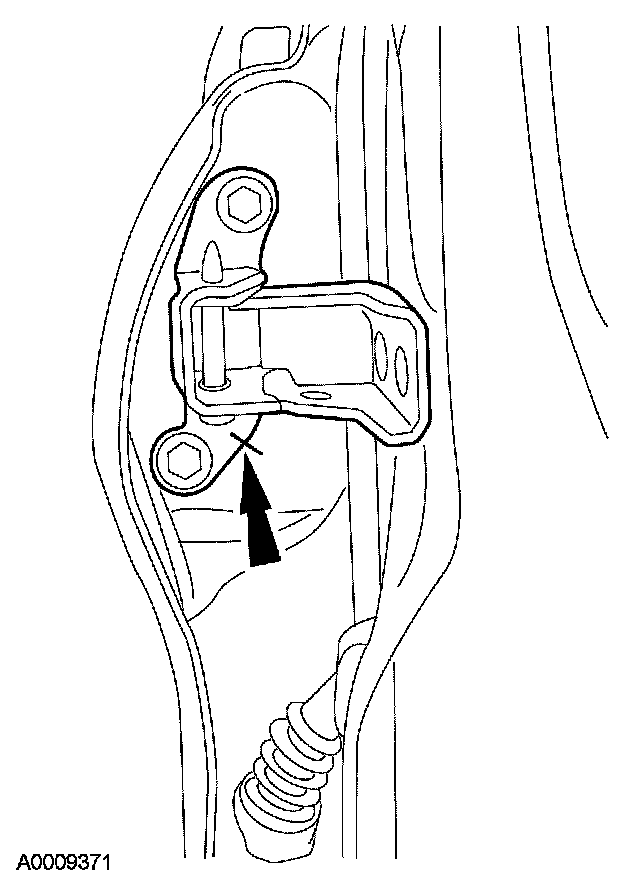

1. Mark the position of the rear door hinge to use as a reference point.

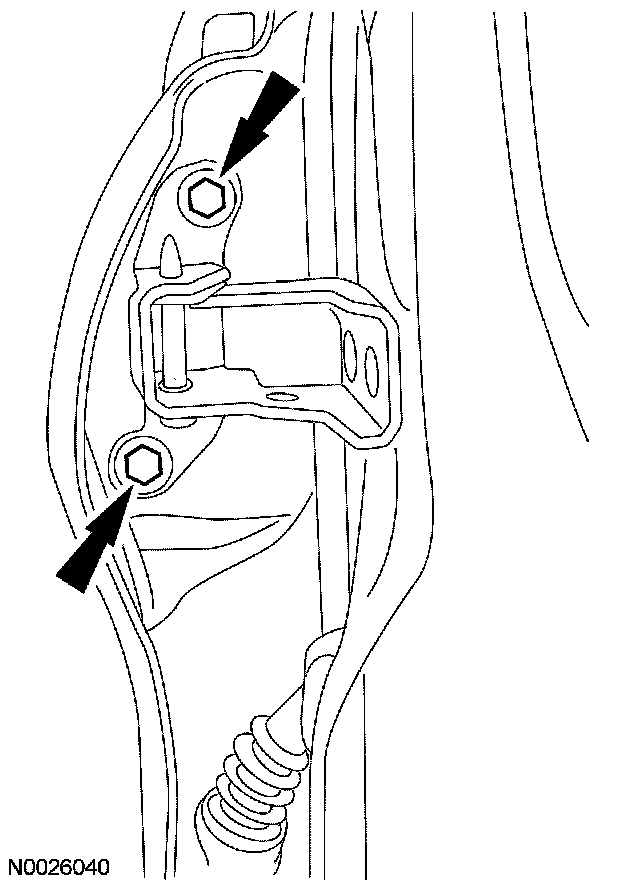

2. Loosen the 4 rear door hinge-to-rear door bolts just enough to permit movement of the door.

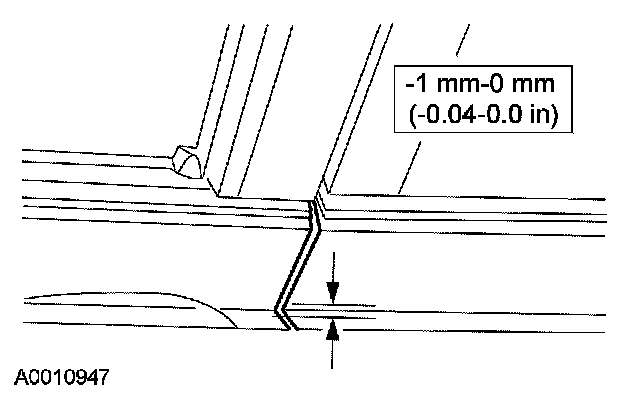

3. Adjust the rear door alignment to specifications.
4. Tighten the 4 rear door hinge-to-rear door bolts.
- Tighten to 30 Nm (22 lb-ft)
