Front Door: Adjustments

DOOR ADJUSTMENT - FRONT

NOTE:
- The door should be adjusted for an even and parallel fit with the body opening and surrounding panels.
- Check the rear door hinge adjustment before adjusting the front door hinge.







1. Mark the position of the 2 front door hinges to use as a reference point.

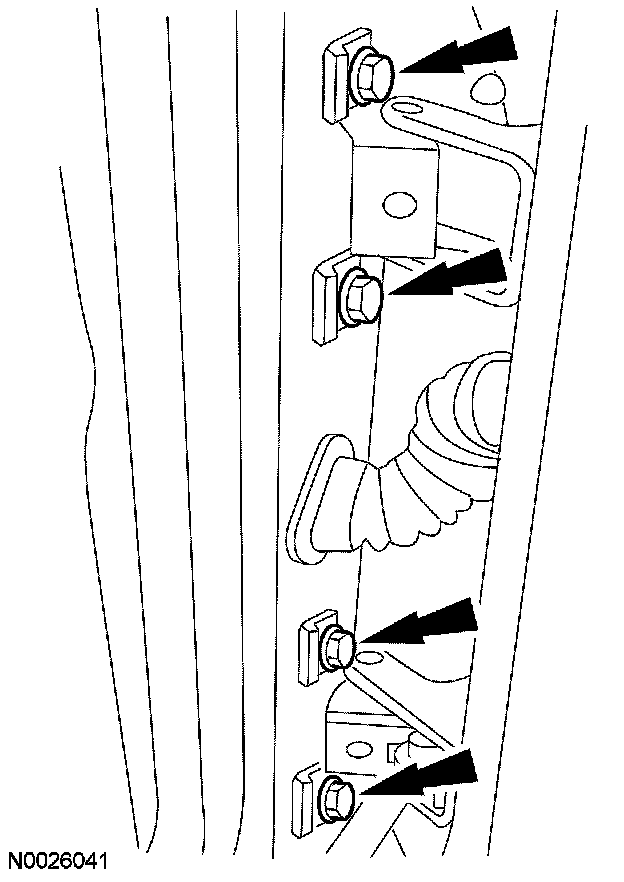

2. Loosen the 4 front door hinge-to-front door bolts just enough to permit movement of the door.







3. Adjust the front door alignment to specifications.
4. Tighten the 4 front door hinge-to-front door bolts.
- Tighten to 30 Nm (22 lb-ft)
