Rear Bumper Reinforcement: Service and Repair

REAR BUMPER

Part 1:

Part 2:

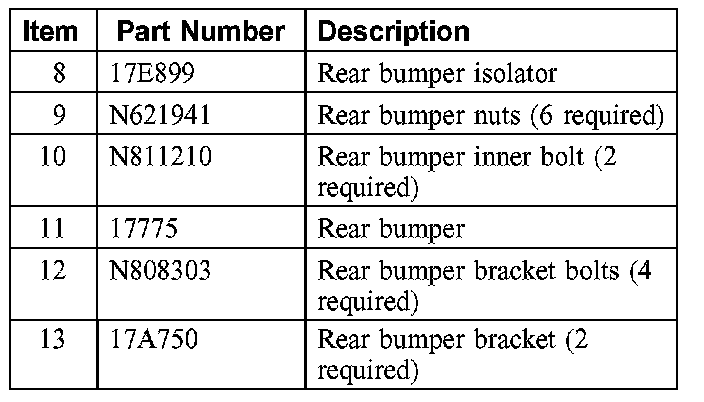

Exploded View

Special Tool(s):

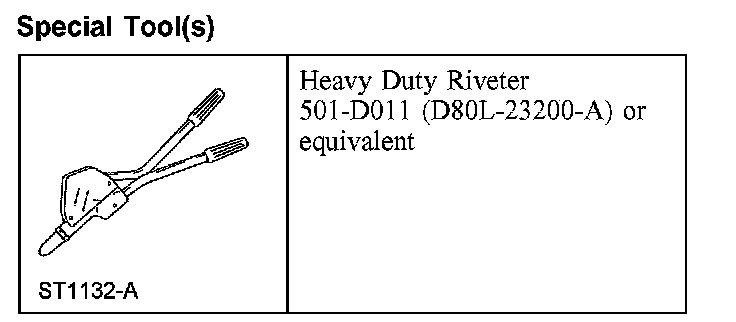

Special Tool(s)

Removal and Installation
1. Remove the rear bumper cover.
2. Remove the 2 rivets and the rear bumper isolator.
3. Remove the 6 rear bumper nuts.
- To install, tighten to 23 Nm (17 lb-ft).

4. Remove the 2 rear bumper inner bolts.
- To install, tighten to 23 Nm (17 lb-ft).

5. NOTE: When installing the bumper isolator, the special tool must be used to install the new rivets.

To install, reverse the removal procedure.
