Speaker: Service and Repair

DOOR SPEAKER







Removal and Installation

All speakers
1. Remove the door trim panel.

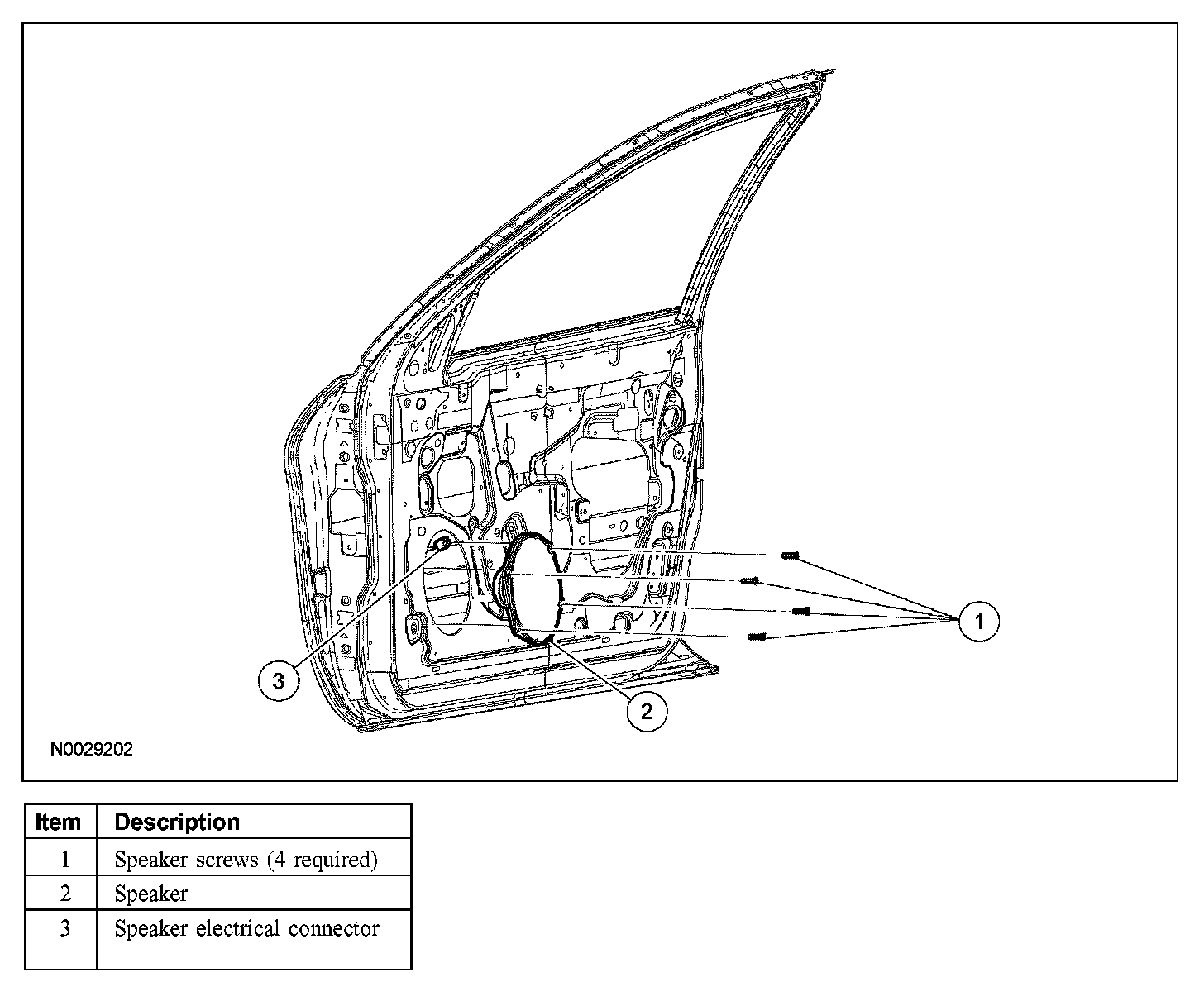

Lower door speaker
2. Remove the 4 screws and the speaker.
- Disconnect the electrical connector.

Upper door speaker

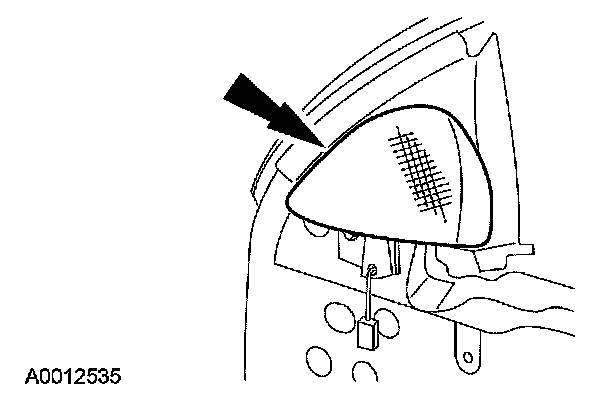

3. Remove the speaker grille cover.

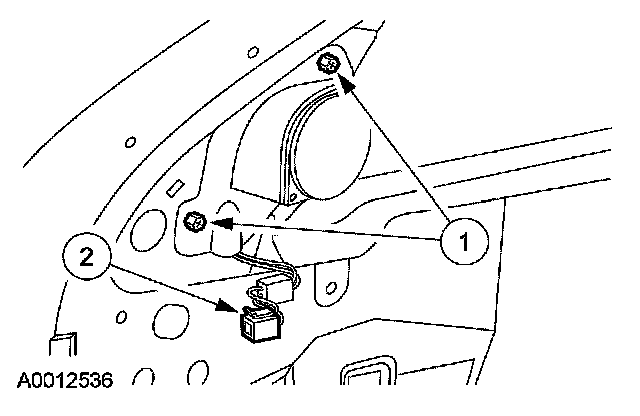

4. Remove the upper door speaker.
1 Remove the 2 screws.
2 Disconnect the electrical connector.

All speakers
5. To install, reverse the removal procedure.
