Radio, Stereo, and Compact Disc: Service and Repair

AUDIO UNIT

Removal and Installation
1. Remove the LH luggage compartment trim panel.
2. Disconnect the wiring connectors and the antenna lead-in cable from the audio unit.

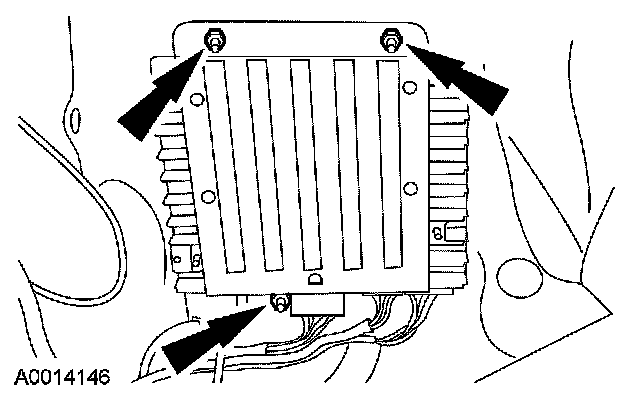

3. Remove the 3 nuts and the audio unit.
4. To install, reverse the removal procedure.
