Compact Disc (CD) Changer - Six Passenger Sedan

COMPACT DISC (CD) CHANGER - SIX PASSENGER SEDAN

Removal and Installation
1. Remove the luggage compartment scuff plate.
2. Remove the LH luggage compartment trim panel.

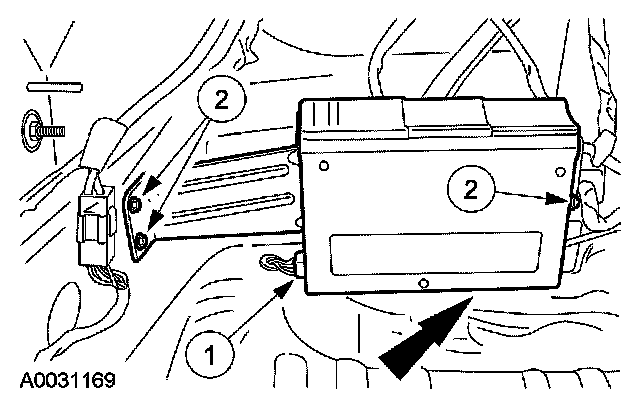

3. Remove the CD changer.
1 Disconnect the electrical connector.
2 Remove the 3 screws.

4. To install, reverse the removal procedure.
