Compact Disc (CD) Changer - Console

COMPACT DISC (CD) CHANGER - CONSOLE

Removal and Installation

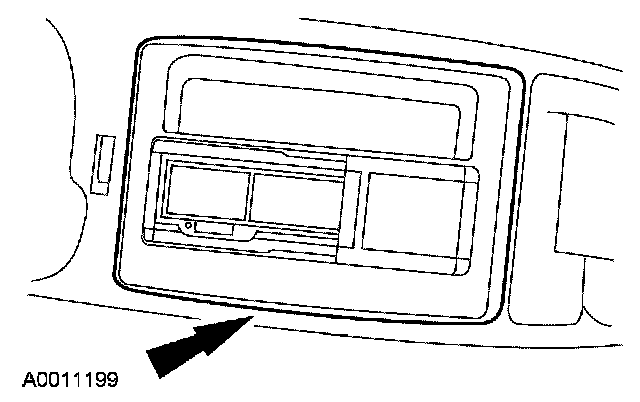

1. Remove the CD changer cover.

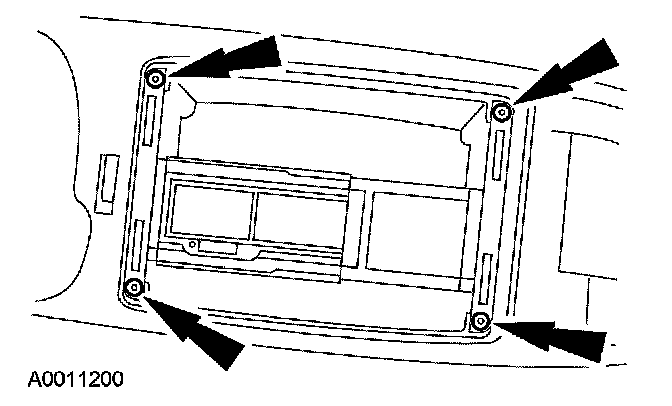

2. Remove the 4 screws and the CD changer.
3. To install, reverse the removal procedure.
