Test A: The Alarm System Does Not Disarm - From Driver Door

PINPOINT TEST A: THE ALARM SYSTEM DOES NOT DISARM - FROM DRIVER DOOR

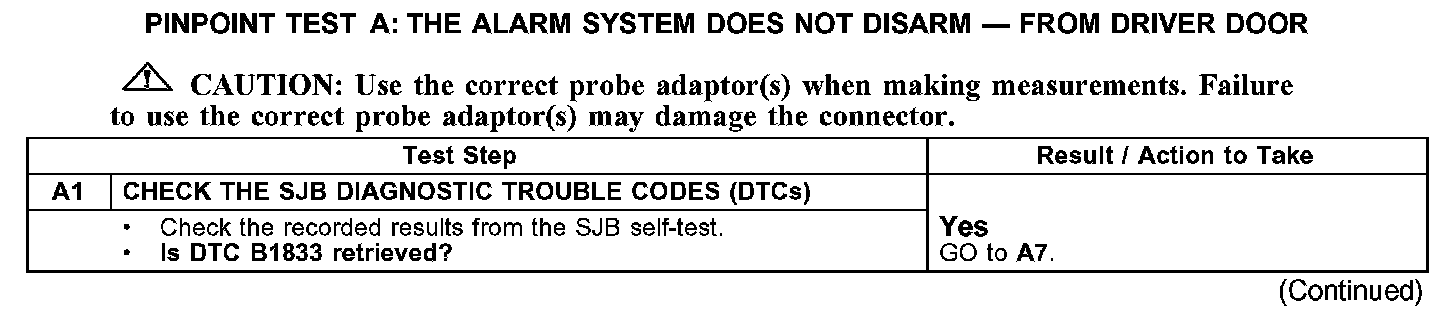

A1:

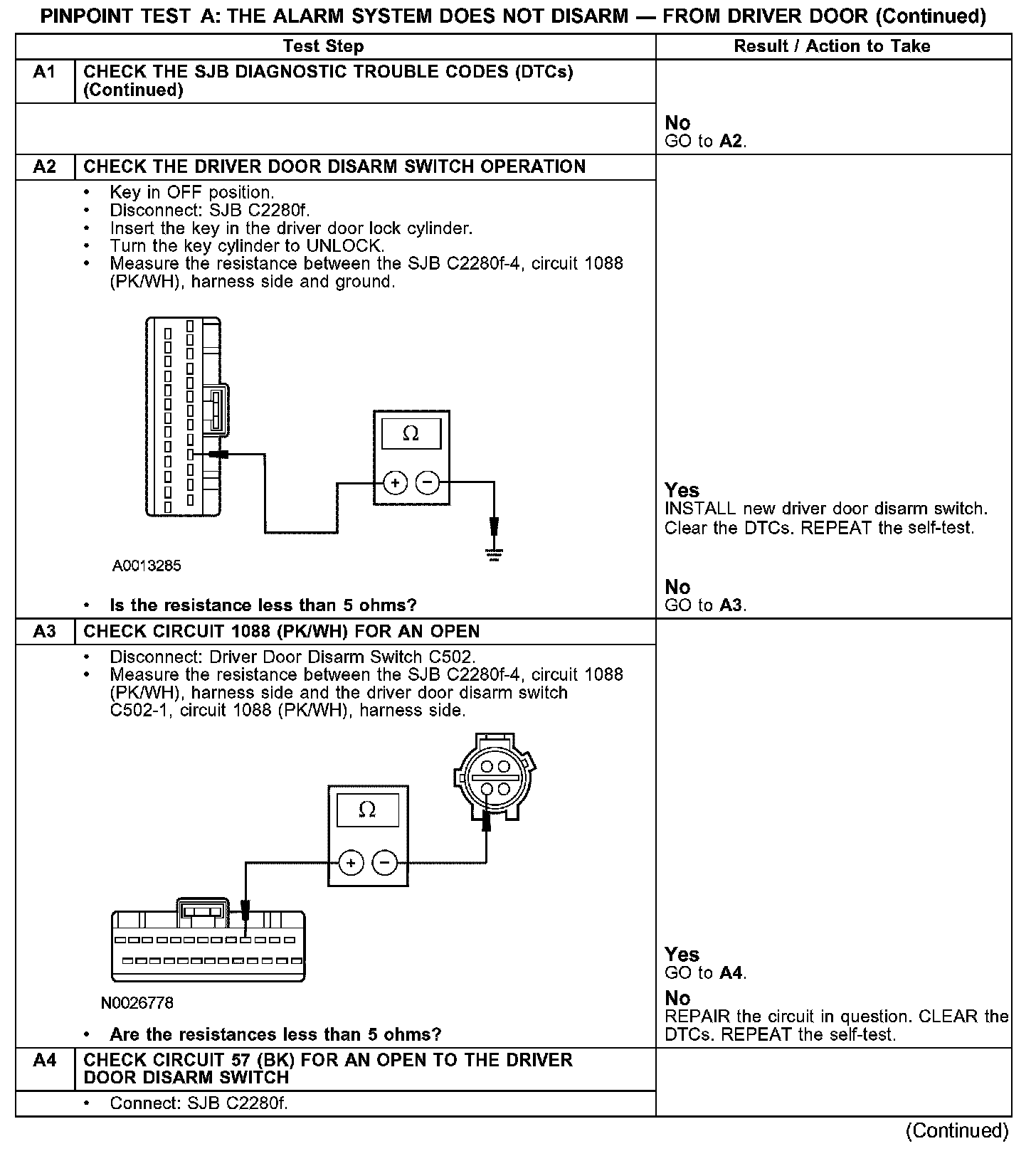

A1-A4:

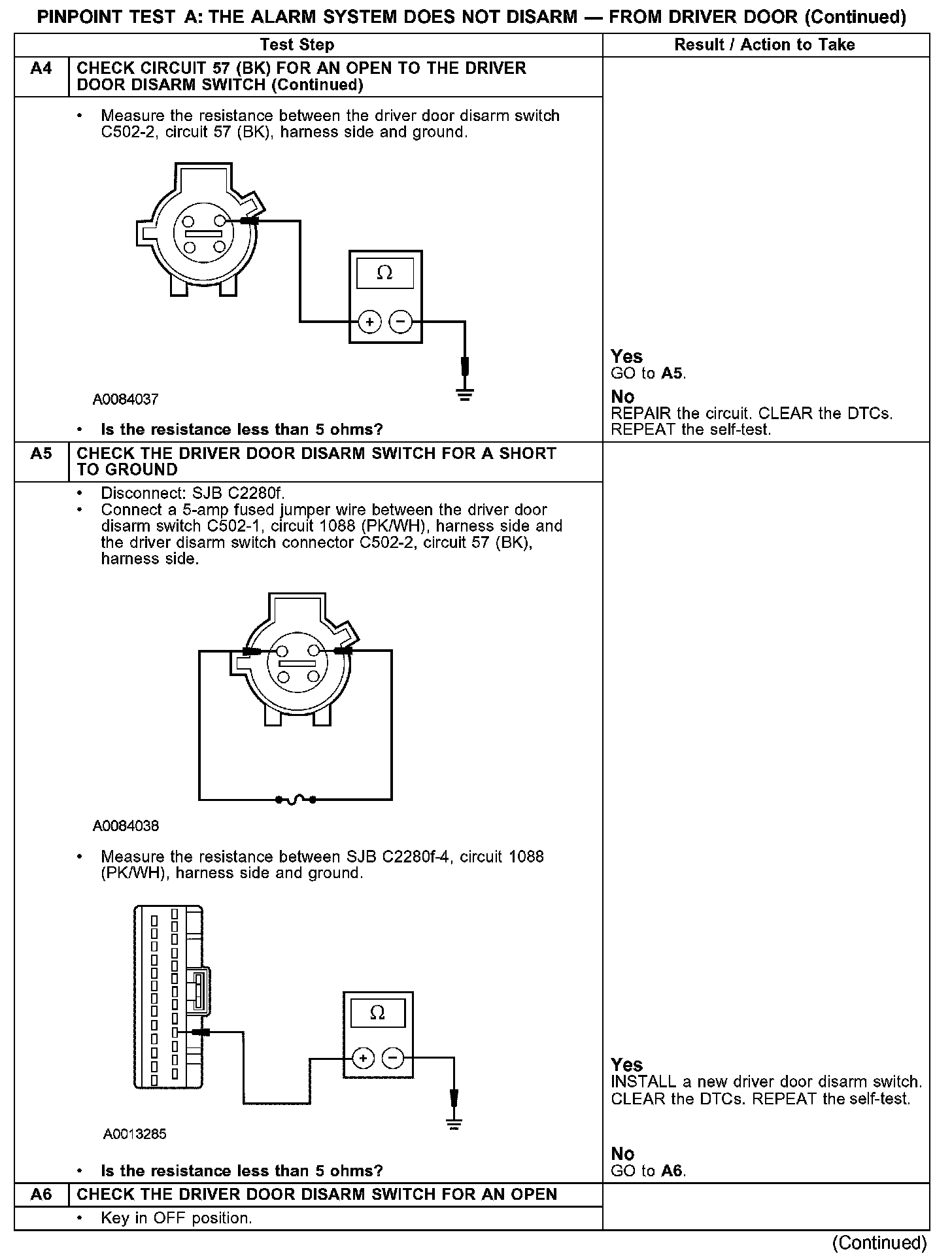

A4-A6:

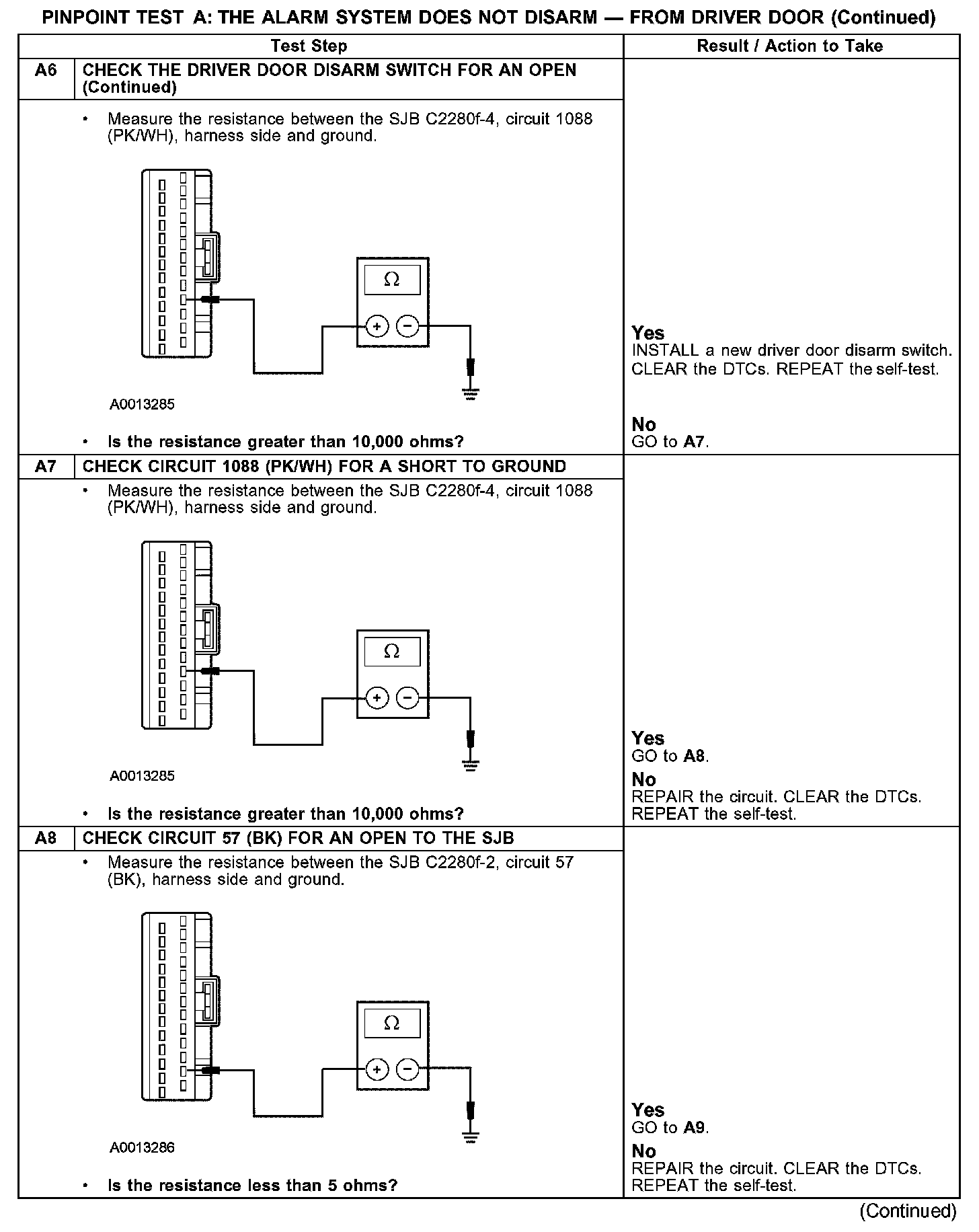

A6-A8:

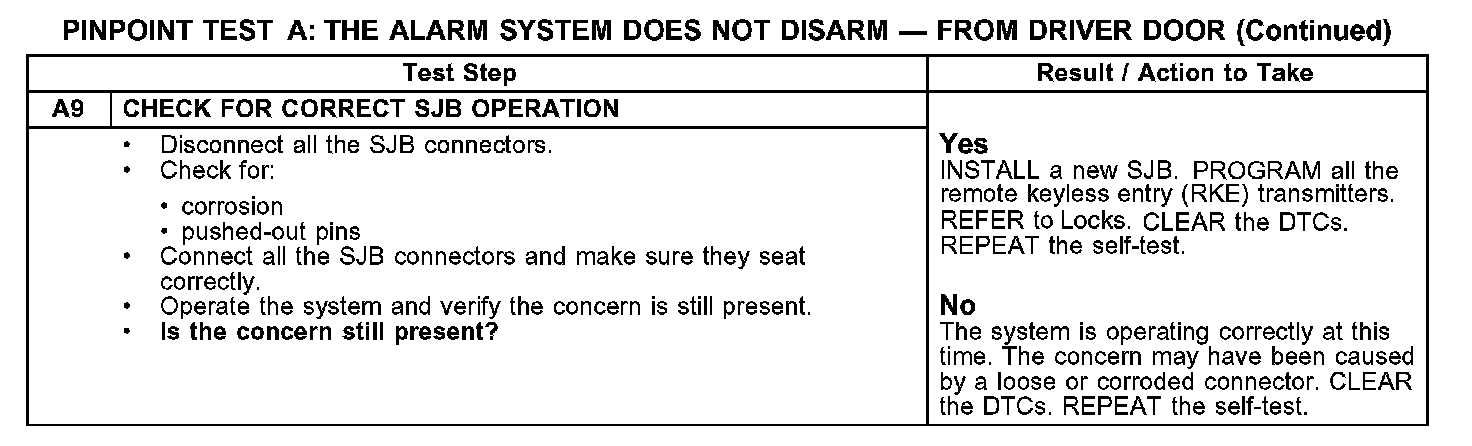

A9:






Normal Operation
The smart junction box (SJB) monitors the driver door disarm switch on circuit 1088 (PK/WH). The disarm signal occurs when the driver door lock key cylinder is turned to unlock causing the driver door disarm switch to complete the circuit through circuit 57 (BK). This signals the SJB to cancel the alarm function.

Possible Causes
- circuit 57 (BK) open
- circuit 1088 (PK/WH) open
- driver door disarm switch
- SJB
