Door Sensor/Switch (For Alarm): Service and Repair

DOOR DISARM SWITCH







Removal and Installation
1. Disconnect the battery.
2. Remove the door trim panel.
3. Remove the watershield.

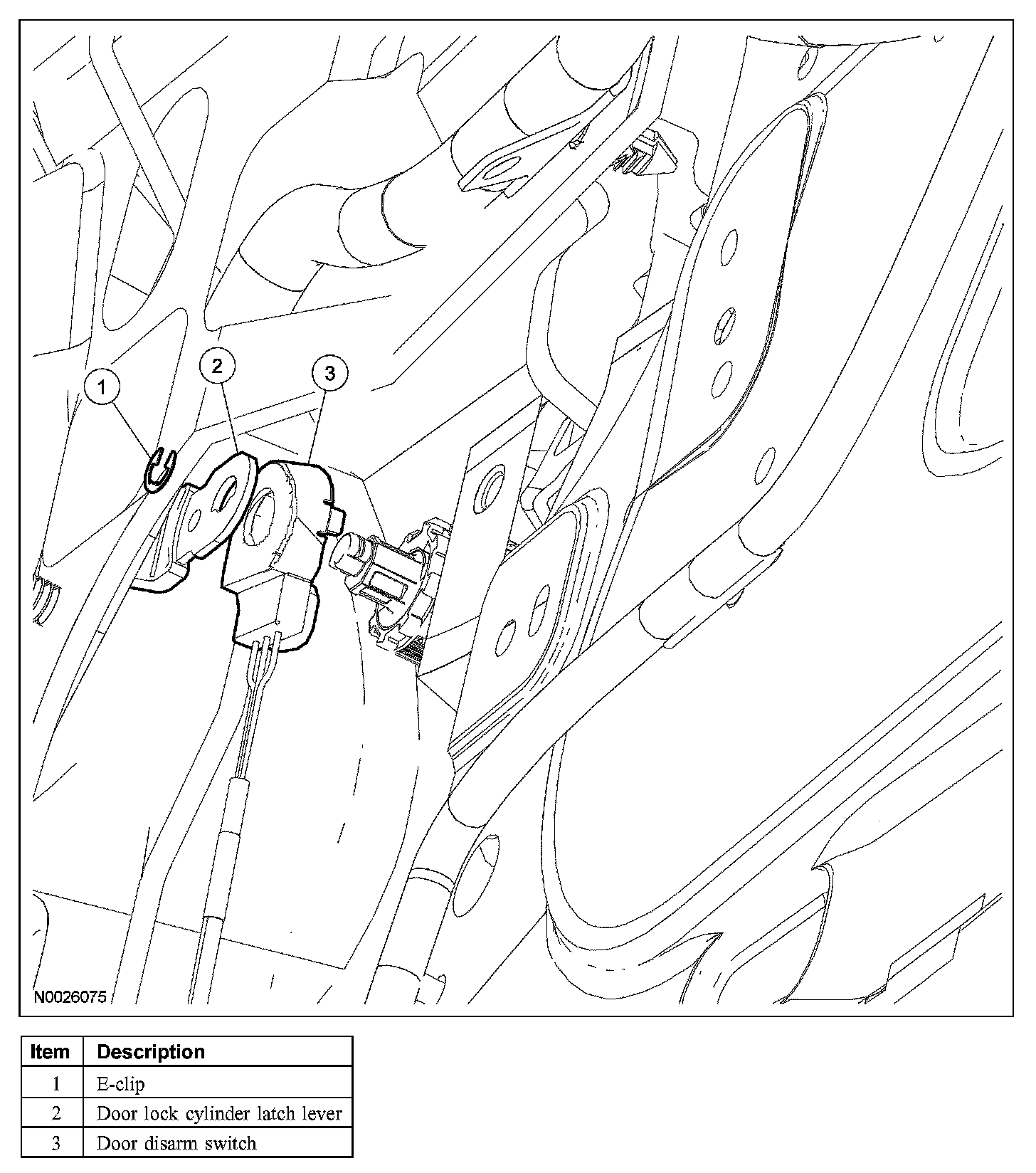

4. Remove the E-clip and disconnect the latch lever from the door lock cylinder.







5. NOTE: The door disarm switch can be installed in more than 1 position. Before removing the switch from the cylinder it may be necessary to mark the position of the switch in relation to the lock cylinder.

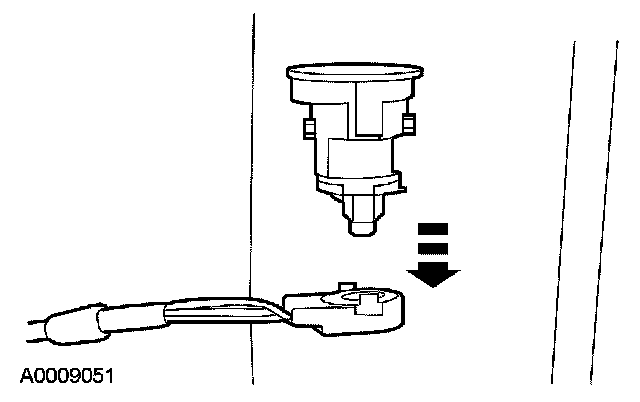

Remove the door disarm switch.
- Disconnect disarm switch electrical connector.

6. NOTE: The door disarm switch can be installed in more than 1 position. Use the reference marks applied in the removal procedure to index the new door disarm switch to the lock cylinder.

To install, reverse the removal procedure.
