Antenna, Radio: Service and Repair

ANTENNA







Removal and Installation
1. Remove the LH luggage compartment trim panel.

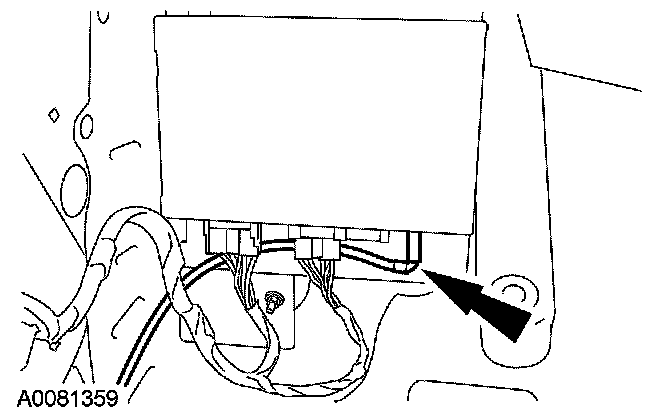

2. Disconnect the antenna lead-in cable from the audio unit.

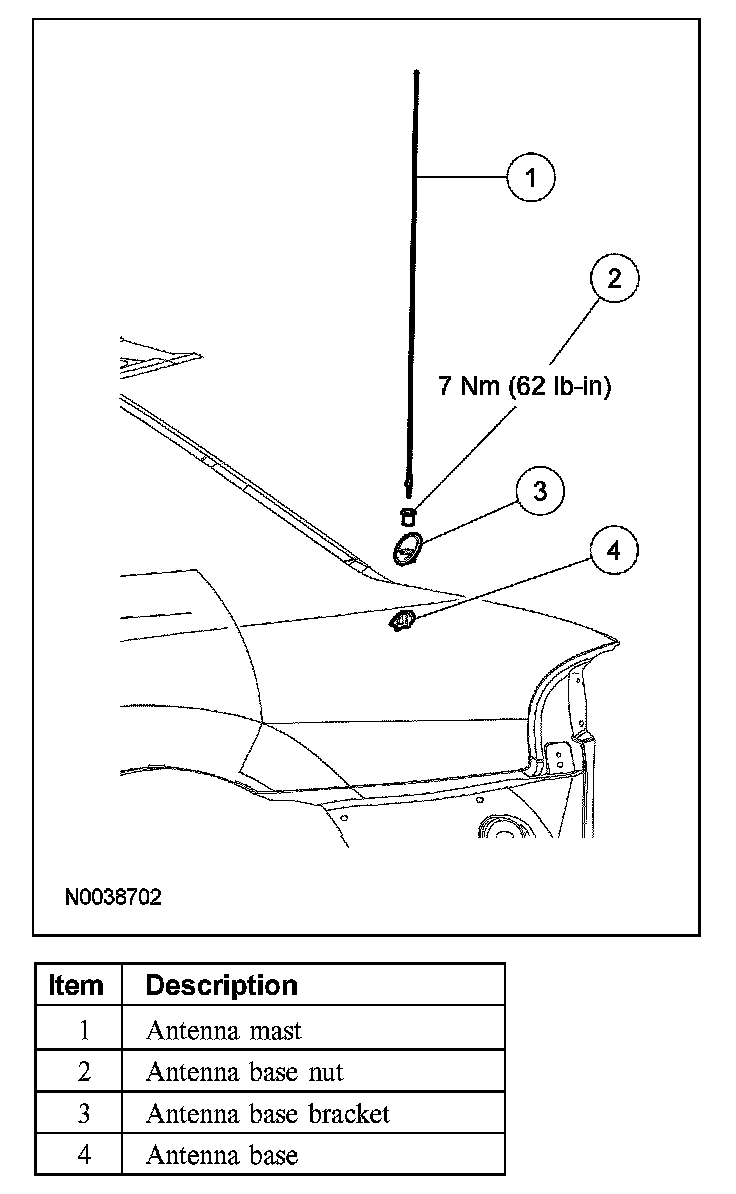

3. Remove the antenna mast.
4. Remove and discard the antenna base nut.
- To install, tighten the new nut to 7 Nm (62 lb-in).







5. Remove the nut and bolt from the antenna base bracket.
- To install, tighten to 11 Nm (8 lb-ft).

6. Remove the antenna base.
- Disconnect the antenna lead-in cable.

7. To install, reverse the removal procedure.
