Test G: The Wipers Do Not Operate Correctly In the Mist Position

PINPOINT TEST G: THE WIPERS DO NOT OPERATE CORRECTLY IN THE MIST POSITION

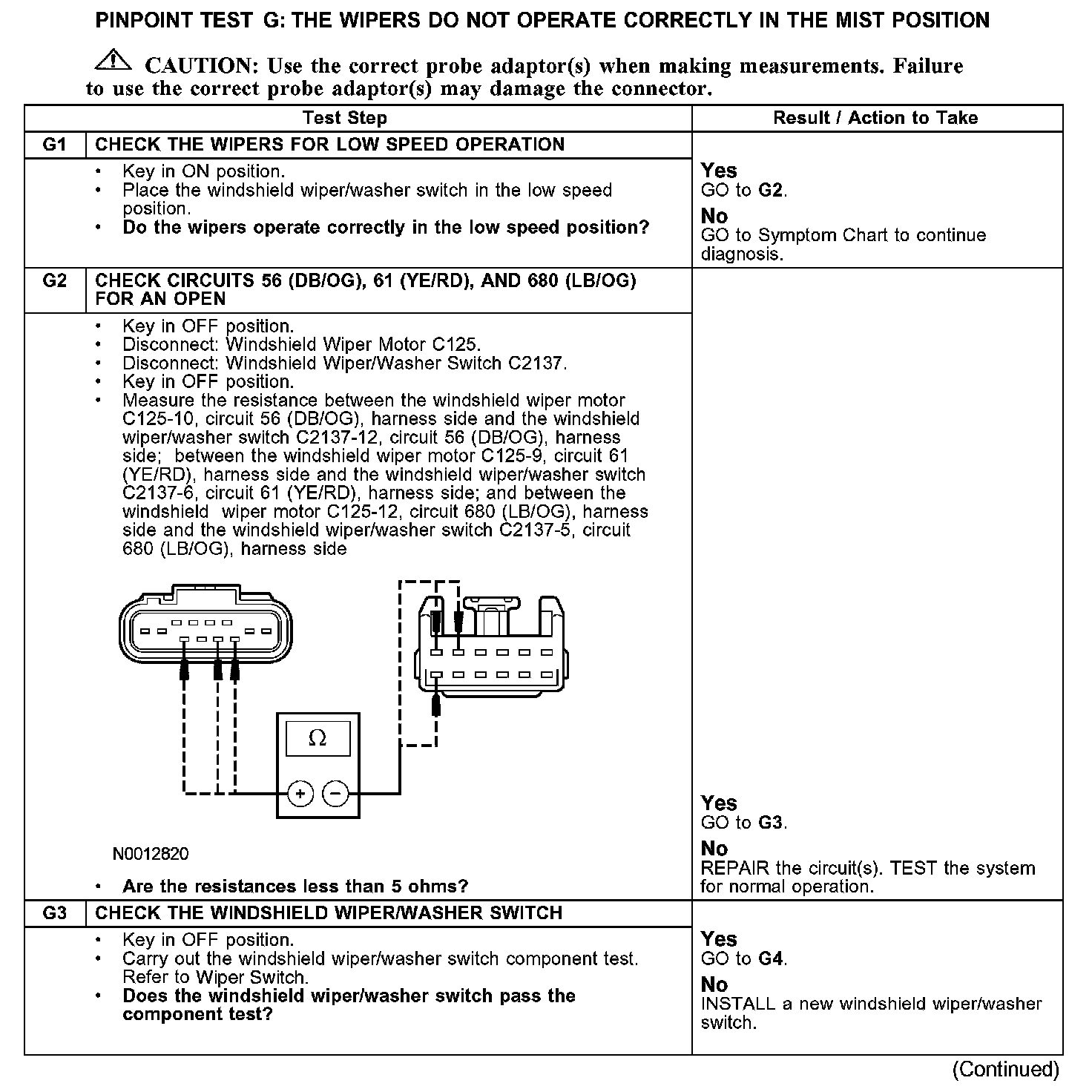

G1-G3:

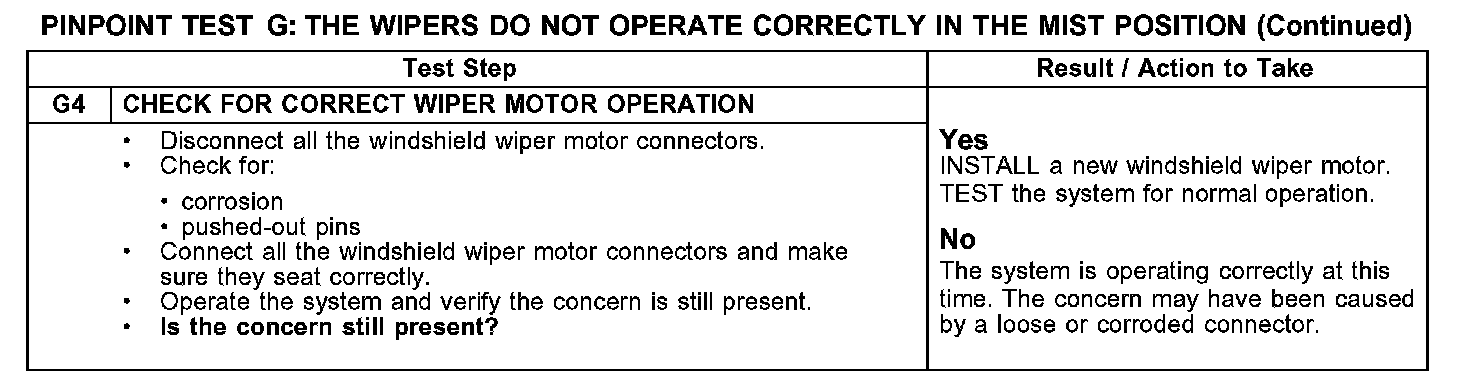

G4:

Normal Operation
The windshield wiper motor receives inputs from the windshield wiper/washer switch circuits 56 (DB/OG), 63 (RD), and 680 (LB/OG). The module (internal) controls the wiper run/park relay (internal) using internal circuitry to control the motor in conjunction with the HI/LO relay (internal).

Possible Causes
- circuit 56 (DB/OG) open
- circuit 61 (YE/RD) open
- circuit 680 (LB/OG) open
- windshield wiper/washer switch
- windshield wiper motor
