Test F: The Short Drop Windows Do Not Operate Correctly

PINPOINT TEST F: THE SHORT DROP WINDOWS DO NOT OPERATE CORRECTLY

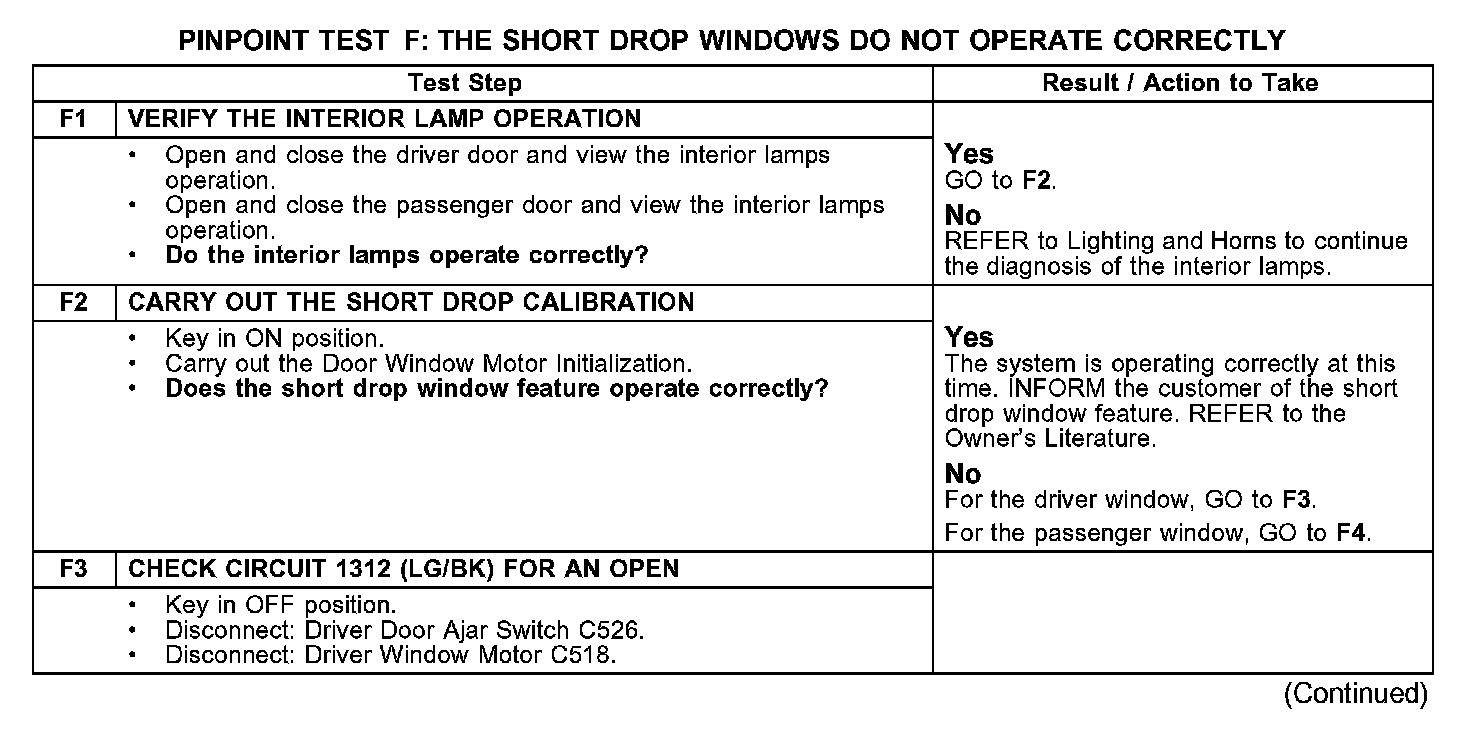

F1-F3:

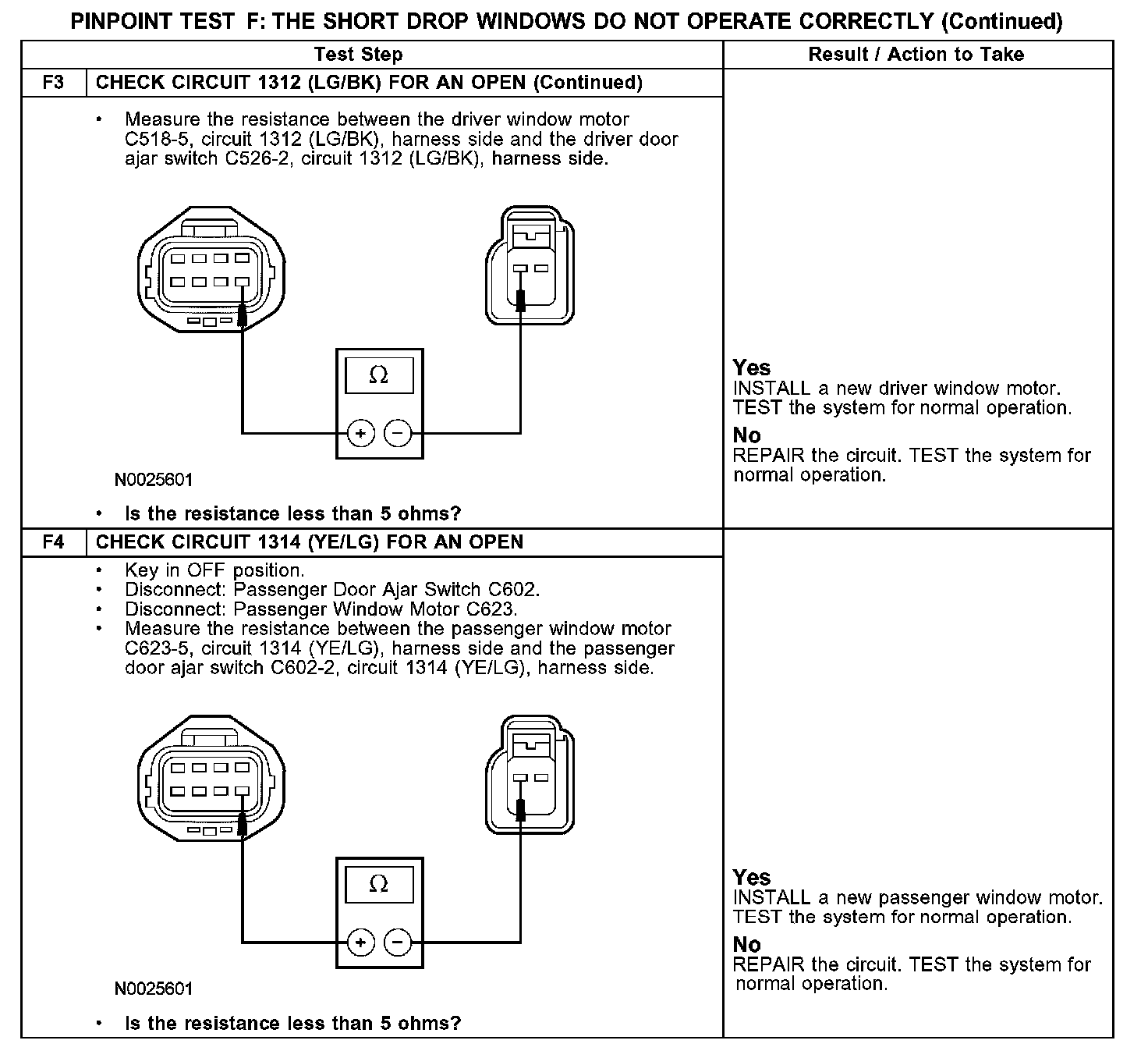

F3-F4:

Normal Operation
The short drop window feature is activated when one (or both) of the doors are opened, which opens a door ajar switch. When the driver door is opened (opening the driver door ajar switch), a signal on circuit 1312 (LG/BK) is interpreted by the driver window motor that the driver door is open. The driver window motor then carries out the short drop function on the driver window. When the passenger door is opened (opening the passenger door ajar switch), a signal on circuit 1314 (YE/LG) is interpreted by the passenger window motor that the passenger door is open. The passenger window motor then carries out the short drop function on the passenger window. This feature is on both the coupe and the convertible.

Possible Causes
- circuit 1312 (LG/BK) open
- circuit 1314 (YE/LG) open
- driver window motor
- passenger window motor
- door ajar switch
- window motor not initialized
