Test B: A Single Power Window Is Inoperative/Does Not Operate Correctly - Passenger

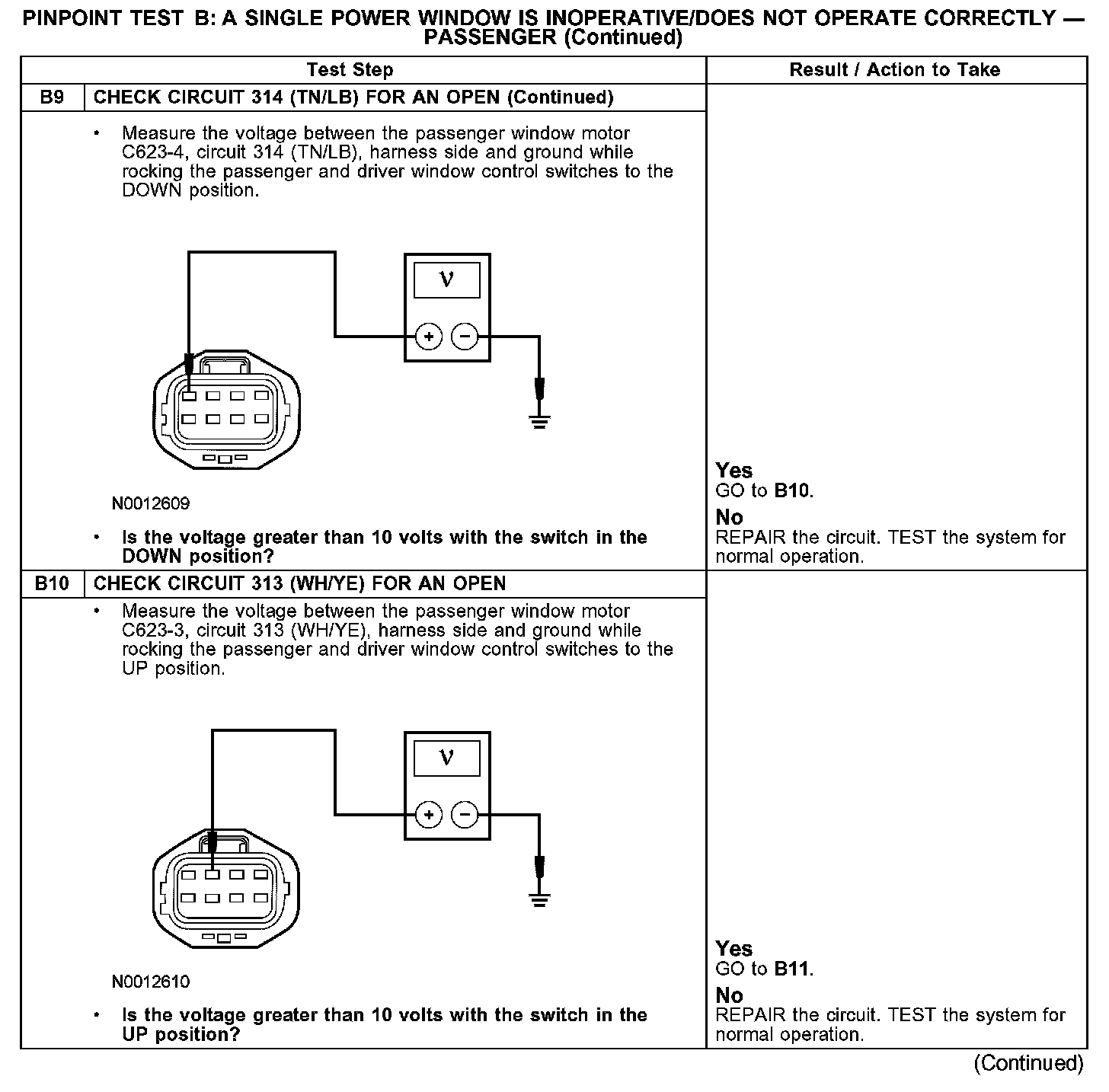

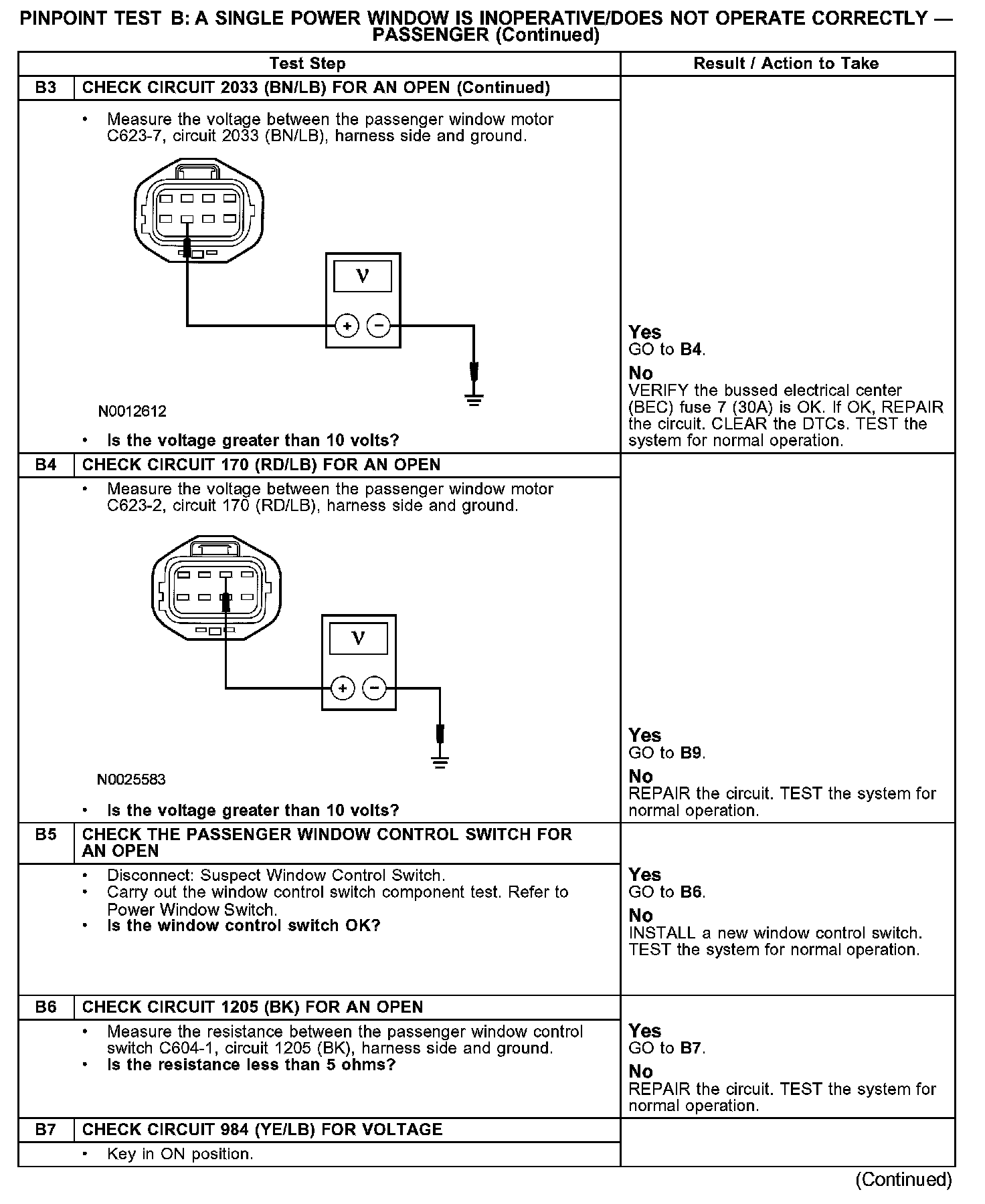

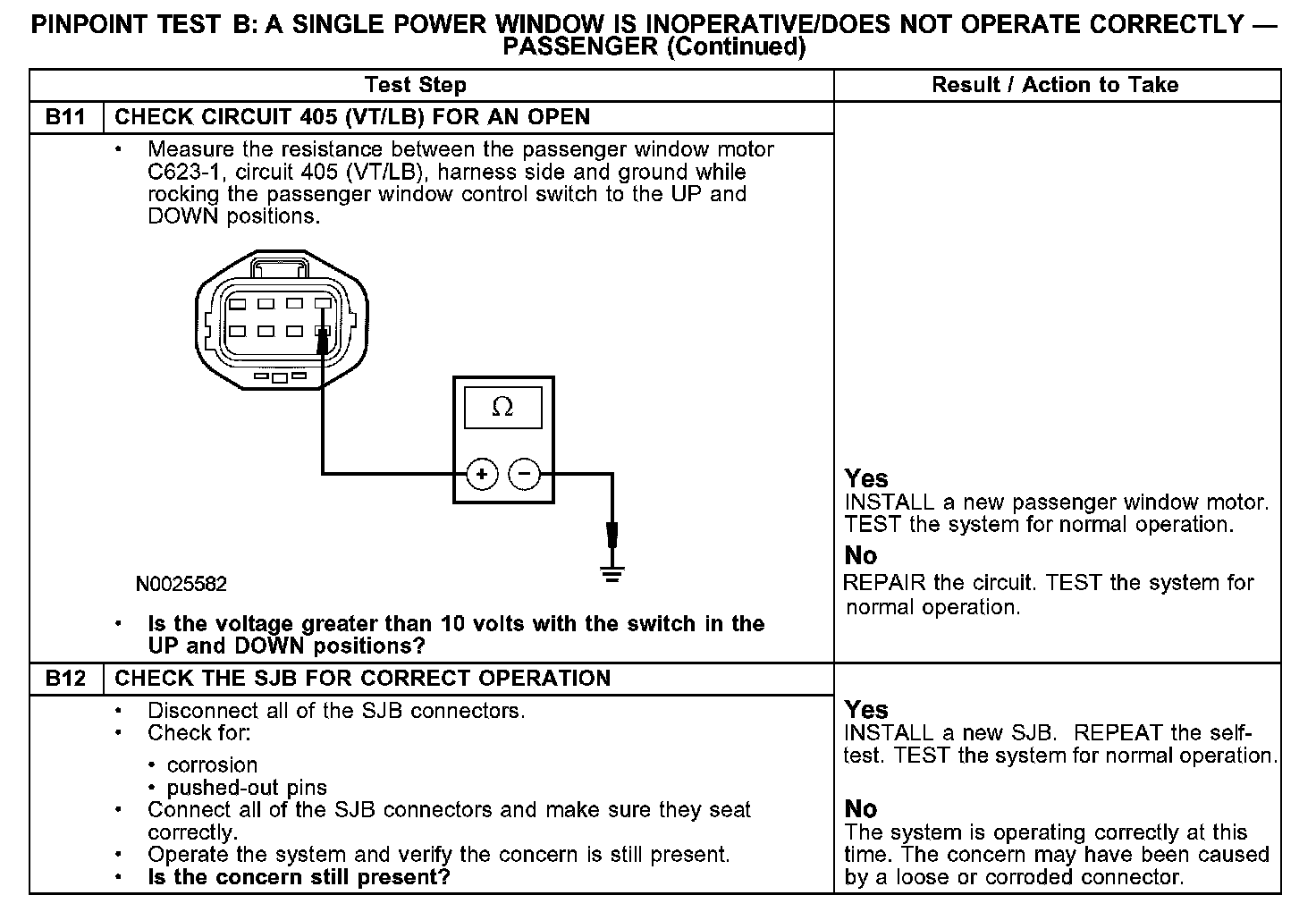

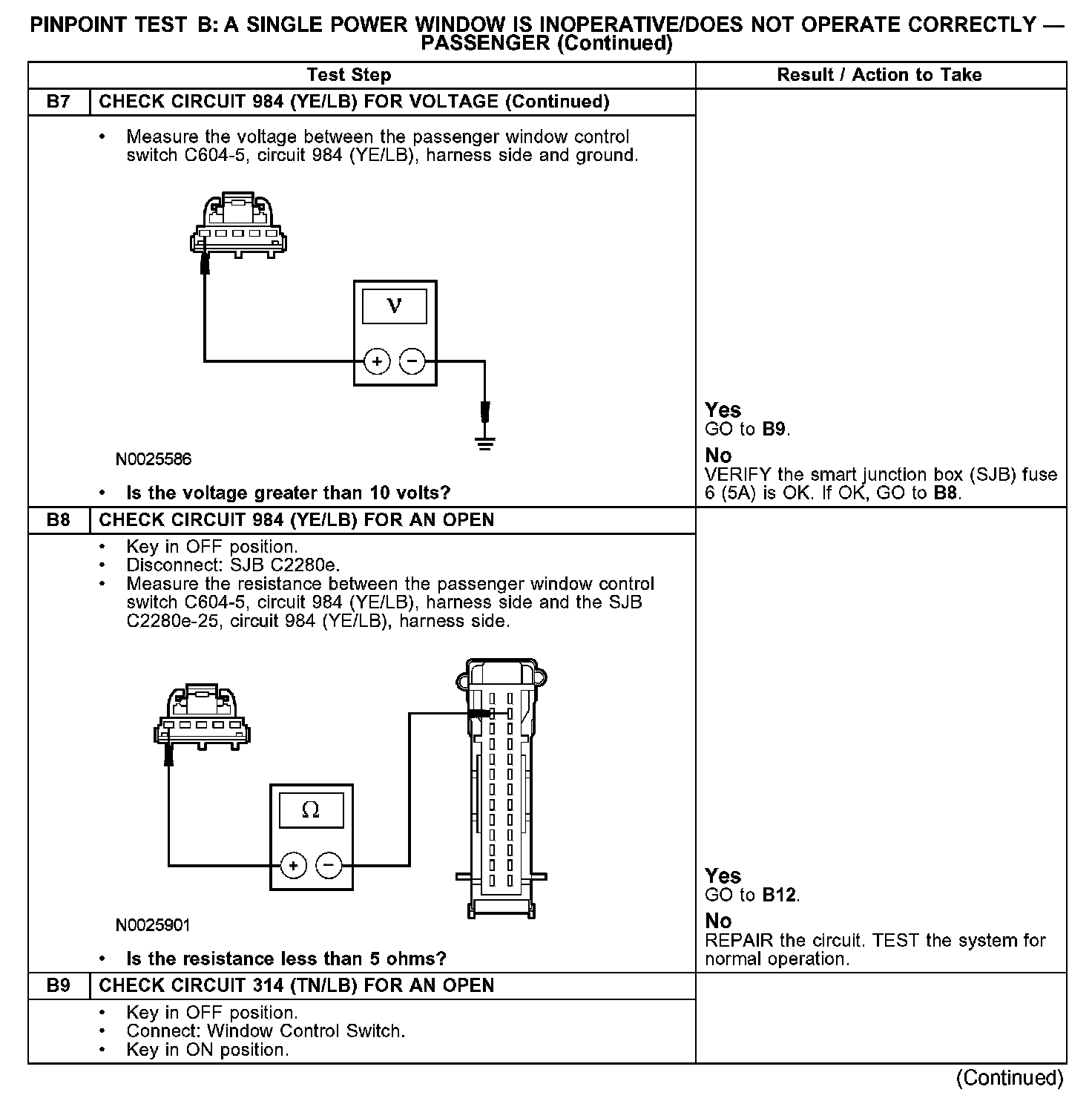

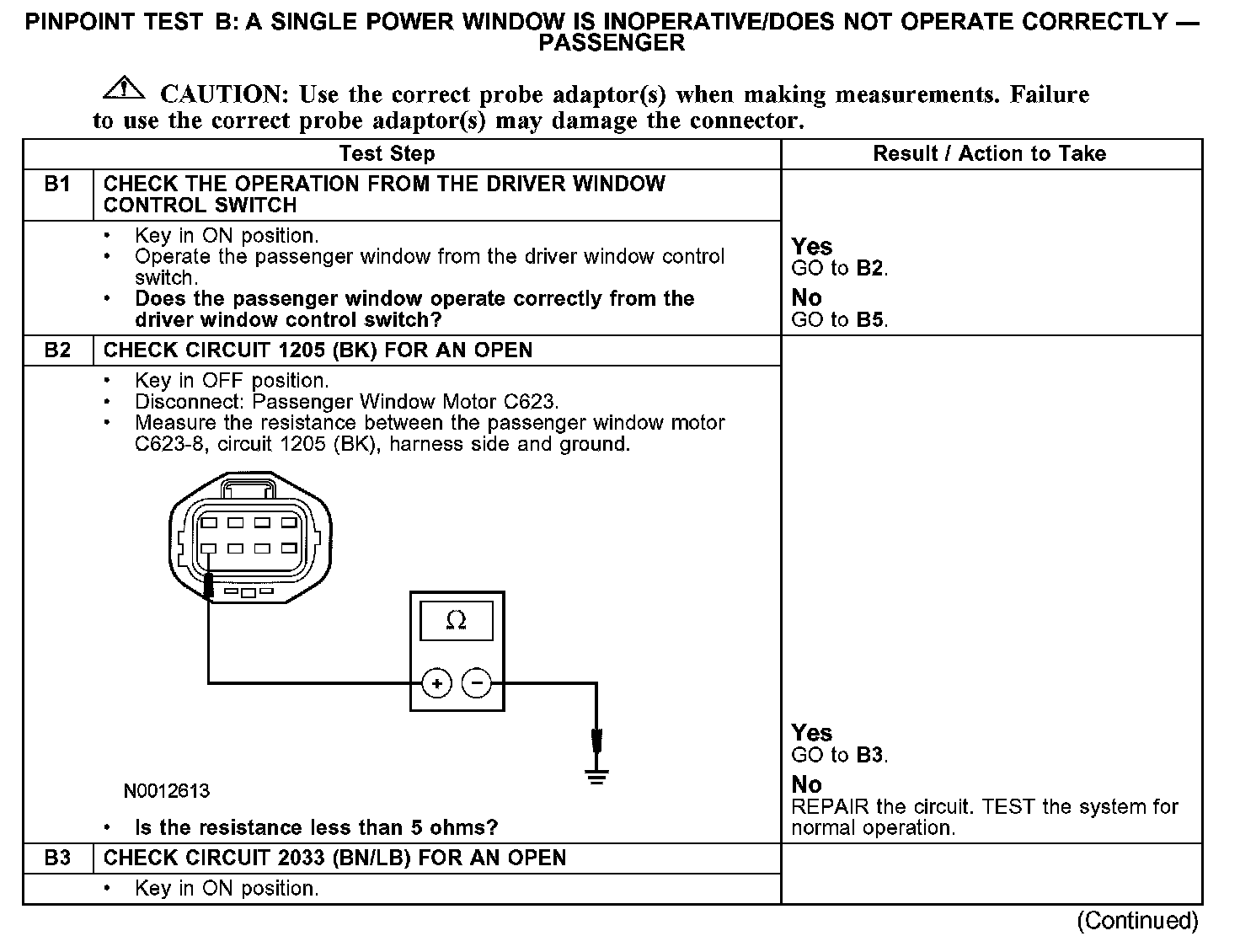

PINPOINT TEST B: A SINGLE POWER WINDOW INOPERATIVE/DOES NOT OPERATE CORRECTLY - PASSENGER

B1-B3:

B3-B7:

B7-B9:

B9-B10:

B11-B12:

Normal Operation
With the key in the ON position (or with the delayed accessory function active), pulling the window control switch up provides voltage on circuit 313 (WH/YE) to the window motor. Pressing the window control switch down provides voltage on circuit 314 (TN/LB) to the window motor. Depending on which circuit has voltage supplied determines which direction the window motor operates. The window motor operates in the commanded direction to move the window up or down.

Possible Causes
- fuse(s)
- circuit 170 (RD/LB) open
- circuit 313 (WH/YE) open
- circuit 314 (TN/LB) open
- circuit 405 (VT/LB) open
- circuit 984 (YE/LB) open
- circuit 1205 (BK) open
- circuit 2033 (BN/LB) open
- passenger window control switch
- driver window control switch
- window motor
- smart junction box (SJB)
