Test A: A Single Power Window Is Inoperative/Does Not Operate Correctly - Driver

PINPOINT TEST A: A SINGLE POWER WINDOW IS INOPERATIVE/DOES NOT OPERATE CORRECTLY - DRIVER

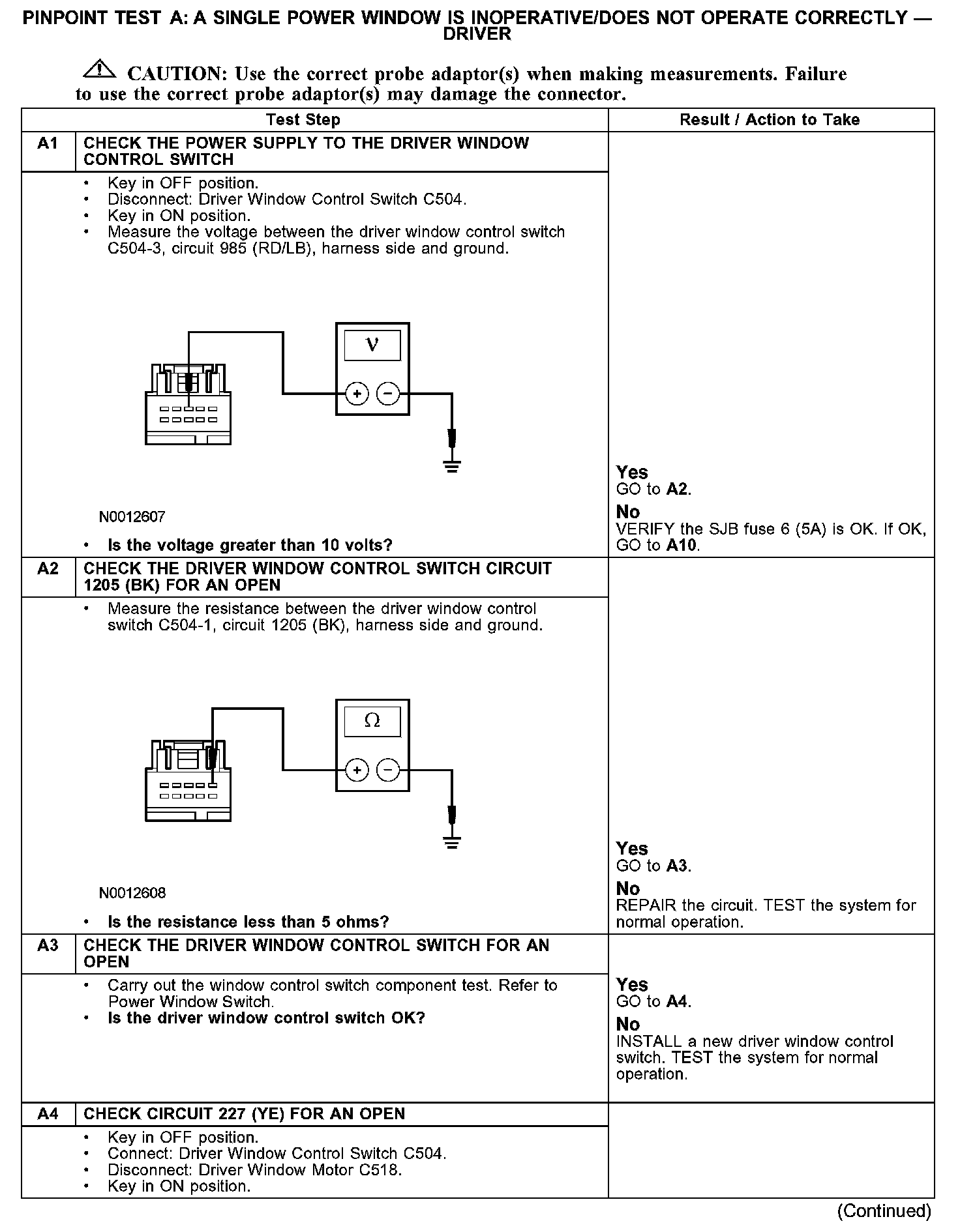

A1-A4:

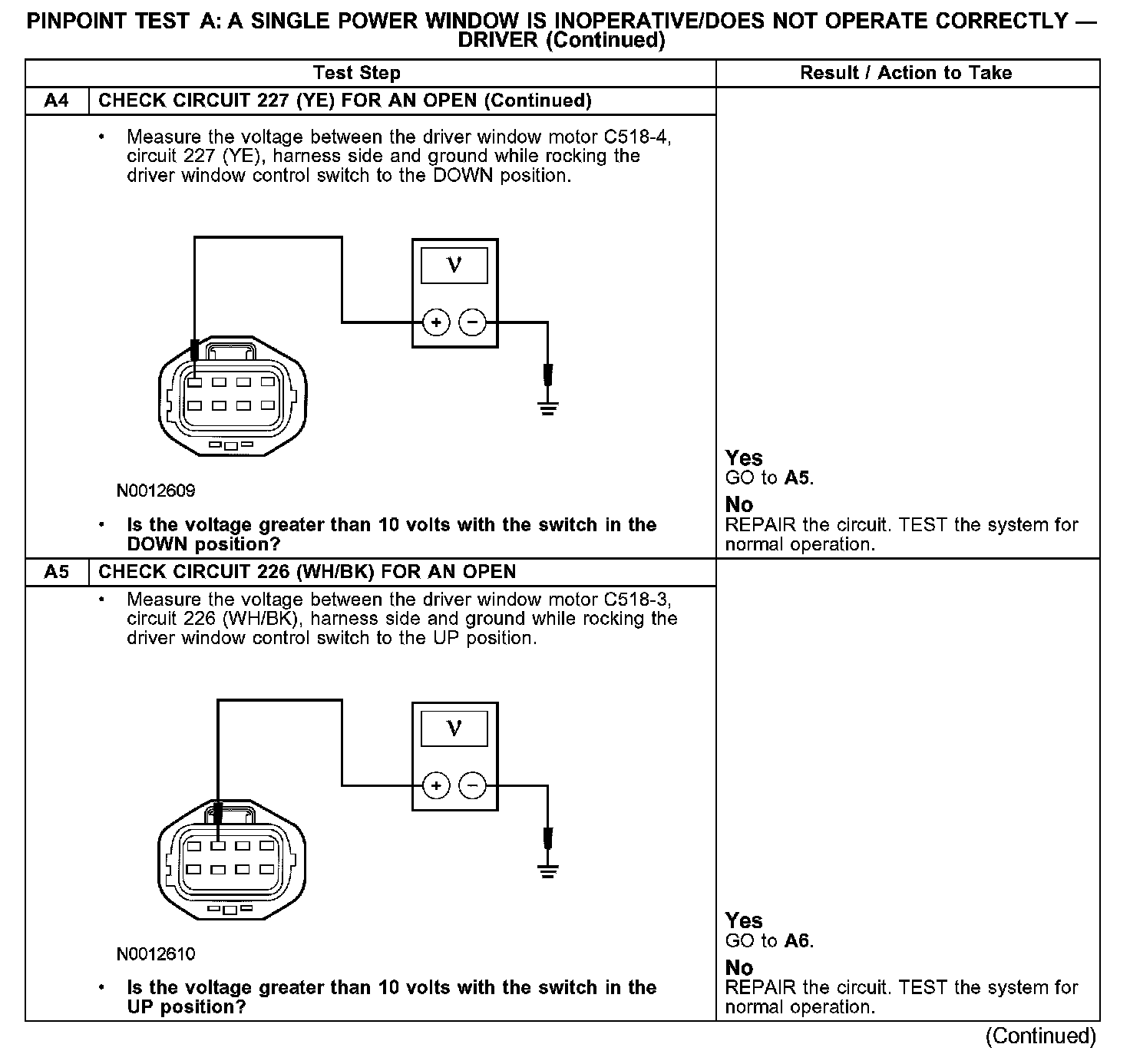

A4-A5:

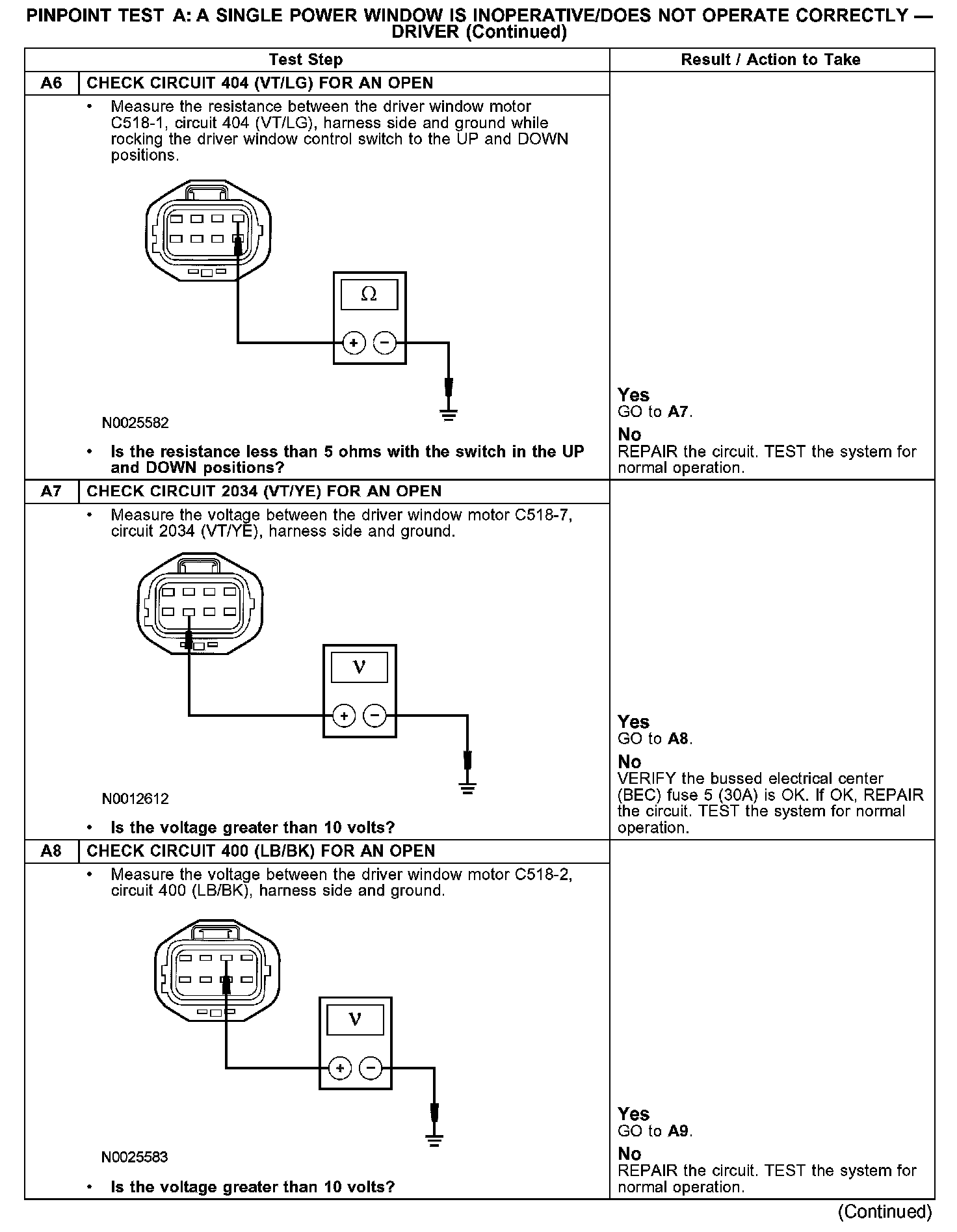

A6-A8:

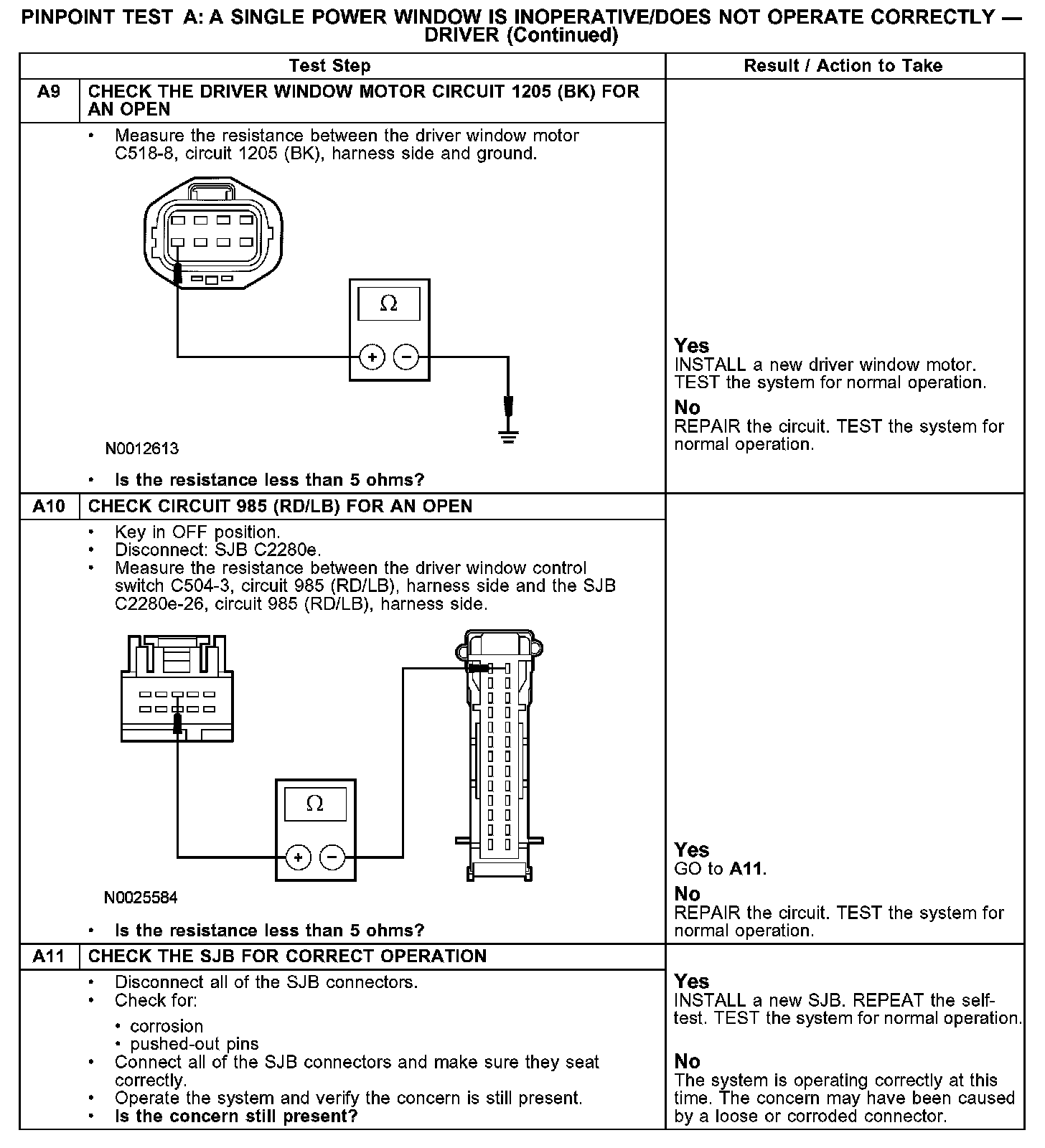

A9-A11:

Normal Operation
With the key in the ON position (or with the delayed accessory function active), pulling the window control switch up provides voltage on circuit 226 (WH/BK) to the window motor. Pressing the window control switch down provides voltage on circuit 227 (YE) to the window motor. Depending on which circuit has voltage supplied determines which direction the window motor operates. The window motor operates in the commanded direction to move the window up or down.

Possible Causes
- fuse
- circuit 226 (WH/BK) open
- circuit 227 (YE) open
- circuit 400 (LB/BK) open
- circuit 404 (VT/LG) open
- circuit 985 (RD/LB) open
- circuit 1205 (BK) open
- circuit 2034 (VT/YE) open
- ignition switch
- window motor
- window control switch
- smart junction box (SJB)
- bussed electrical center (BEC)
