Axle Housing

Axle Housing
Removal and Installation
All vehicles

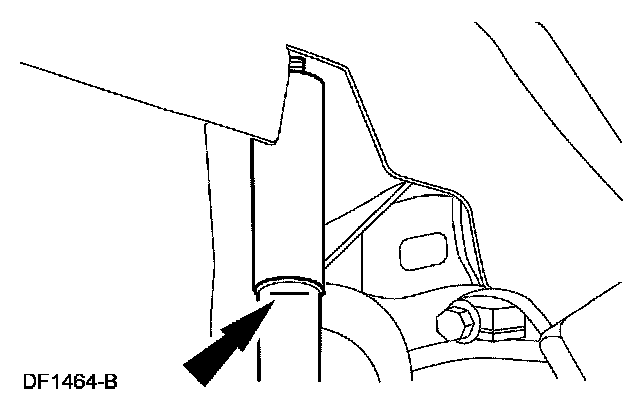

1. CAUTION: The vehicle must be on level ground and at curb height.

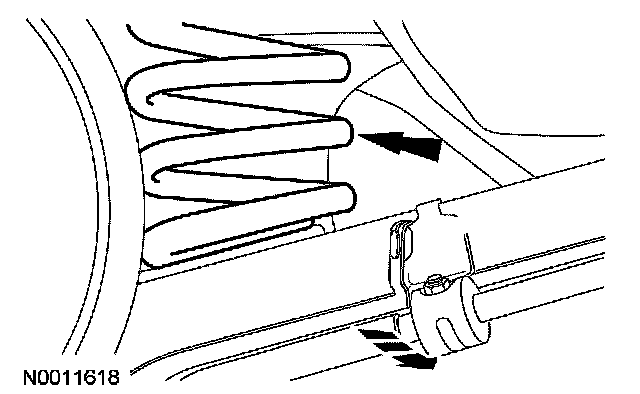

Mark the rear shock absorbers relative to their protective sleeve.
^ During installation, raise the suspension to this reference mark before tightening the suspension fasteners.





2. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle/Application and ID
3. Remove the rear wheel and tire assemblies.

Convertibles

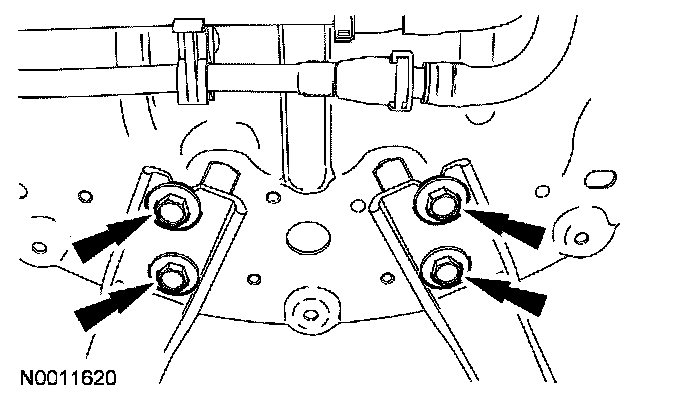

4. Remove and discard the 4 rear support brace bolts.
^ To install, tighten to 63 Nm (46 ft. lbs.).

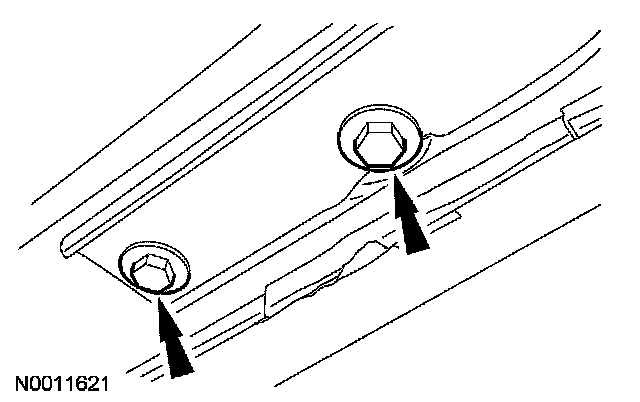

5. Remove and discard the 2 upper support brace bolts.
^ To install, tighten to 63 Nm (46 ft. lbs.).

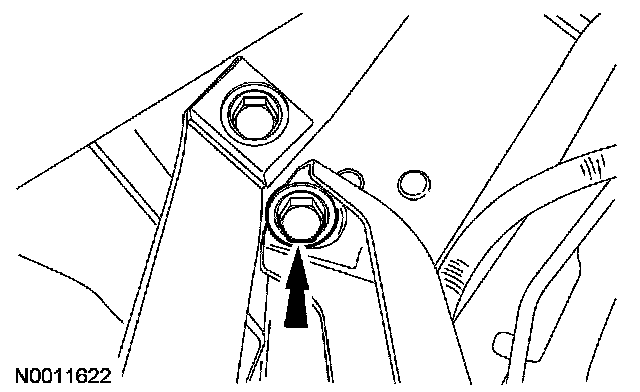

6. Remove and discard the 4 front support brace bolts.
^ To install, tighten to 63 Nm (46 ft. lbs.).





All vehicles

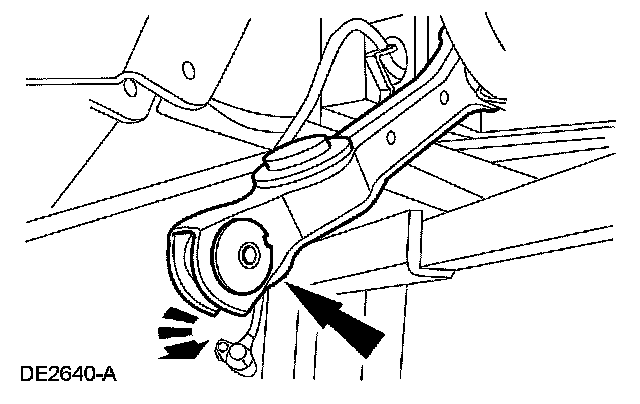

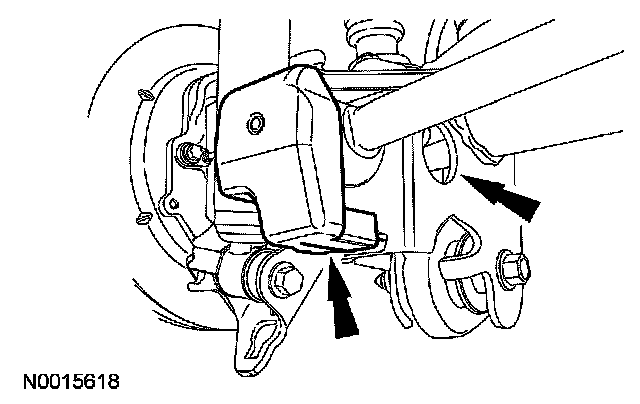

7. NOTE: Using 2 screwdrivers through the access hole, depress the tabs of the trackbar cover retaining clip.

Remove the trackbar cover.








8. NOTE: The suspension must be at ride height when tightening suspension components.

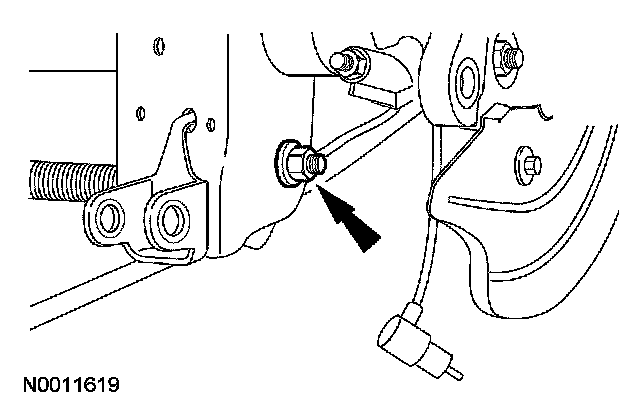

Remove the trackbar bolts and trackbar flag nuts, then the trackbar.
^ Discard the trackbar bolts and trackbar flag nuts.
^ To install, tighten to 175 Nm (129 ft. lbs.).

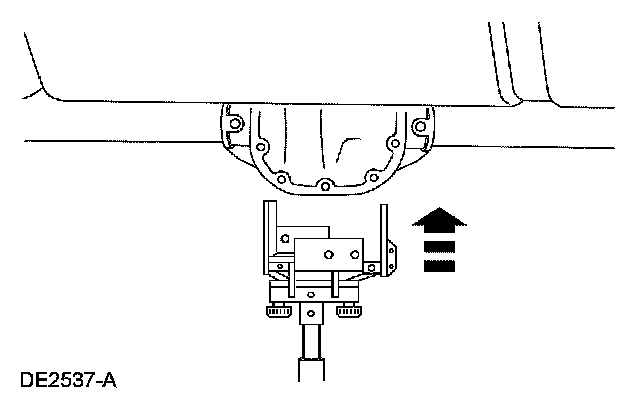

9. CAUTION: Secure the differential housing to the transmission jack with a suitable strap.

Support the differential housing with a suitable transmission jack.

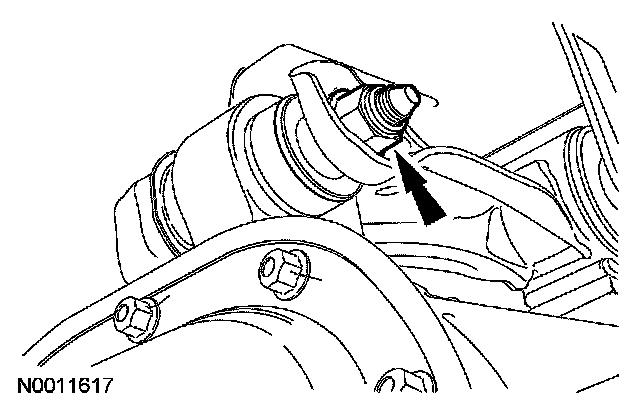

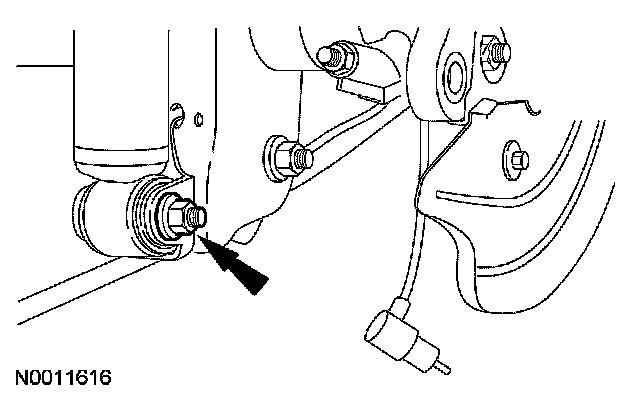

10. Remove and discard the shock absorber nuts and shock absorber bolts.
^ To install, tighten to 115 Nm (85 ft. lbs.).

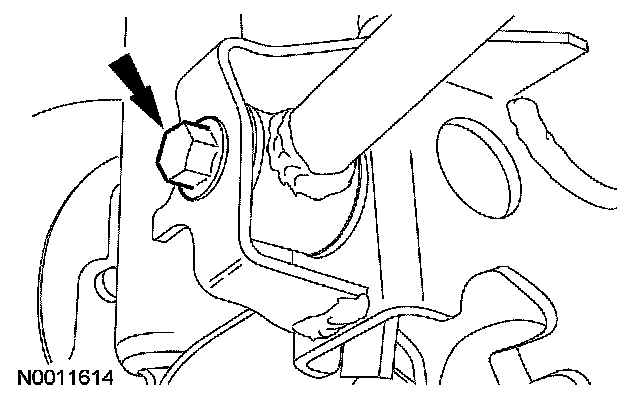

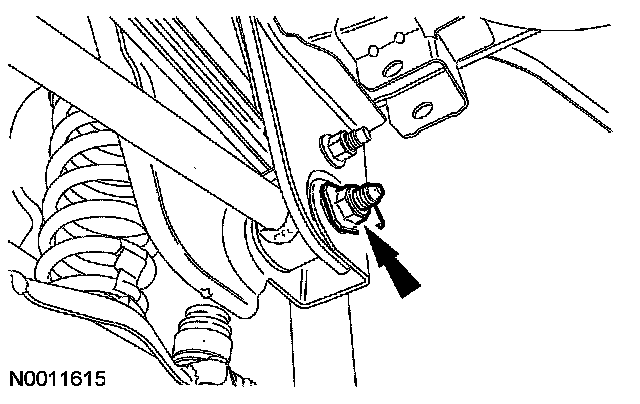

11. Remove and discard the upper suspension arm nut and tipper suspension arm bolt.
^ To install, tighten to 175 Nm (129 ft. lbs.).





12. Lower the axle slightly, and remove the springs.





13. Remove and discard the trailing arm nuts and trailing arm bolts.
^ To install, tighten to 175 Nm (129 ft. lbs.).





14. Disconnect the lower suspension arms from the axle housing.





15. Lower the axle housing from the vehicle.

16. CAUTION: Raise the suspension to the reference marks on the rear shock absorbers before tightening the suspension fasteners.

To install, reverse the removal procedure.
^ Install new fasteners as listed:
^ Rear support brace bolts.
^ Upper support brace bolts.
^ Front support brace bolts.
^ Trackbar bolts.
^ Trackbar flag nuts.
^ Shock absorber bolts.
^ Shock absorber nuts.
^ Upper suspension arm bolts.
^ Upper suspension arm nuts.
^ Trailing arm bolts.
^ Trailing arm nuts.
