Removal and Installation

Pilot Bearing

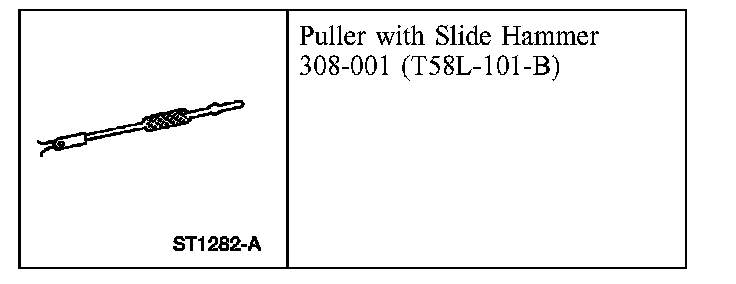

Special Tool(s)

Removal
1. Remove the clutch disc and the clutch pressure plate.

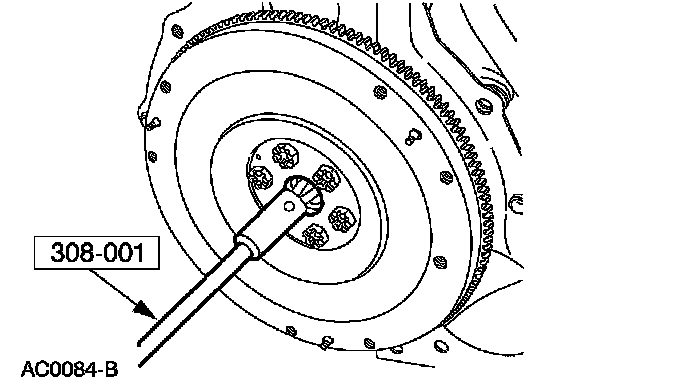

2. Using the special tool, remove the pilot bearing.

Installation

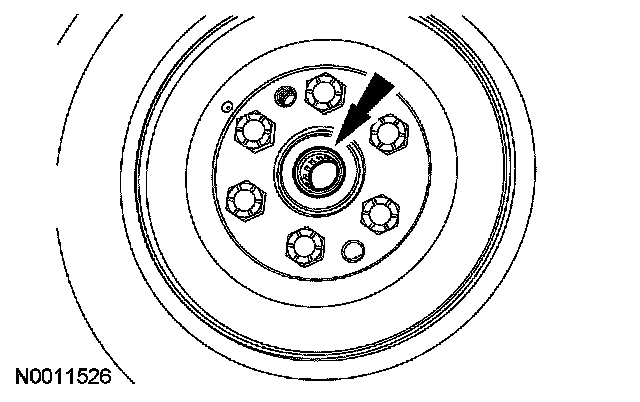

1. Position the pilot bearing to the crankshaft, using a suitable driver, install the pilot bearing.
2. Install the clutch disc and the clutch pressure plate.
