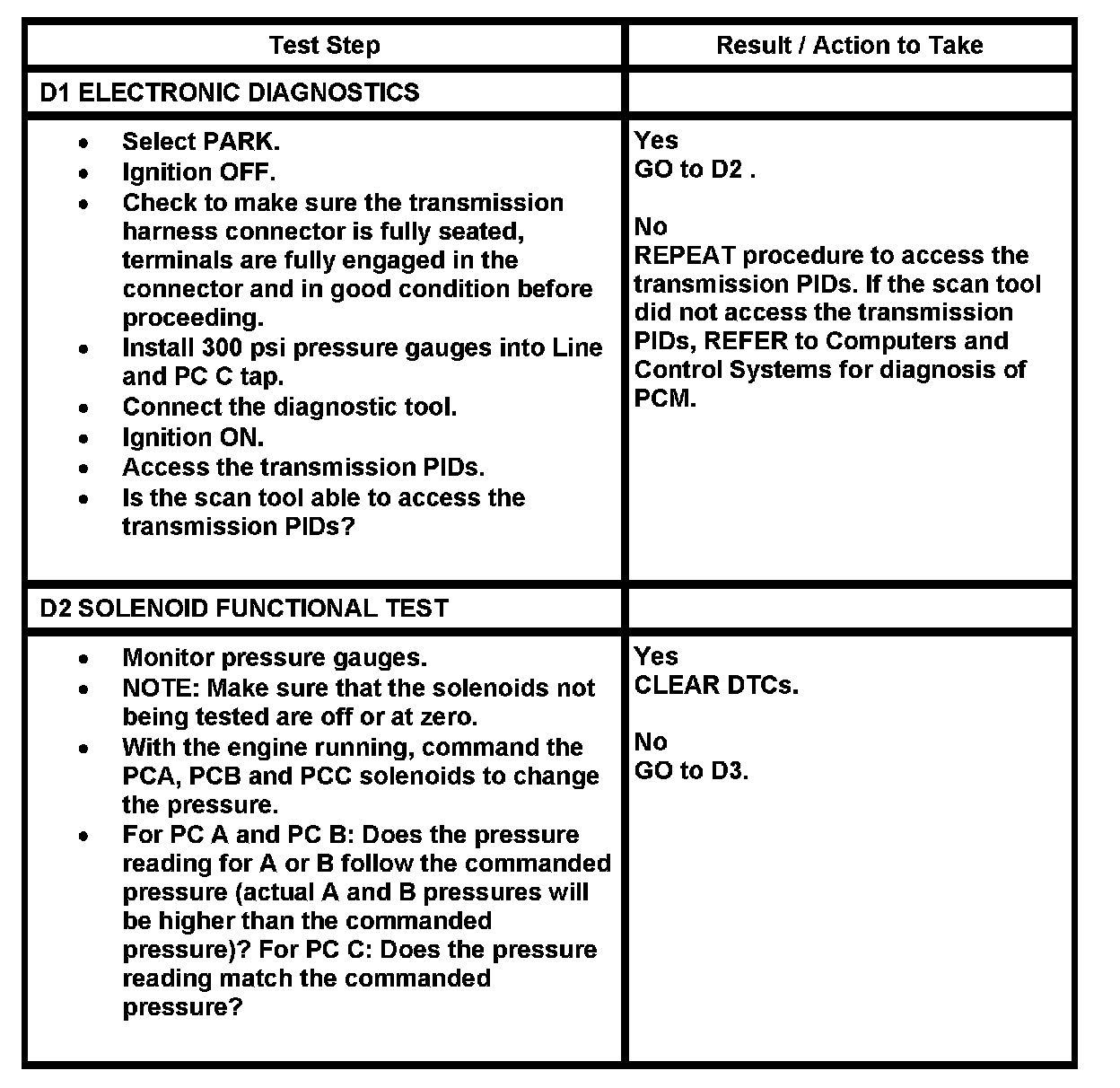

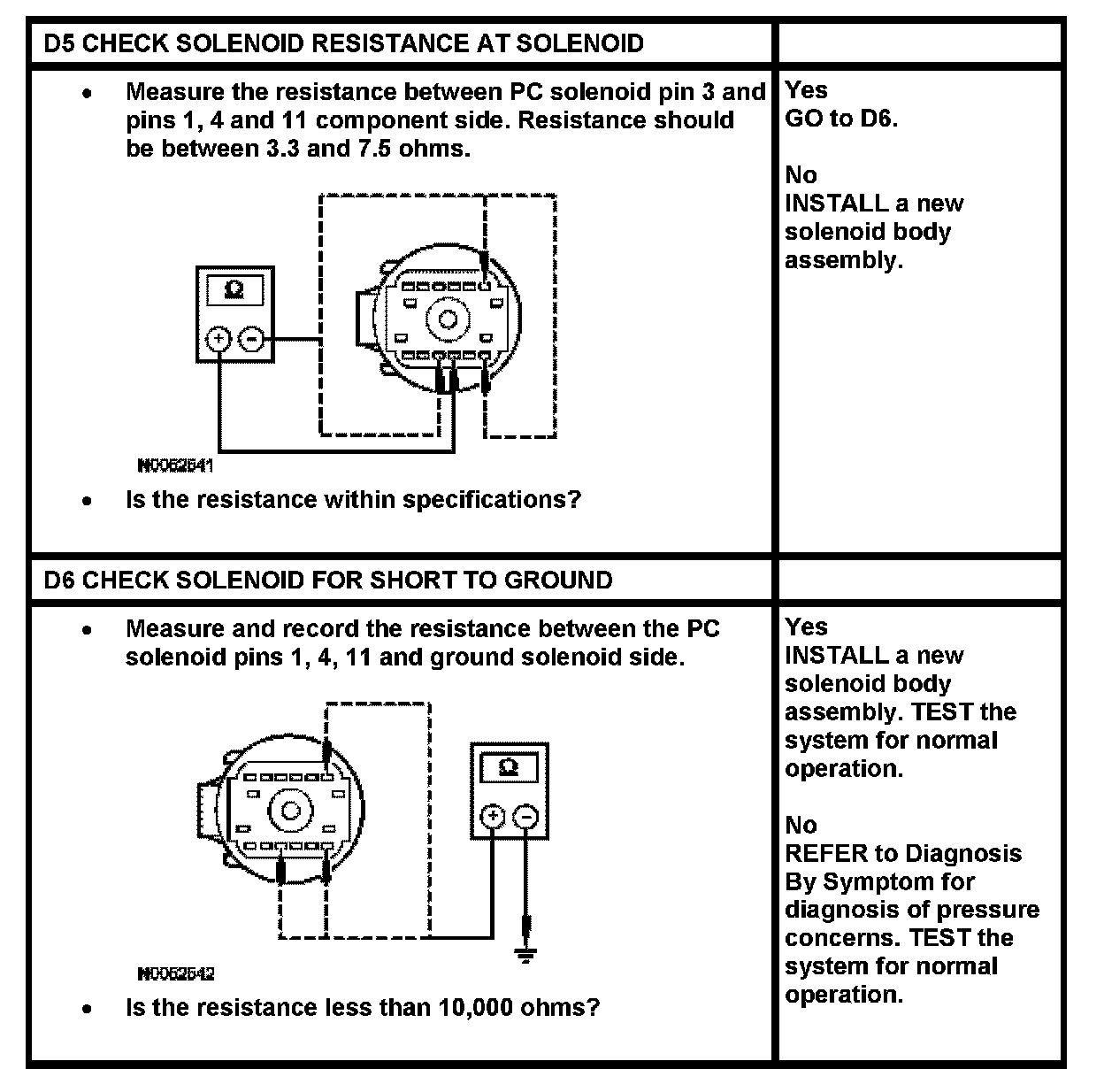

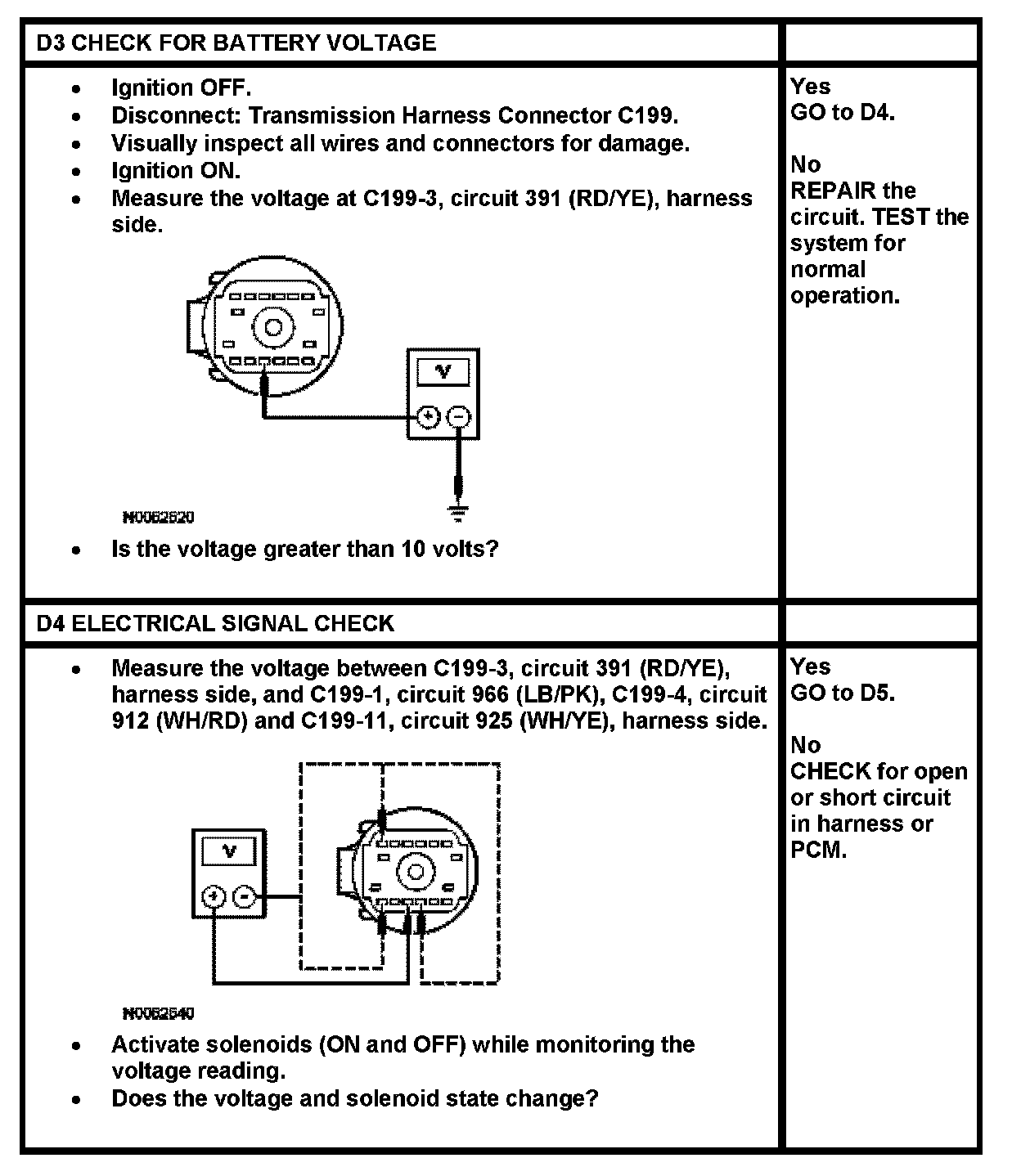

Test D: Pressure Control (PC) Solenoids (PCA, PCB, PCC)

Pinpoint Test D: Pressure Control (PC) Solenoids (PCA, PCB, PCC)

Note: Refer to the Transmission Vehicle Harness Connector illustration.

Note: Read and record all DTCs. All digital transmission range (TR) sensor and vehicle speed sensor (VSS) DTCs must be repaired before entering output state control (OSC).
