Test C: Digital Transmission Range (TR) Sensor




Pinpoint Test C: Digital Transmission Range (TR) Sensor

Note: Refer to the Digital Transmission Range (TR) Sensor Connector illustration and Digital Transmission Range (TR) Sensor Diagnosis Chart.

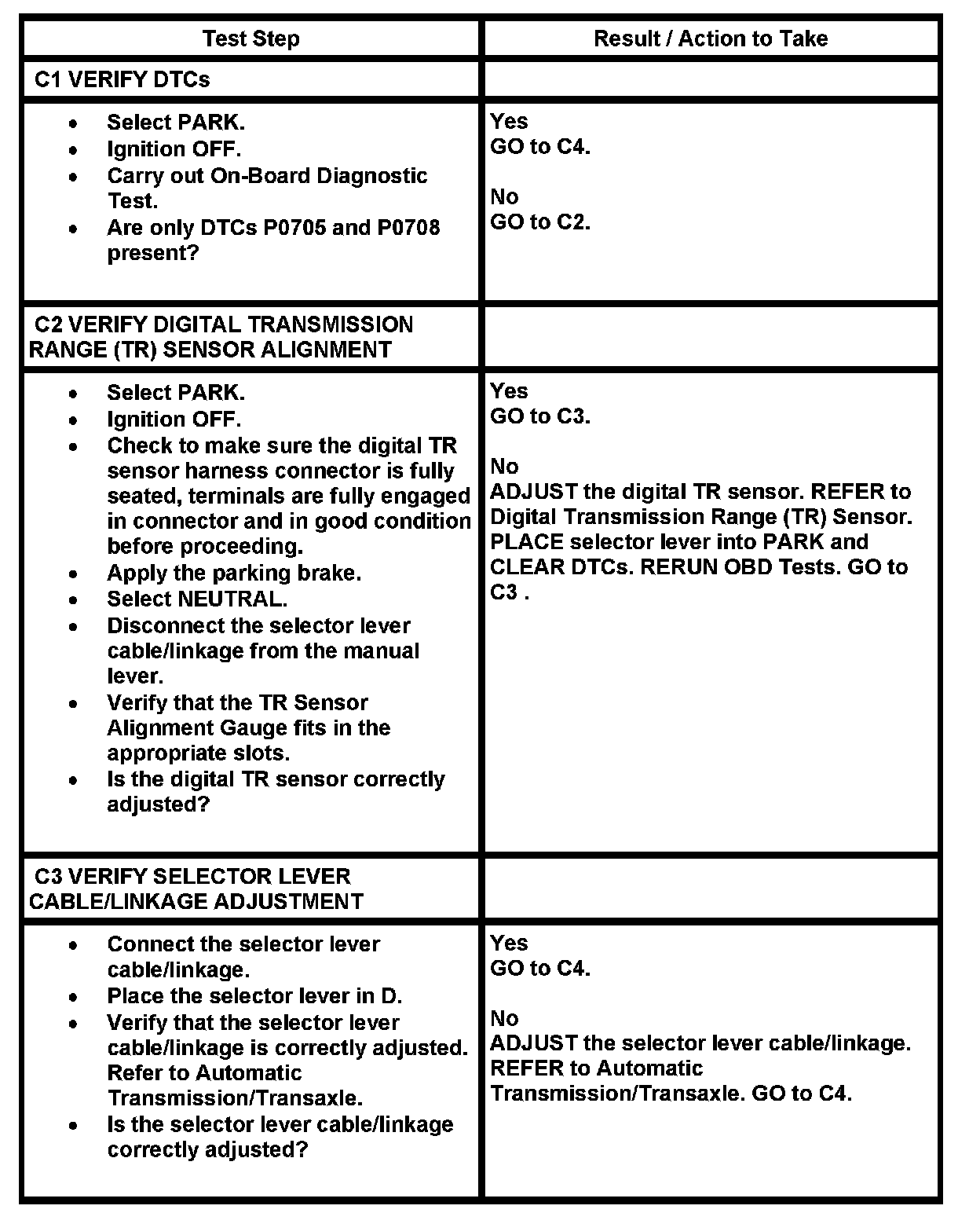

Pinpoint Test C1-C3:

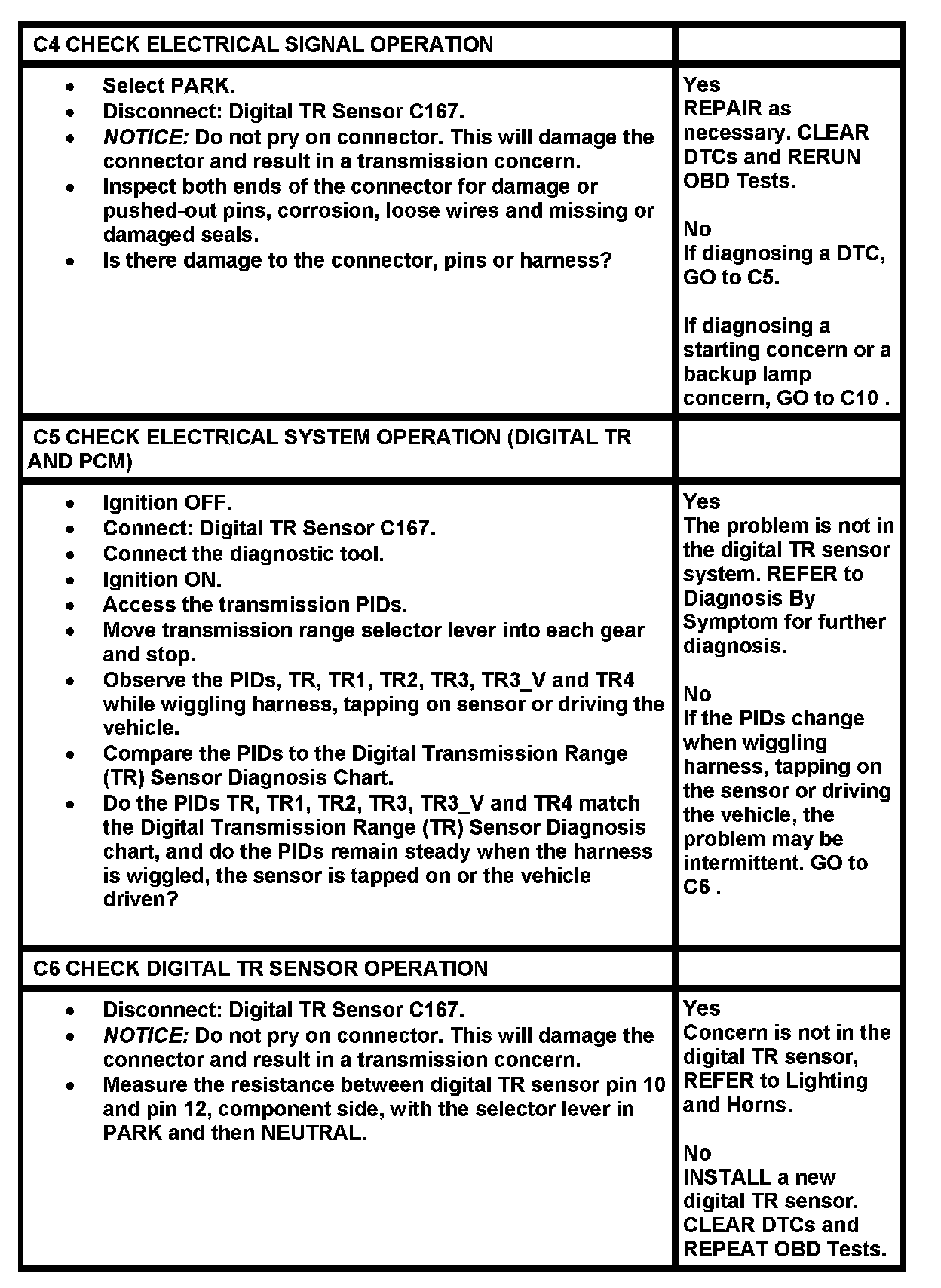

Pinpoint Test C4-C6:

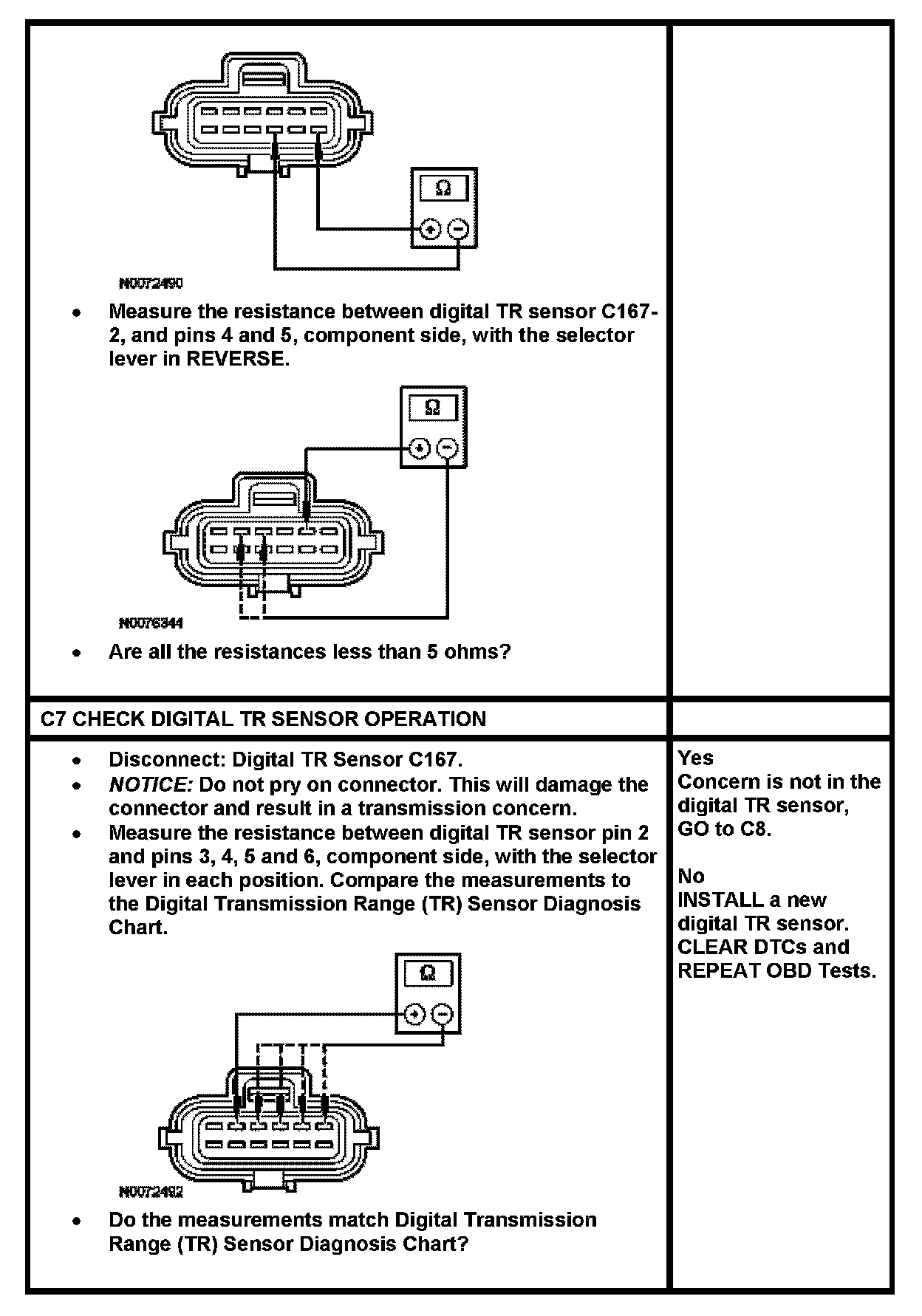

Pinpoint Test C6 & C7:

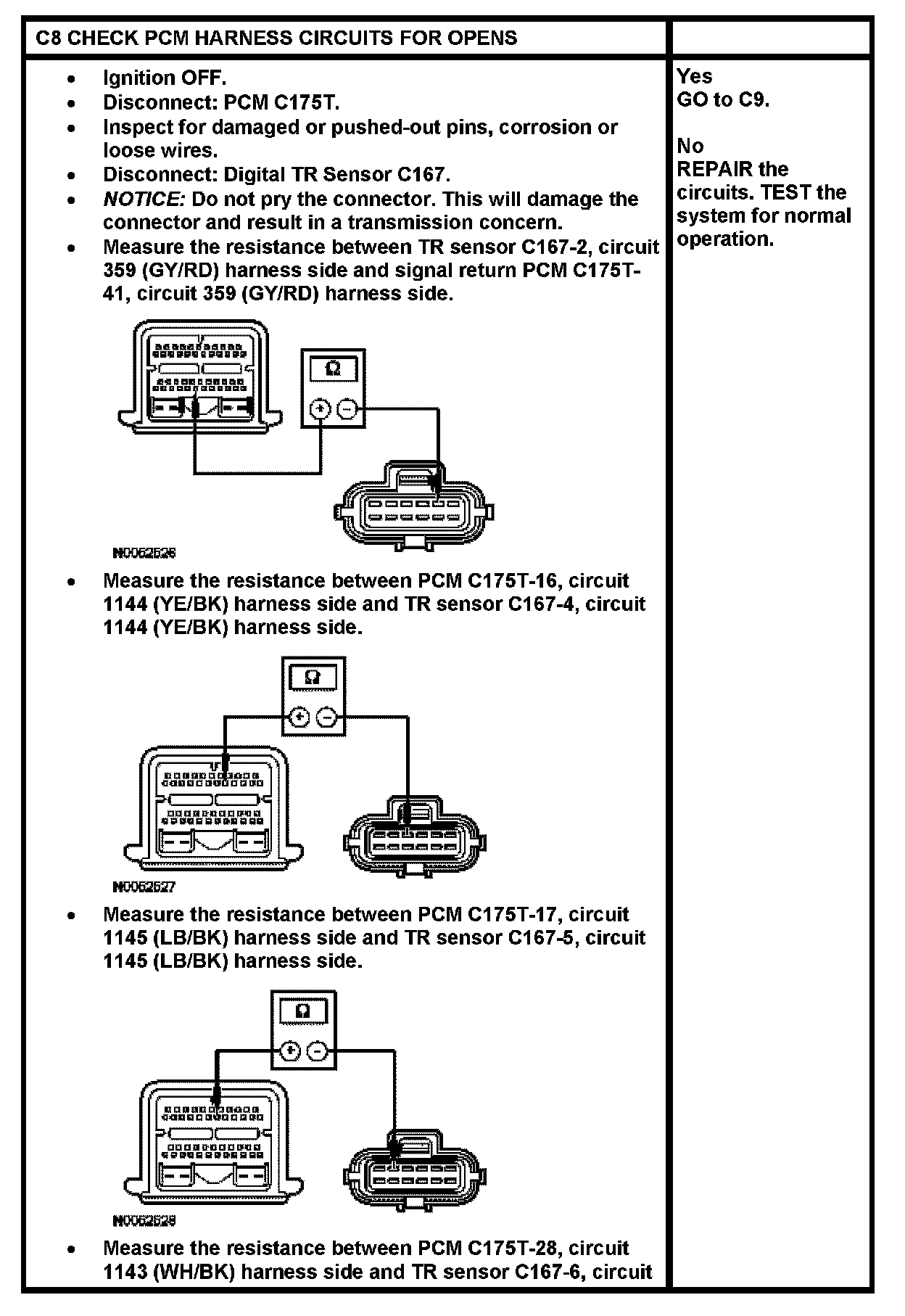

Pinpoint Test C8:

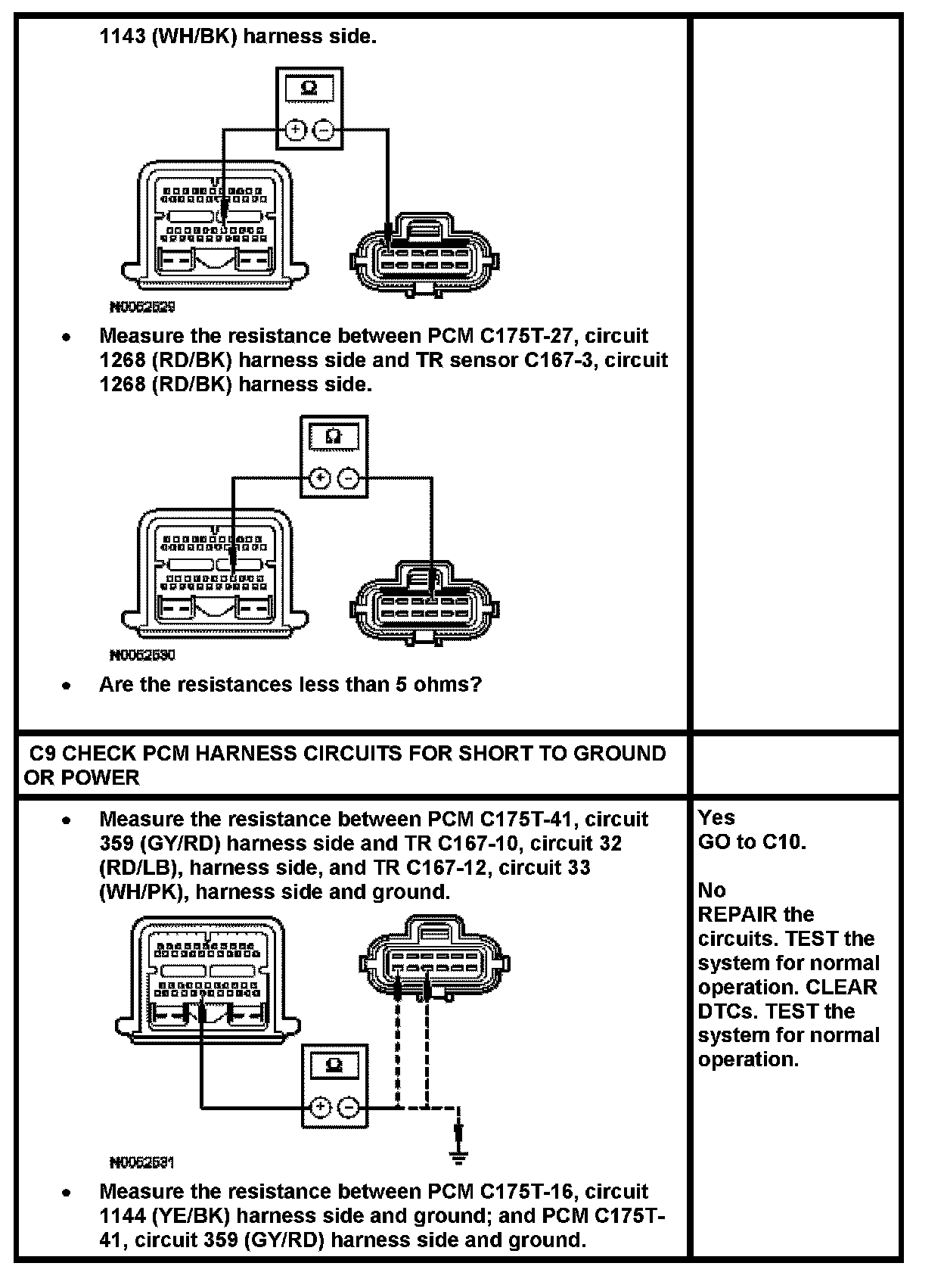

Pinpoint Test C8 & C9:

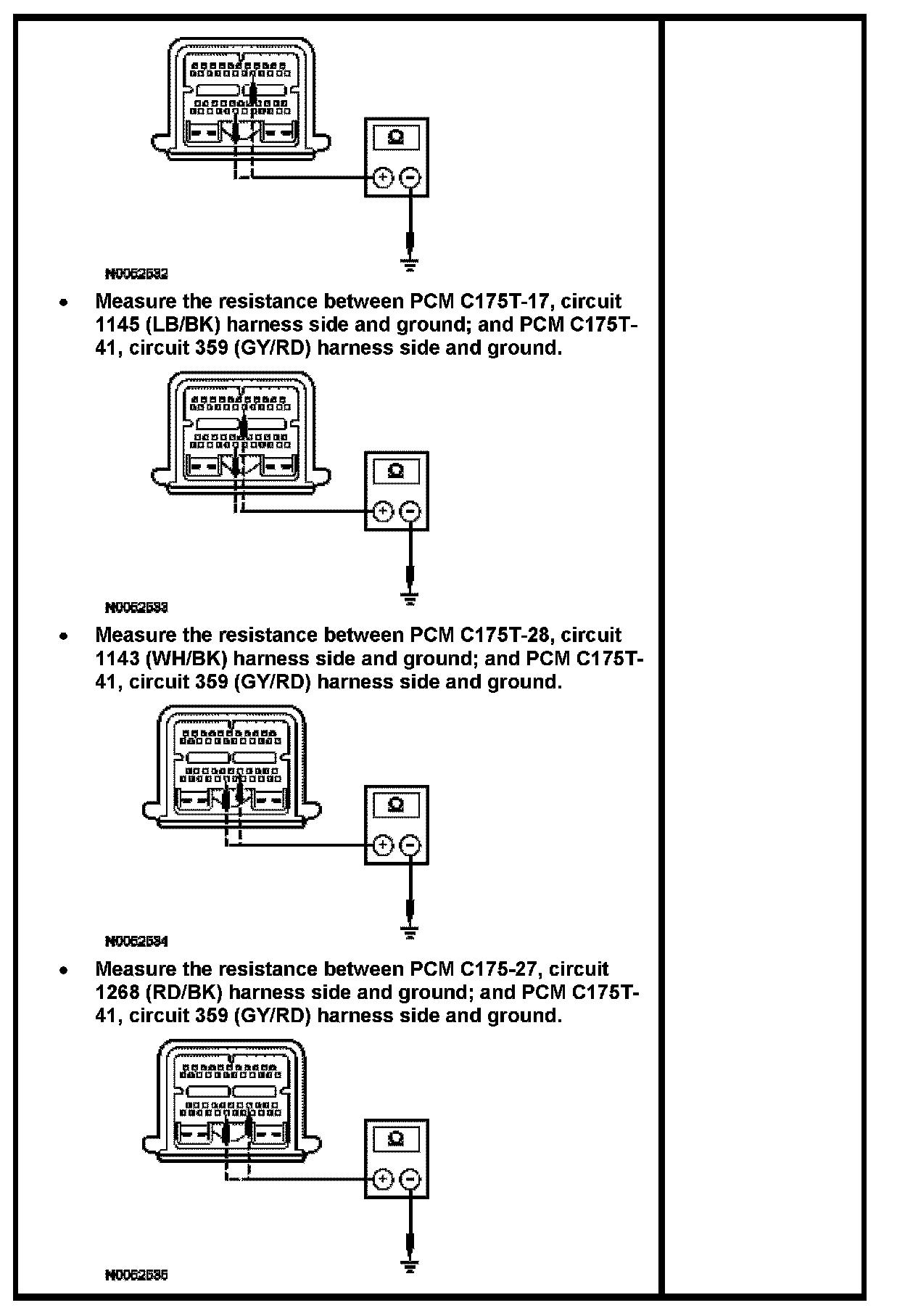

Pinpoint Test C9:

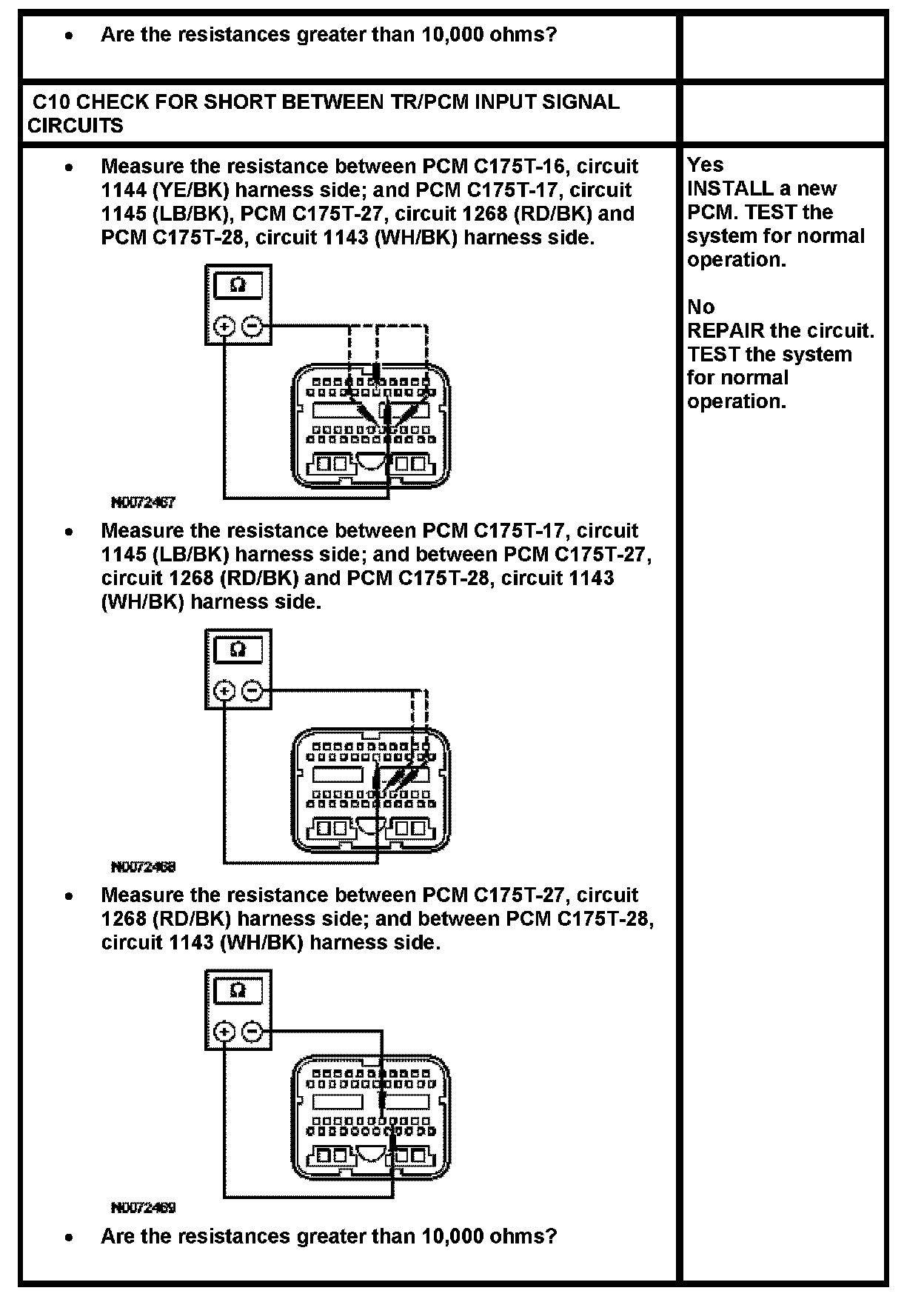

Pinpoint Test C9 & C10:
