Test A: Shift And Torque Converter Clutch (TCC) Solenoids

Pinpoint Test A: Shift and Torque Converter Clutch (TCC) Solenoids

Note: Refer to the Transmission Vehicle Harness Connector illustration.

Note: Read and record all DTCs. All digital transmission range (TR) sensor and vehicle speed (VSS) DTCs must be repaired before entering output state control (OSC).

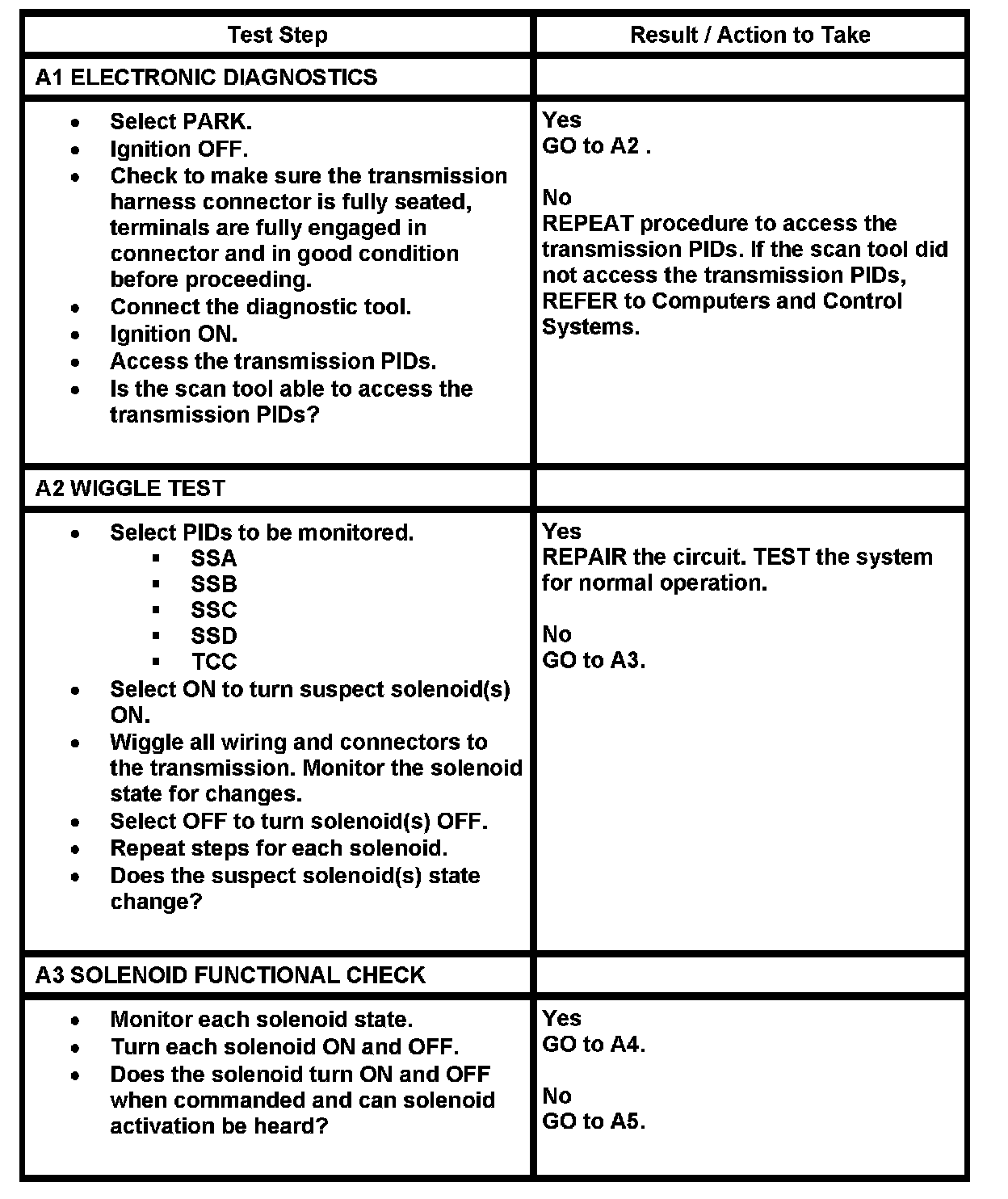

Pinpoint Test A1-A3:

Pinpoint Test A4 & A5:

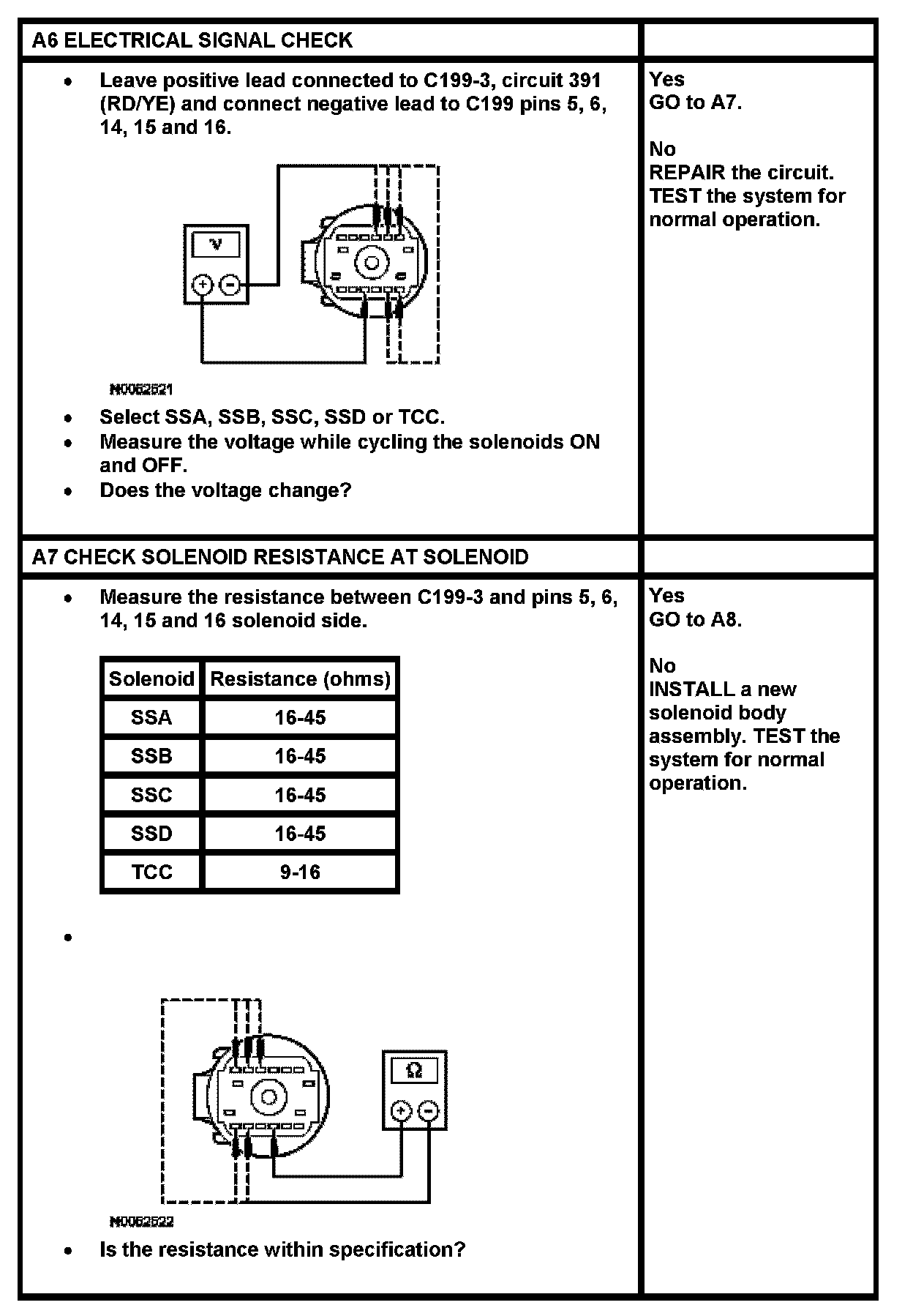

Pinpoint Test A6 & A7:

Pinpoint Test A8:
