Test B: The Shift Control Is Out of Correct Gear Relationship
Test B: The Shift Control Is Out of Correct Gear Relationship
PINPOINT TEST B: THE SHIFT CONTROL IS OUT OF CORRECT GEAR RELATIONSHIP

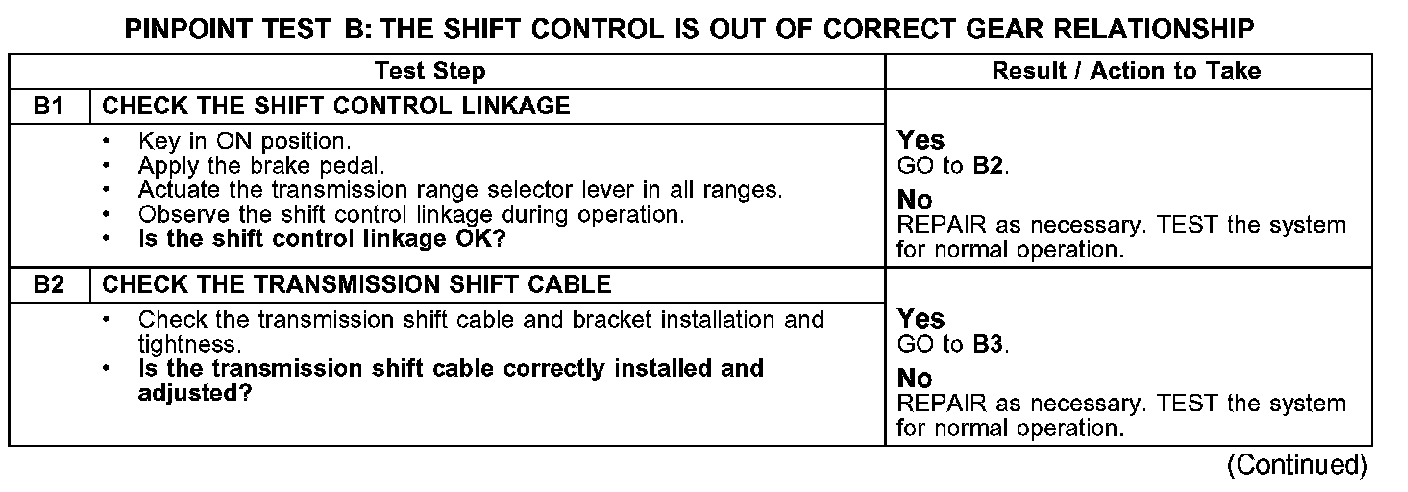

B1-B2:

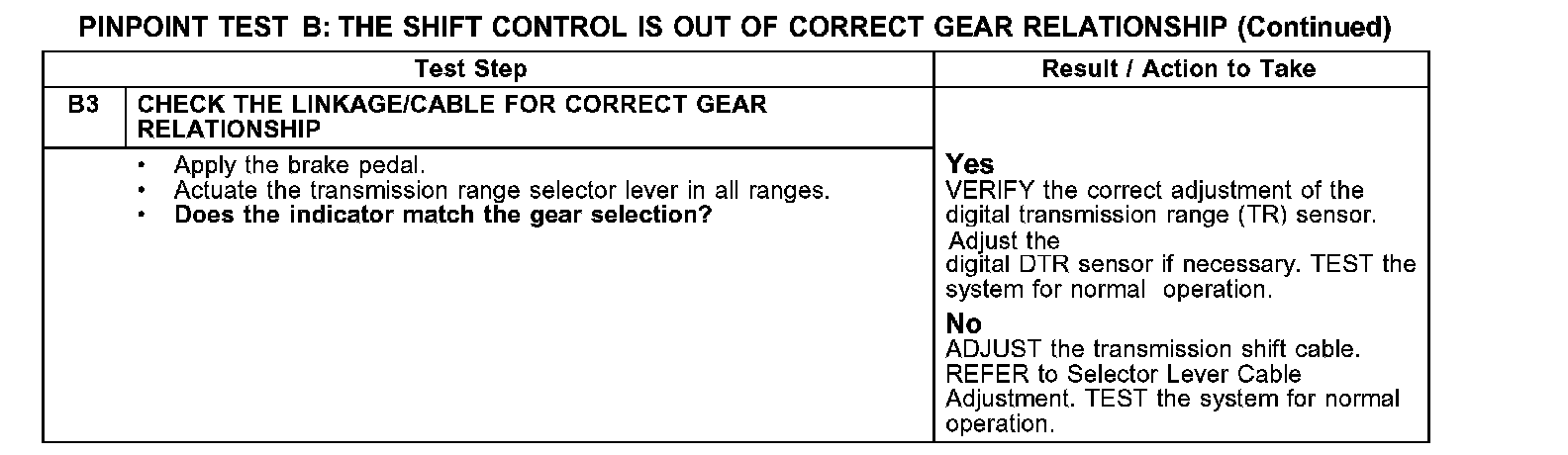

B3:
