Selector Lever

Selector Lever
Removal

Removal:

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle/Application and ID

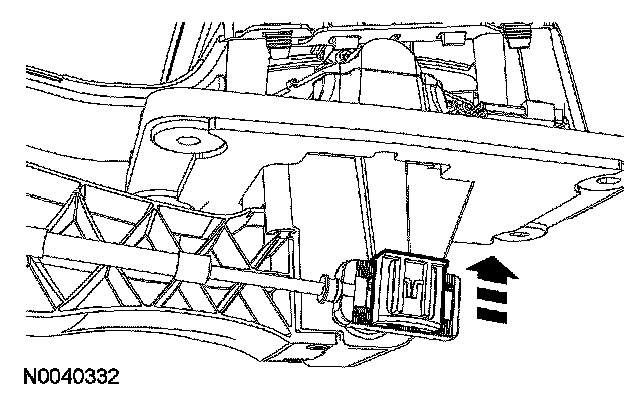

2. Remove the selector lever cable from the selector lever.

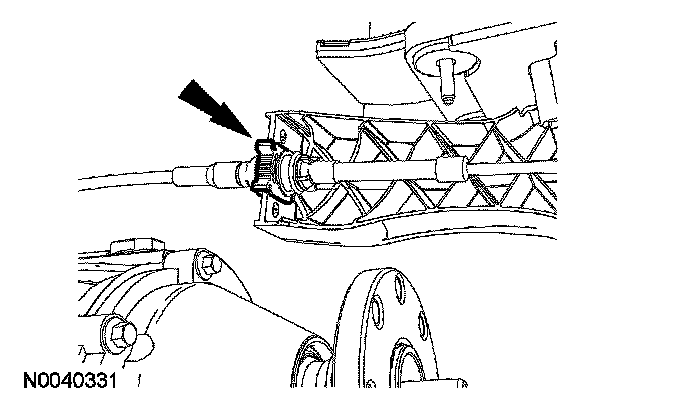

3. Remove the selector lever cable from the bracket and discard the clip.

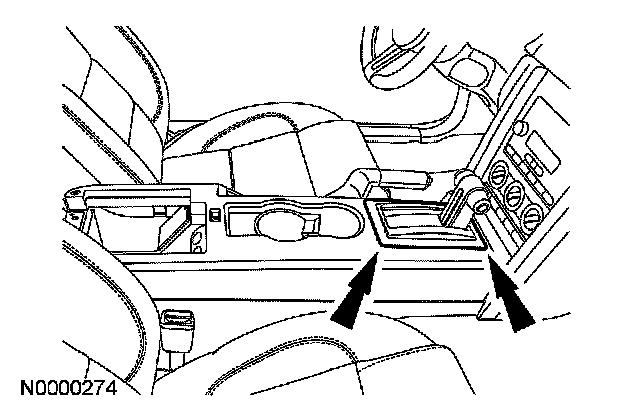

4. Remove the center console selector lever trim.





5. Remove the 2 screws and the center console top finish panel.





6. NOTE: Passenger side center console kick panel shown, driver side similar.

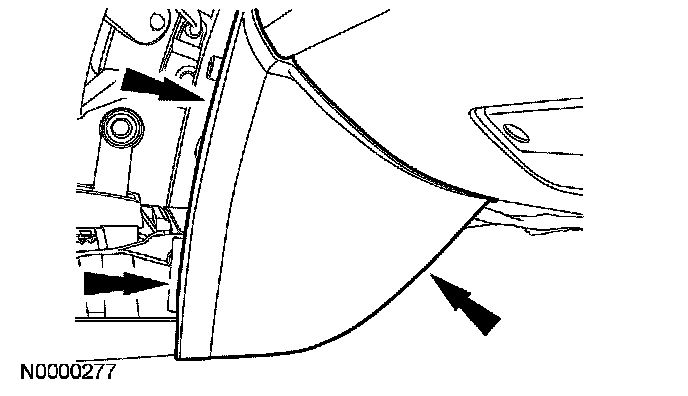

Remove the driver and passenger center console kick panels.

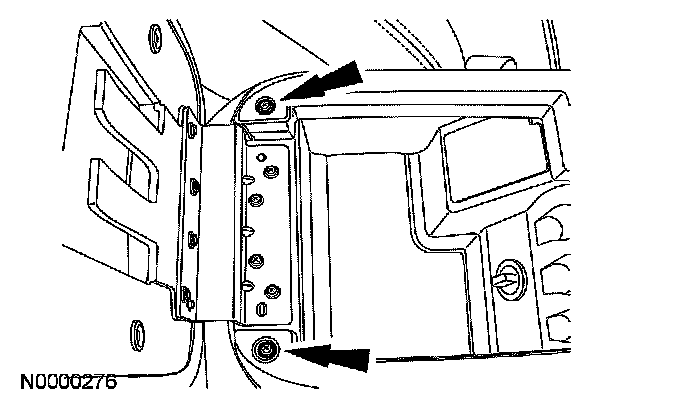

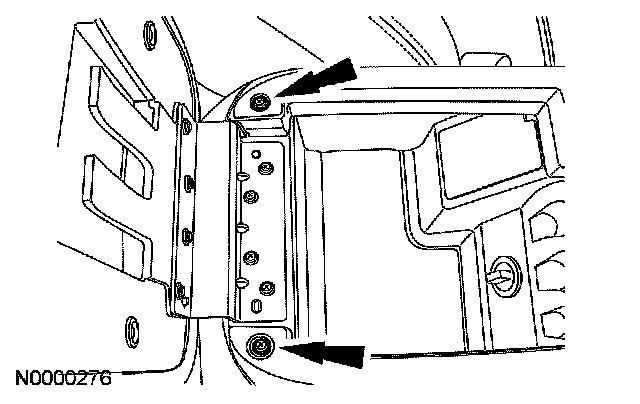

7. Remove 4 screws and position the center console base aside.

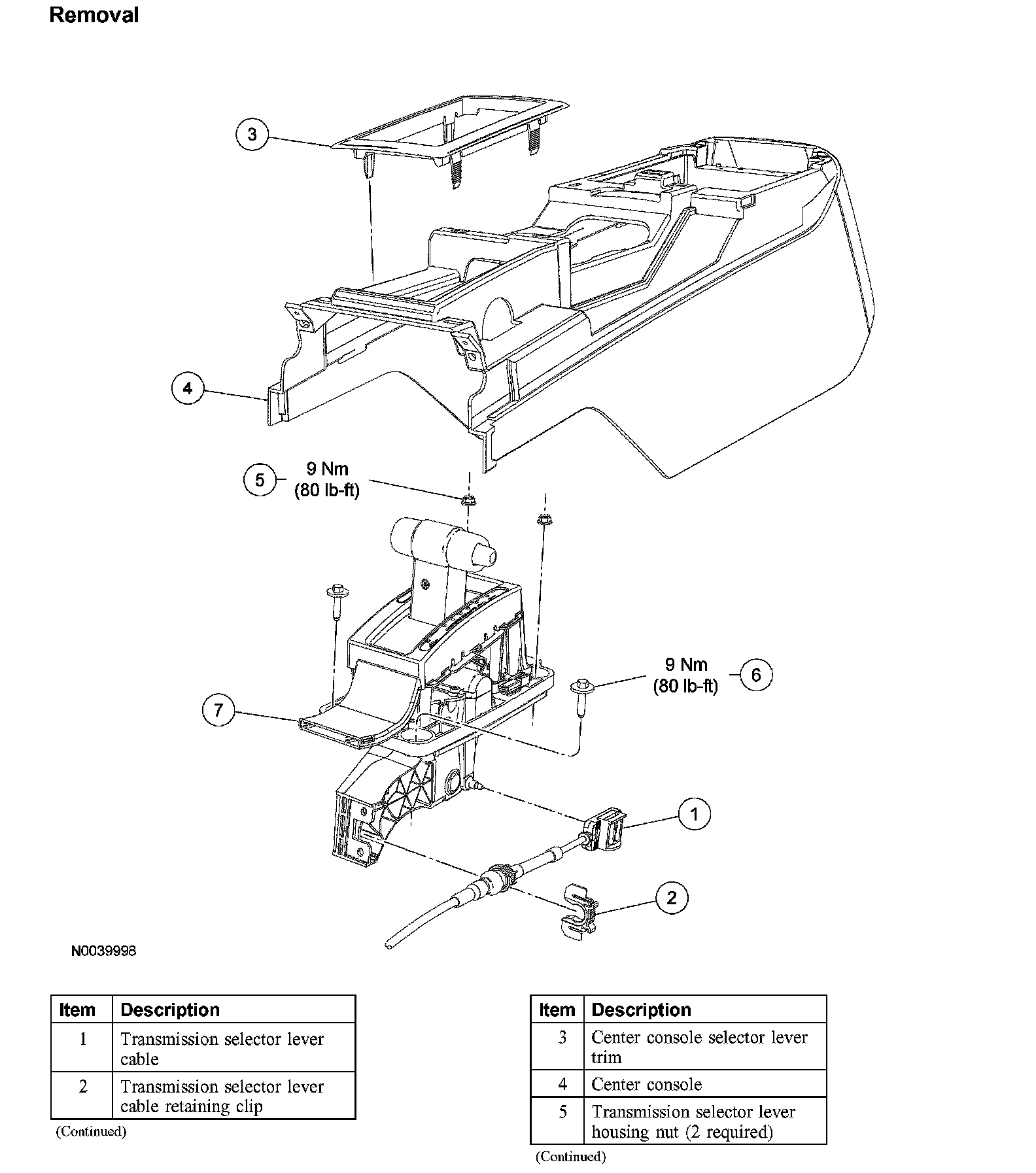

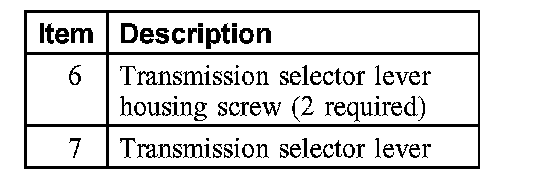

8. Disconnect the electrical connector, remove the 2 nuts and the 2 screws. Carefully lift the transmission selector lever assembly from the vehicle.





Installation
1. Position the transmission selector lever assembly in the vehicle and install the 2 nuts and the 2 screws.
^ Tighten to 9 Nm (80 inch lbs.).





2. Position the center console base and install the 4 screws.
3. Install the driver and passenger side center console kick panels.





4. Install the center console top finish panel and the 2 screws.





5. Install the center console selector lever trim.





6. NOTE: It is necessary to install a new plastic clip prior to installation.

Install the selector lever cable into the bracket.





7. Install the selector lever cable onto the selector lever and lock the shift cable adjustment lock.





8. Verify the shift cable is adjusted correctly.
