Test A: The Ignition Switch Is Inoperative

Pinpoint Test A: The Ignition Switch Is Inoperative

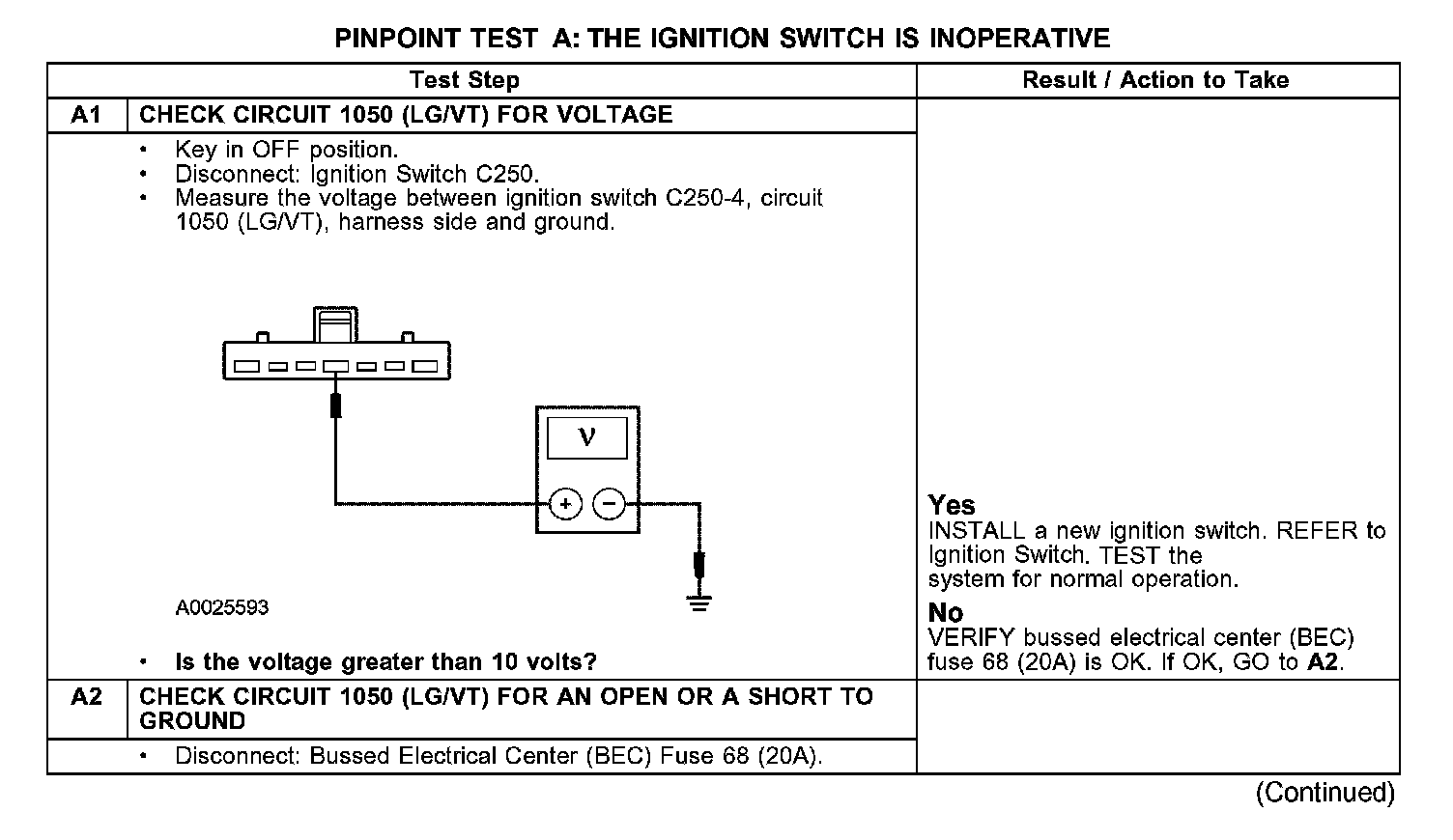

A1-A2:

A2:

Normal Operation
The ignition switch receives overload protected B+ voltage from the bussed electrical center (BEC) fuse 68 (20A) through circuit 1050 (LG/VT). The ignition switch has 4 possible states:
^ OFF
^ ACC
^ RUN
^ START

Possible Causes
^ Fuse
^ Circuit 1050 (LG/VT) open or short to ground
^ Ignition switch
^ BEC
