Test F: The Generator Is Noisy

PINPOINT TEST F: THE GENERATOR IS NOISY

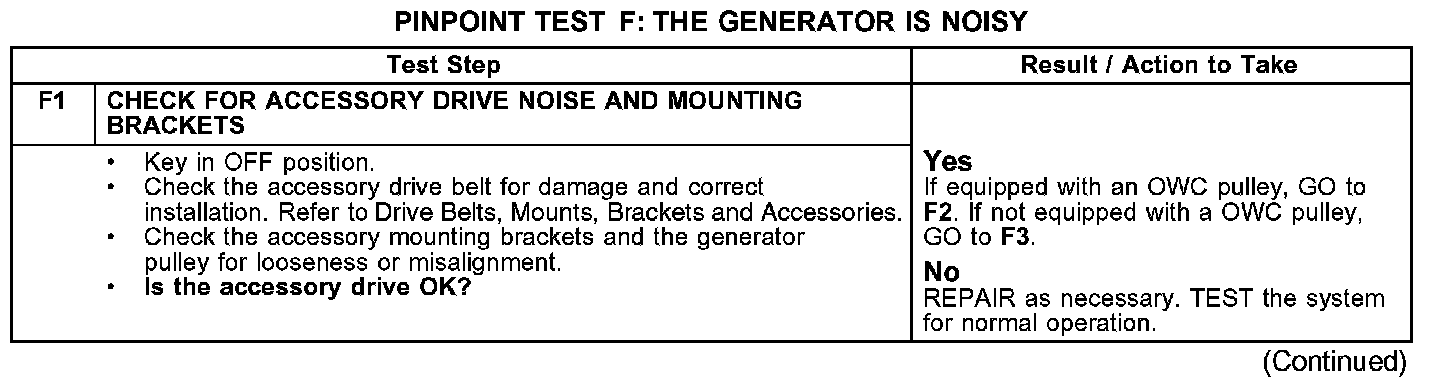

F1:

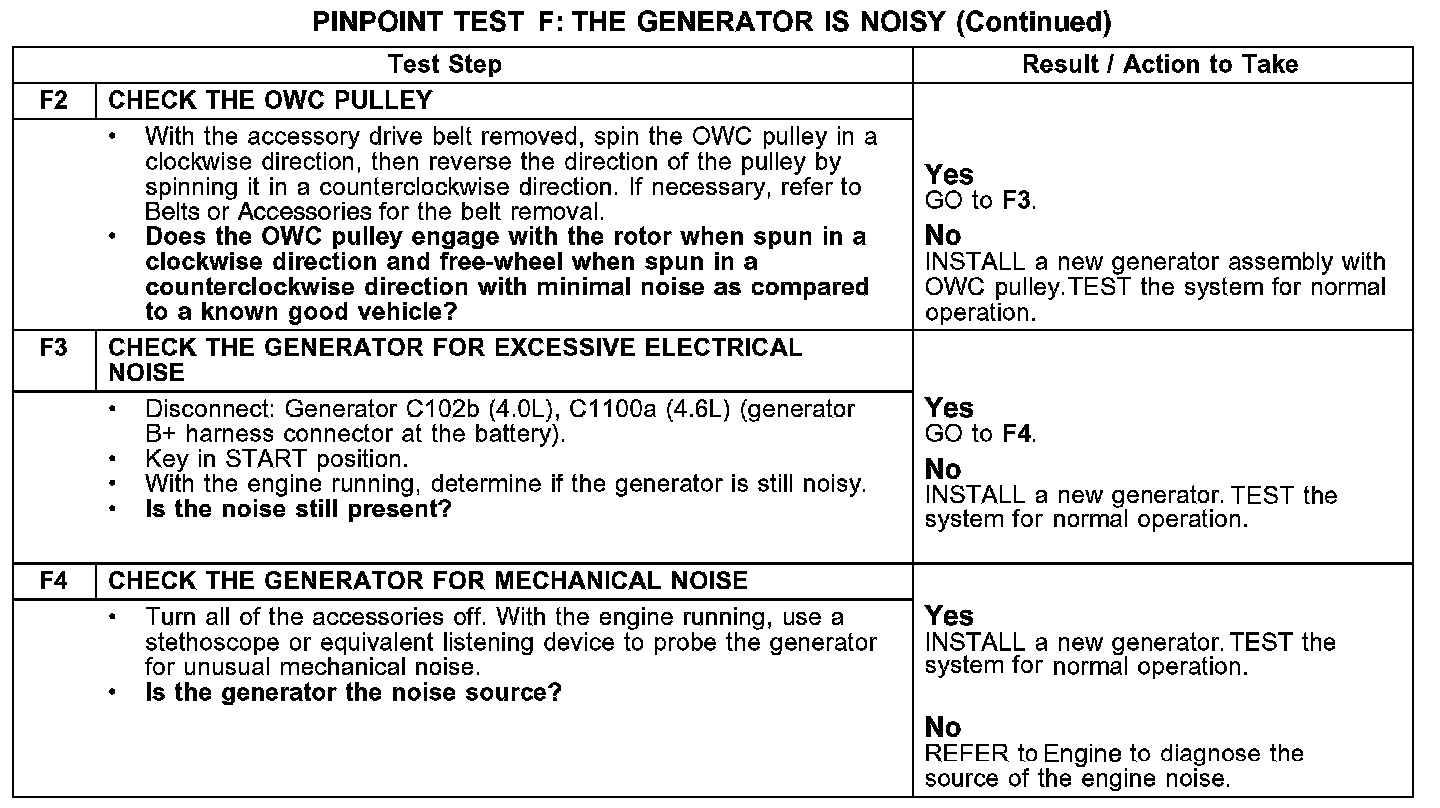

F2-F4:

Normal Operation
The generator is belt-driven by the engine accessory drive system.

Possible Causes
- loose bolts/brackets
- drive belt - one-way-clutch (OWC) pulley
- generator/pulley
