Ford 8.8-Inch Ring Gear Rear Drive Axle/Differential

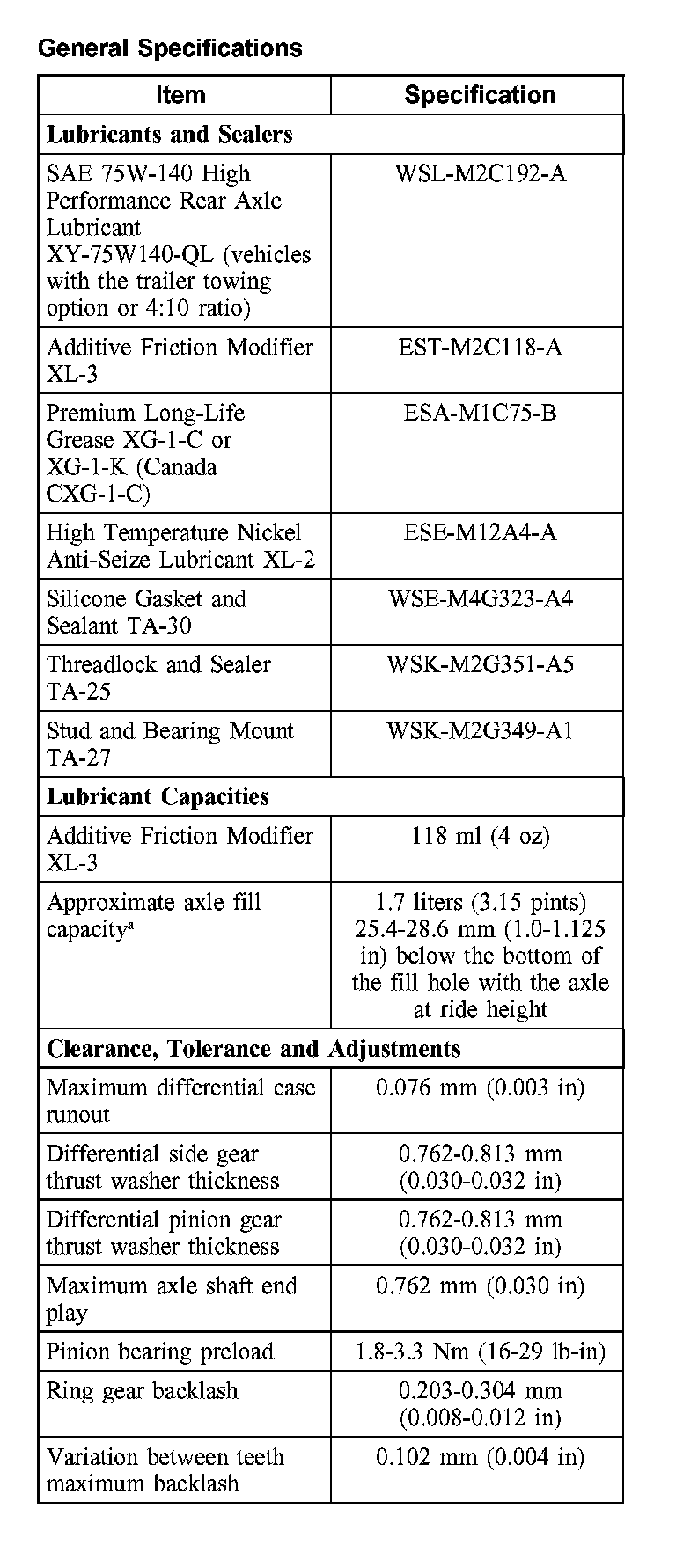

General Specifications:

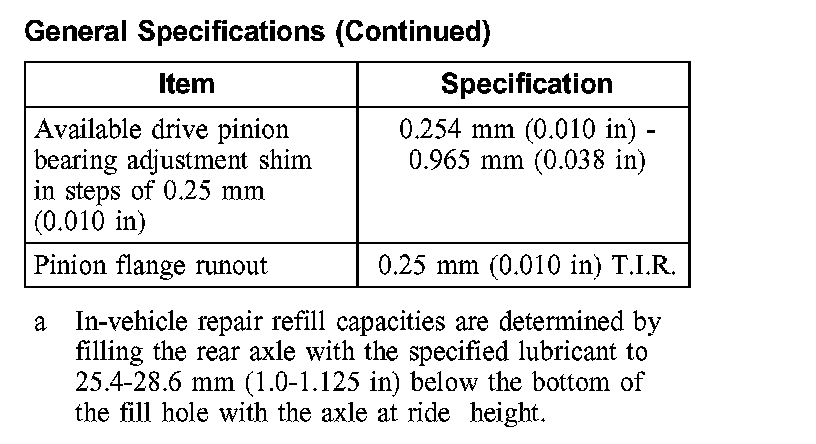

General Specifications:

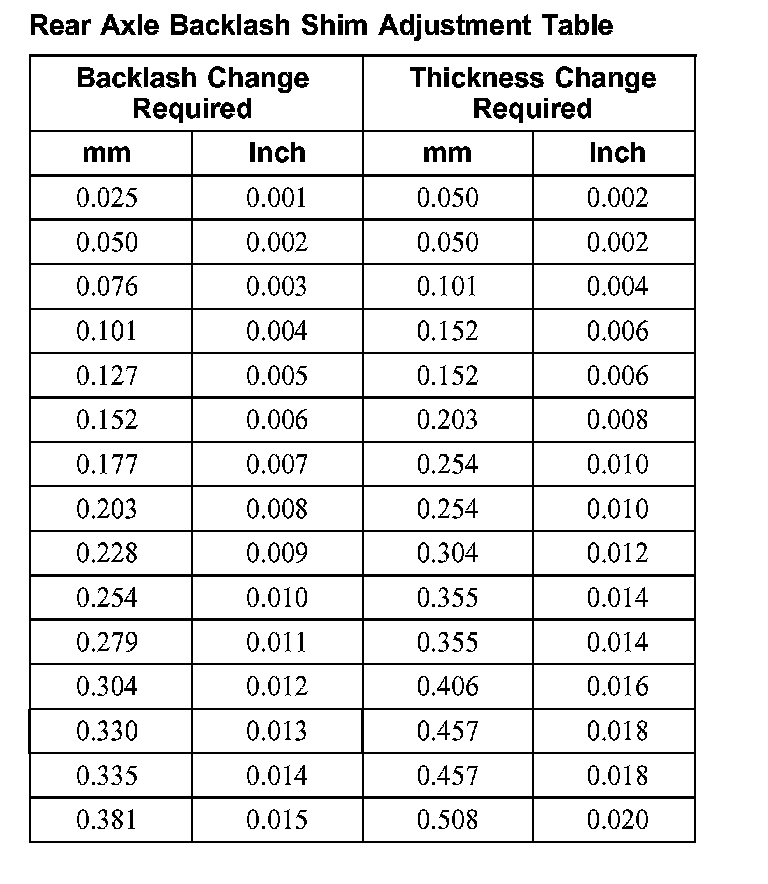

Rear Axle Backlash Shim Adjustment Table:

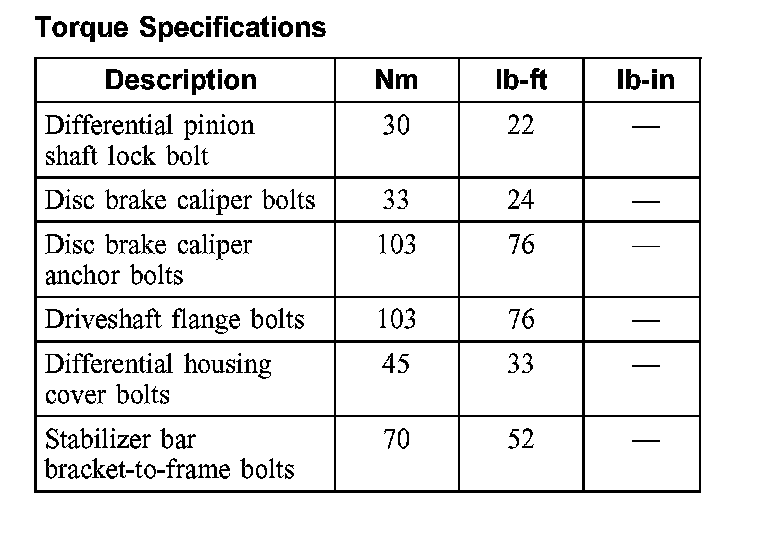

Torque Specifications:



Torque Specifications:
