Home >> Ford >> 2006 >> Mustang V6-4.0L VIN N >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> Automatic Transaxle/Transmission >> Selective Snap Rings

Selective Snap Rings

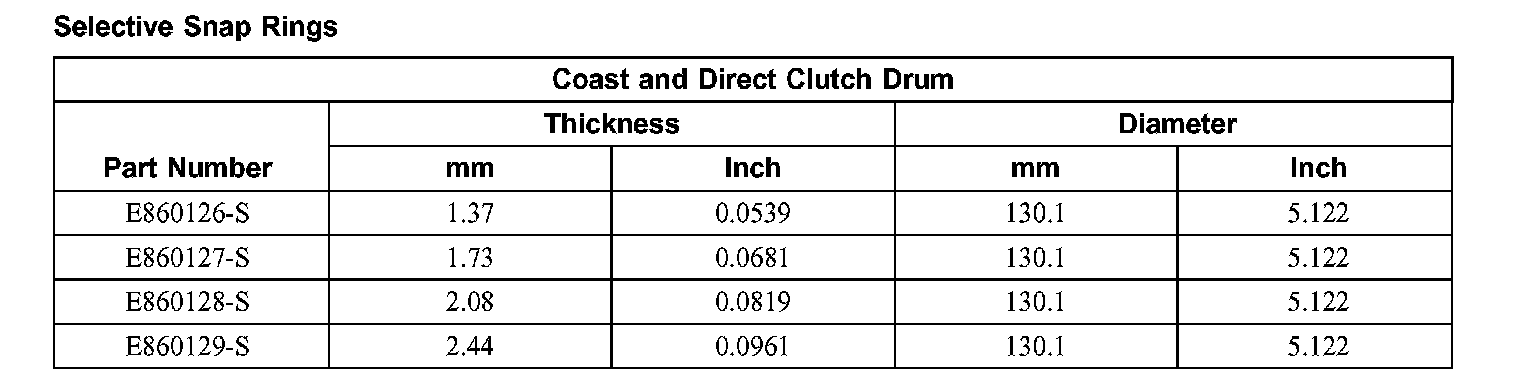

Selective Snap Rings:

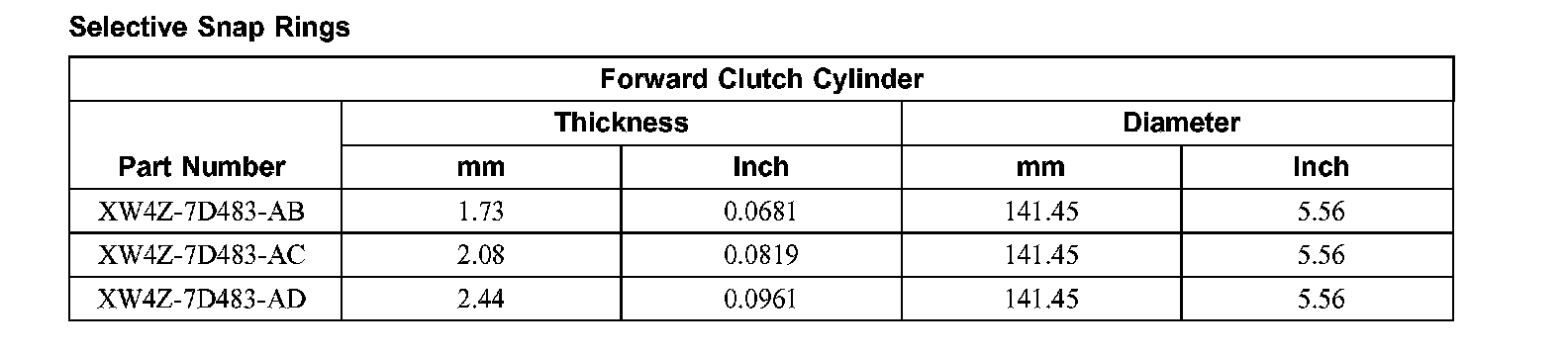

Selective Snap Rings:
