Brake Light Switch: Service and Repair

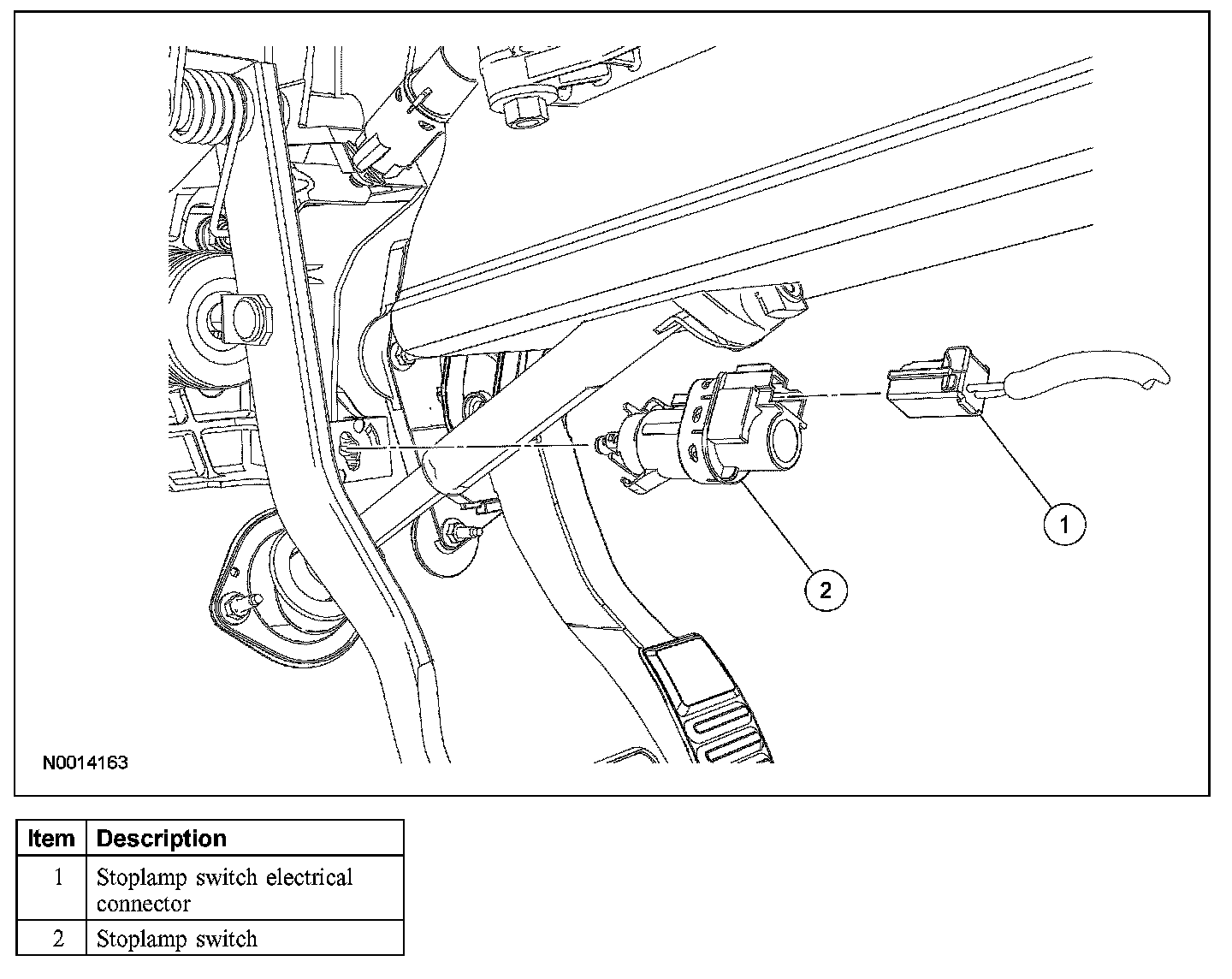

STOPLAMP SWITCH







Removal and Installation

1. CAUTION: Do not press the brake pedal when removing or installing the stoplamp switch or damage to the switch will occur.

Disconnect the stoplamp switch electrical connector.

2. Rotate the stoplamp switch counterclockwise 45 degrees and remove it.

3. NOTE: The stoplamp switch is self-adjusting. Do not press the brake pedal during installation. Initial installation of the stoplamp switch allows for one adjustment. If additional adjustments are necessary, install a new stoplamp switch

To install, reverse the removal procedure.
