Fuel Pump Control Unit: Service and Repair

FUEL PUMP DRIVER MODULE (FPDM)

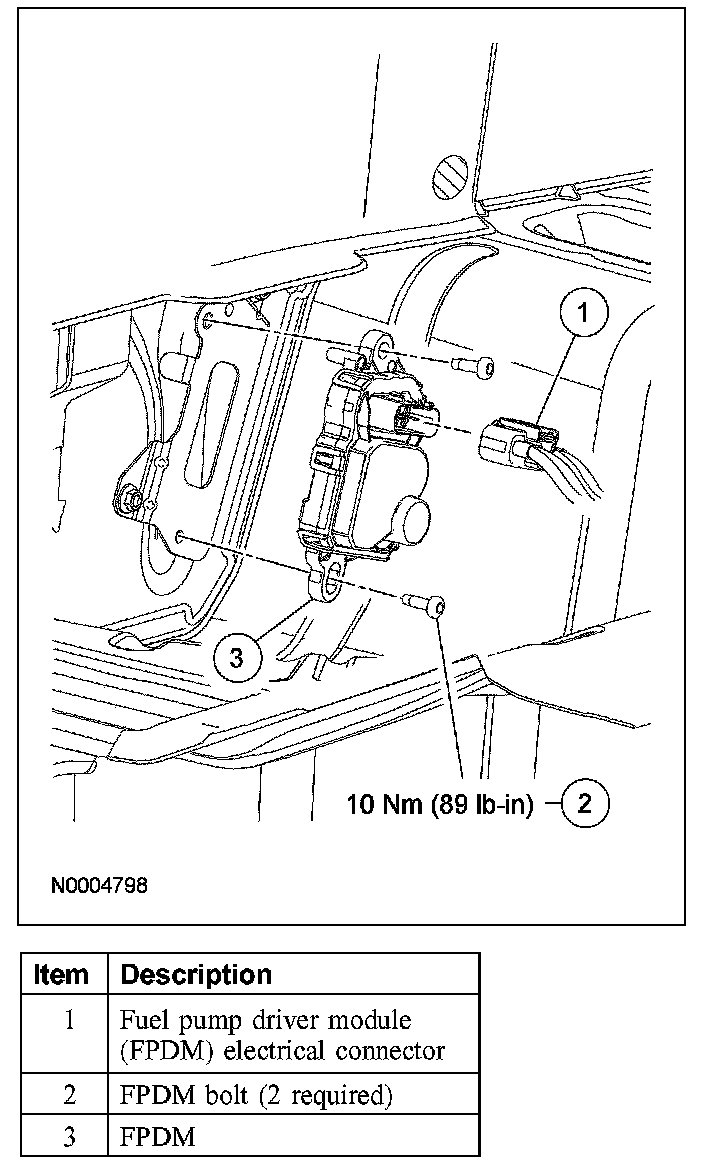

Removal and Installation

NOTE: The fuel pump driver module (FPDM) is located in the spare tire stowage compartment.

1. Disconnect the battery ground cable.
2. Disconnect the FPDM electrical connector.
3. Remove the 2 bolts and the FPDM.
- To install, tighten to 10 Nm (89 lb-in).

4. To install, reverse the removal procedure.
